Help annotating a drawing of a partfrom a STEP/.stp file

  • December 12, 2017
  • 1 reply
  • 2805 views

Hello ptc community,



I'm new to CREO, please bear with me. I have been assigned the task of taking a file in 3D STEP format (.stp) and creating and engineering product drawing with appropriate annotations.



If I attempt to create a drawing directly from the .stp file, the resulting drawing is completely blank. After doing some research, I learned that I needed to open the file as a part and manually assign a front face. Once I assigned a front face, I was able to create a drawing from the part and place the part onto the drawing.

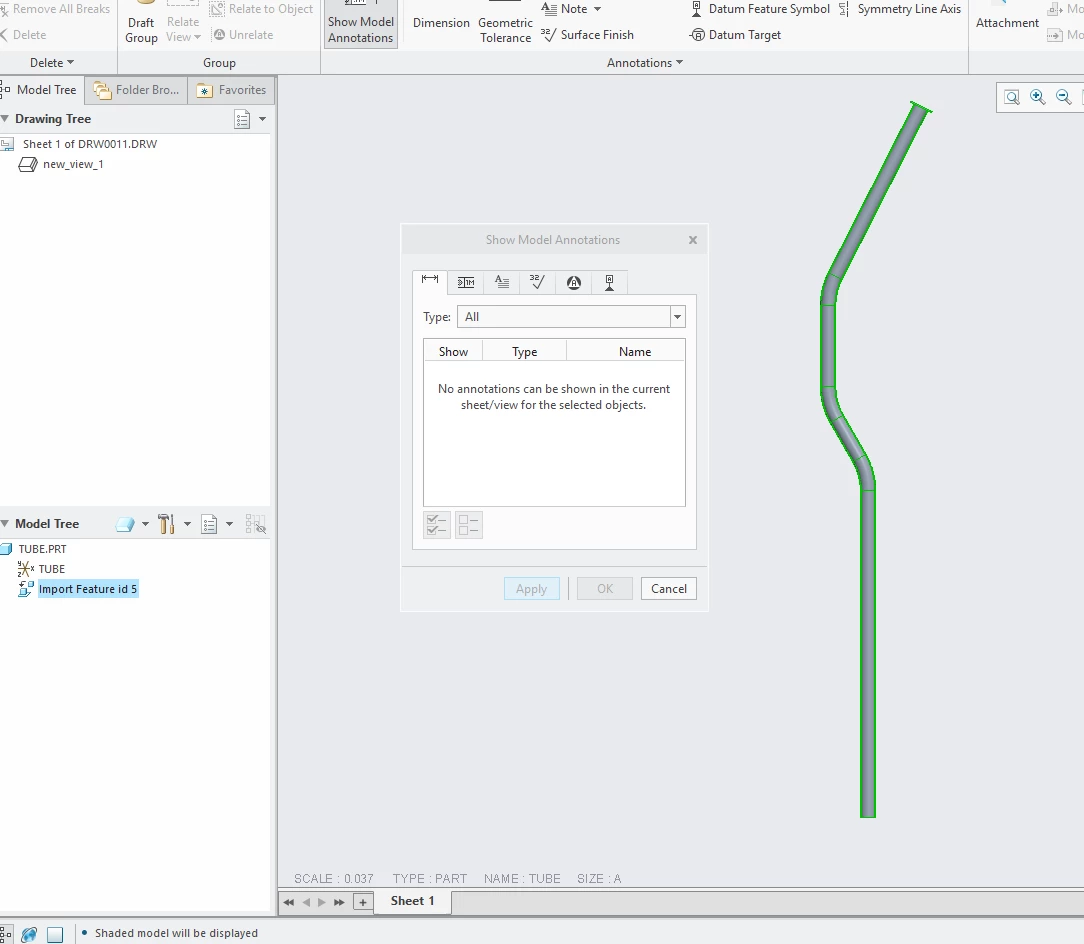

Here's the problem. When I attempt to add the necessary angle/length dimensions (Annotate --> Show Model Annotations) it states:

"No annotations can be shown in the current sheet/view for the selected objects" (see attached image)



How can I amend this? I appreciate any advice, thank you in advance.

Best answer by BenLoosli

You have to manually create the dimensions for any imported body.

Shown dimensions are only available on a parametrically designed model done in Creo.

1 reply

B
23-Emerald III
BenLoosli23-Emerald IIIAnswer
23-Emerald III
December 12, 2017

You have to manually create the dimensions for any imported body.

Shown dimensions are only available on a parametrically designed model done in Creo.
