Help! Can't sweep an intersect curve?

Forum|Forum|9 years ago
October 1, 2016
20 replies
7658 views

Hi!

I'm in a situation where i want to model a torsion spring with an intersect curve for a special reason.

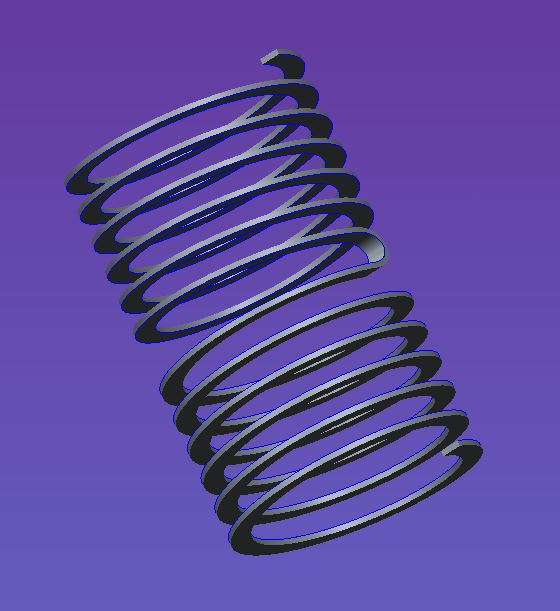

But i can't make CREO complete the sweep feature, only if i choose: Automatic under Horizontal/Vertical control and that ends up in a twisted cross section through the curve which is not want i want to achieve.

Can anybody tell me whats wrong? I have attached the part file with this message.

Best regards

Nicolai
