Hide table frame lines on drawing

  • April 29, 2015
  • 2 replies
  • 4330 views

Hi community, is there a chance to hide the lines, espacially the outer ones, of a table on a drawing? Backound: On our drawings we mostly have a bunch of annotatitions.

Since the formatting options within a note are pretty small, I´d like use a table to show annotations. Unfortunatly i do not know how to hide outer frame lines of the table.

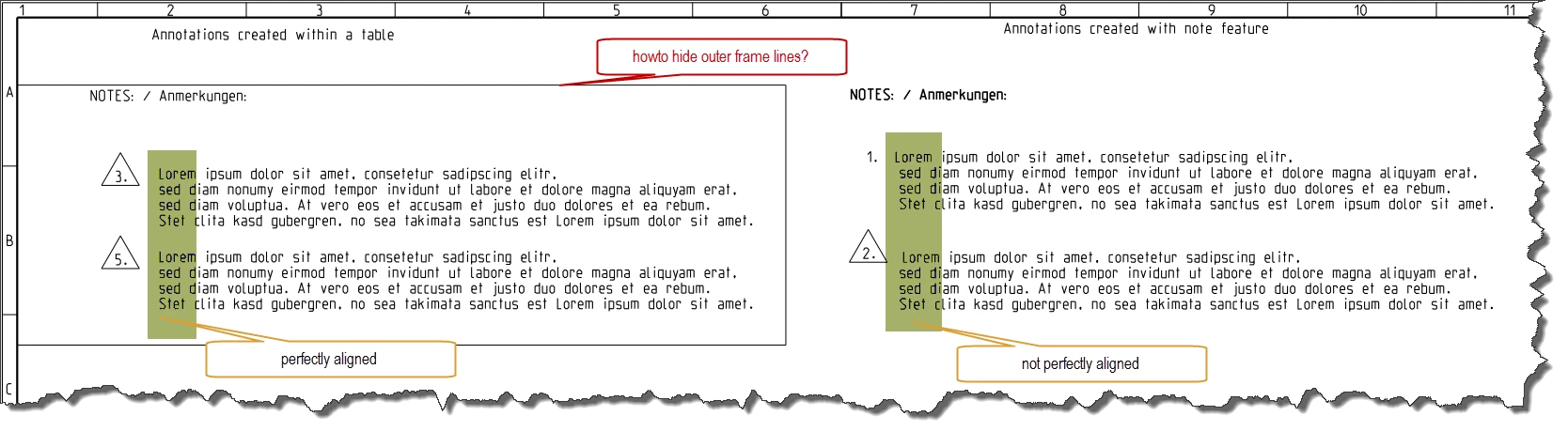

Attachment: 29-04-2015 09-00-03.png

Regards from Berlin, Danny


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by TomD.inPDX

    This keeps coming up...

    If you have the privilege, please vote :Allow blanking Table outline border

    2 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    April 29, 2015

    Danny,

    unfortunatelly, outer frame lines of the table cannot be hidden.

    When you create table containing one cell, then you can set its height/width to 0.01 mm. This causes, that outer border is "invisible".

    Martin Hanak

    T
    TomD.inPDX17-PeridotAnswer
    17-Peridot
    April 29, 2015

    This keeps coming up...

    If you have the privilege, please vote :Allow blanking Table outline border
