How do i create a ramped semicircle?

  • April 6, 2018
  • 2 replies
  • 3715 views



Hey,

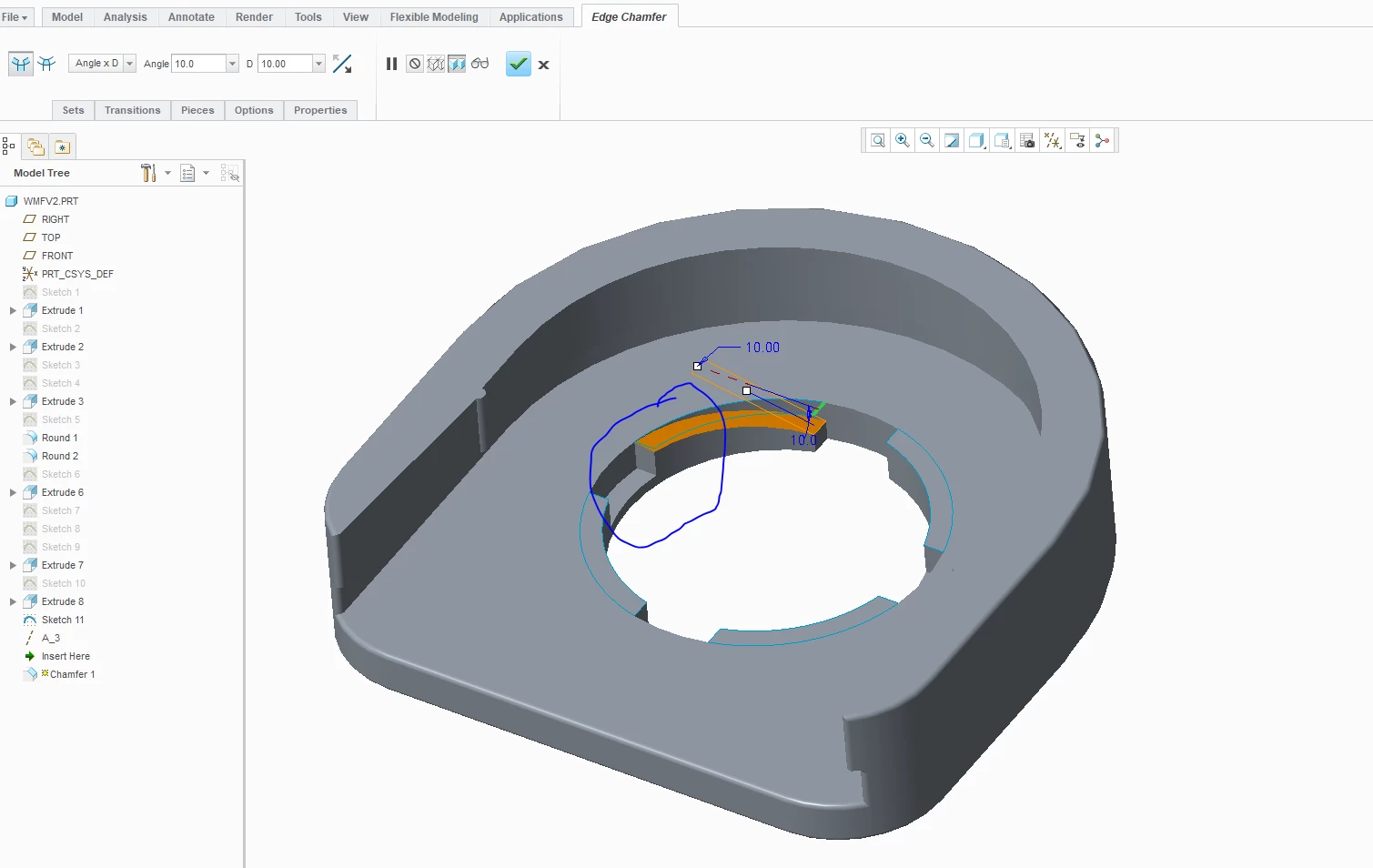

I'm trying to create a ramp around a circle as seen on my part below. However i used a chamfer, the issue is the ramp isnt square all the way around. (As seen in the circled section).



I need to create the ramp all the way around, the idea is that i have another part the connects into the hole and gets twisted and locks in at the end of the ramp into the slot.

i'm not the best at creo, but trying to learn the tricks.

Thanks



Best answer by John.Pryal

Hi, I think your whole approach to this is wrong. I would use a helical sweep or a simple sweep controlled with the 'trapar' function. See the attached model (Creo 3), hopefully it will help you.



Regards

John

2 replies

J
John.Pryal1-VisitorAnswer
1-Visitor
April 6, 2018

Hi, I think your whole approach to this is wrong. I would use a helical sweep or a simple sweep controlled with the 'trapar' function. See the attached model (Creo 3), hopefully it will help you.



Regards

John

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    April 6, 2018

    You could also sketch and project or wrap a curve onto the cylindrical surface to use as a trajectory.  This would give you the ability to make the start and stop ends tangent to the top surface and to a plane parallel to it.  Trajpar would certainly work, just not give you this flexibility at the ends since it's simply linear.
