how to add a dimension in a custom symbol?

  • July 13, 2016
  • 4 replies
  • 5362 views

Hello

I need to create symbols for different punch tools. Those symbols are later added in some 2d for manufacturing purpose  they should be view of the punch tool plus dimensions.

e.g. see attachment

I succeed in a 2d, to transform views as Draft entities, then to create a custom symbol using those Draft entities.

But in the custom symbol created I can't get dimensions?

what am I doing wrong?

thanks

Veronique


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by DCG

I just had this same problem and exporting/importing as a DXF did the trick.  Export your drawing as a DXF then import it into an empty drawing (setting Import Dimensions to "As Symbols").  Then you can copy the dimensions to a symbol.

4 replies

J
James621-Visitor
1-Visitor
July 13, 2016

hi,

Dimensions can't be converted to draft entities as far as i remember. You'd need to sketch the dimensions for the ground up, using lines, hatches, text notes etc. when defining the symbol.

M
mender12-Amethyst
12-Amethyst
July 13, 2016

Hmm... are there any interface formats that don't understand dimensions as dimensions, but break them into text/lines?  I can't think of any, but if there were, you could make a drawing with this view of the tool with the dimensions, export to that, import it, and then use that.

M
mender12-Amethyst
12-Amethyst
July 13, 2016

I'm not positive, but an answer here might be: export to DXF, then import, selecting 'import dimensions: As Separate Entities'.

M
mbonka2-Explorer
2-Explorer
July 14, 2016

Hello Veronique Monteiro

don´t think it is possible "call" dimmensions in drawing symbol. Something like &d:5 in drawing note.

Try to use "symbol grouping". It is hard to create, but easy to use .

Only disadvantige is: Symbol value IS NOT linked to dimmension itself ---> if you change dimmension, than you have to change symbol value manualy.

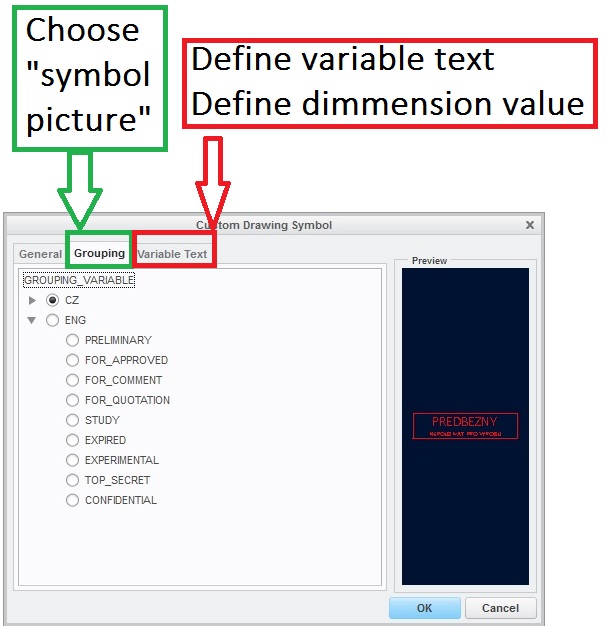

An example of my own grouped symbol is attached.
