How to convert sheet metal thickness dimnesion to linear?

  • March 31, 2017
  • 4 replies
  • 5205 views

Helo all,

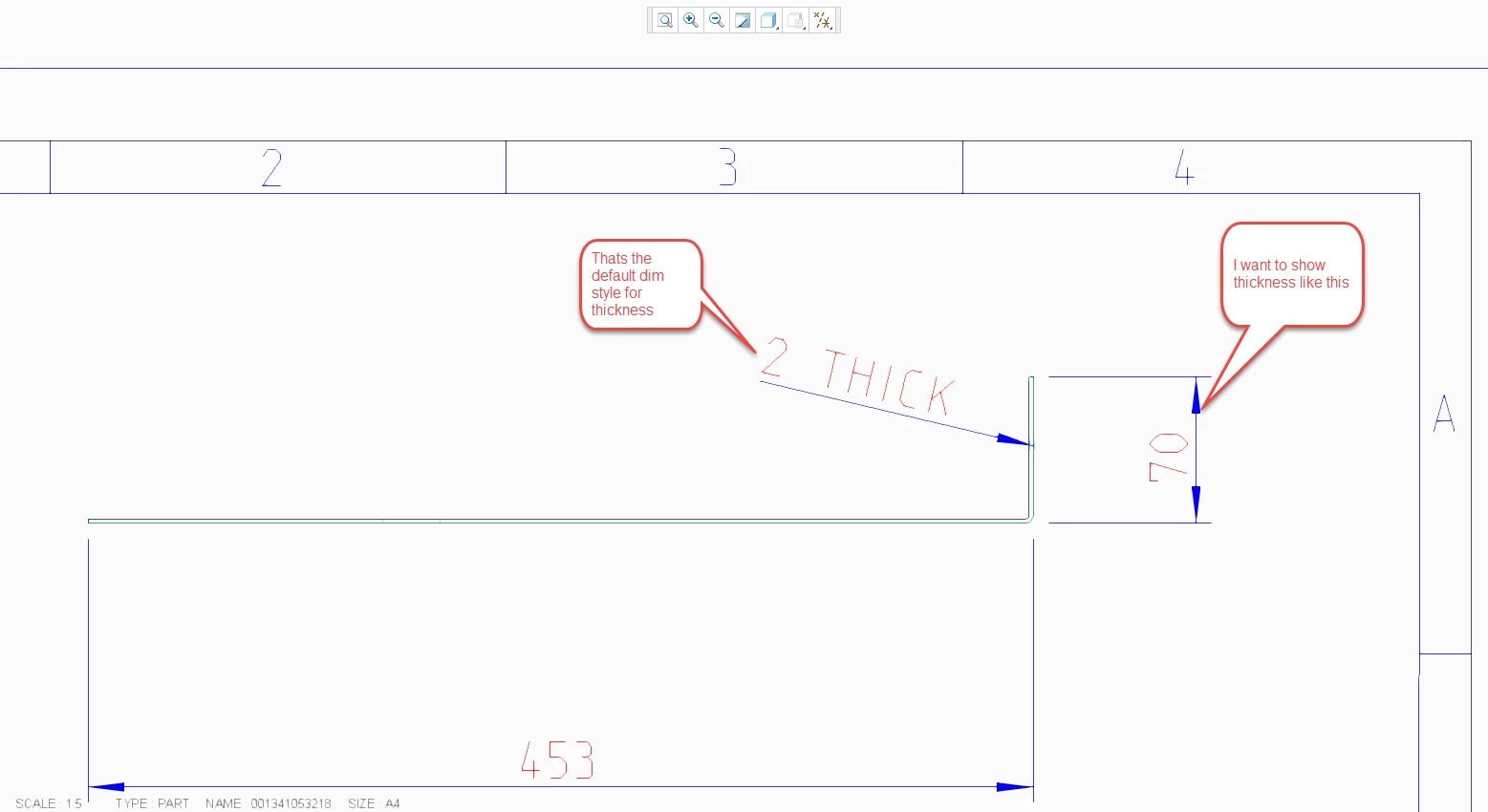

I have started creating sheet metal parts in CREO 3.0, and he problem I am facing is that whenever I give annotations to the part using "Show Annotations" tool it gives me thickness of the sheet metal part as single arrow pointing towards the thickness and dimension written over it. I want to show this thickness as linear dimension just as you show normal thickness of a part. I just cant find a way to do it help me out please!

Note: I am only allowed to display dimension using "Show annotations" tool, I cant give dimension manually, by selecting the dimension tool.

Image is attached for clarification.

Best answer by simran

well so its look lke there is no good solution for that..so yeah rules are going to be changed in my company. Yayyy freedom..

thank you so much everyone..

4 replies

StephenW
StephenW23-Emerald III
23-Emerald III
March 31, 2017

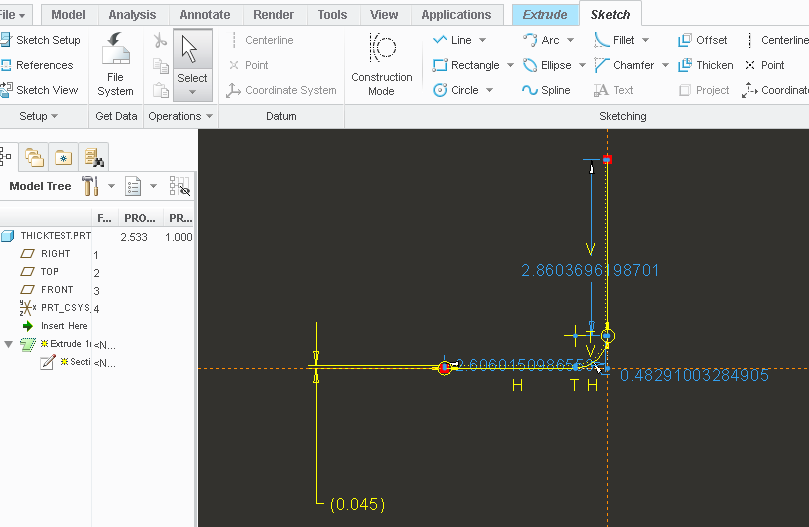

The only way I can think of is to add a reference dimension to your sketch.

In this case, I used the thicken command under setup - feature tools and then added the dimension. It's reference, but in the drawing, you can remove the parenthesis.

There are certain "rules" that companies (or people) make about using only shown dimensions that do not work in the real world, especially in sheet metal.

    R
    RaphMORIN16-Pearl
    16-Pearl
    March 31, 2017

    An other way could be to start with a solid part. You can define thickness as a dimension in this case, then convert to sheetmetal. You could also constraint this dimension to be equal to thickness with a relation. I've already done this way in some specific cases.

    From my point of view the best would be that PTC allows to show thickness as a regular dimension, with a config option.

    StephenW
    StephenW23-Emerald III
    23-Emerald III
    March 31, 2017

    I definitely agree that you should be able to show as a regular dimension!!

      P
      psobejko1-Visitor
      1-Visitor
      March 31, 2017

      Please clarify; you are making drawings of sheetmetal parts, and your company policy does not allow you to add dimensions to a drawing?

      What about "annotations" added to the model before drawing is started?  One of these could be a (manually added) thickness dimension...

      Depending on how you are making your sheetmetal parts, and what the documentation requirements are, it may not be easy to create drawings using "shown dimensions" only.  For example, feature dimensions do not get mapped to the flat pattern locations (when you show them on the drawing of the flat pattern, they point to the "formed" location).

      S
      simran1-VisitorAuthor
      1-Visitor
      April 3, 2017

      Yes I am making drawings of sheet metal parts and the company policy does not allow e to add dimensions in drawing. I hav to add them in the model and call up from 3D model to the drawings.

      For now i am manually adding dimensions of thickness to the 3D model but it should not b done this way, I have to use "show annotations" feature to use dimensions frmom model. But I guess there isnt really anyway of showing thickness dimension the way I want to.

      P
      psobejko1-Visitor
      1-Visitor
      April 3, 2017

      Yeah, I feel your pain.  I think your company's policy needs to change.  There are times to make exceptions to rules... Good luck!

      BTW, instead of dimensions, what about a model note you show on the drawing? - it would say something like "Sheet metal thickness is &SMT_THICKNESS[.2] (mm)"

      S
      simran1-VisitorAuthorAnswer
      1-Visitor
      April 12, 2017

      well so its look lke there is no good solution for that..so yeah rules are going to be changed in my company. Yayyy freedom..

      thank you so much everyone..
