How to create a line shape with unbalanced tolerance zone with MBD in Creo4?

Forum|Forum|7 years ago
October 17, 2018
4 replies
6022 views

Hello everybody,

I want to create a line shape with unbalanced tolerance zone. There is always an error.

How to do that correctly in Creo4 with MBD? Thanks!


Br

Sun

MBD_GD&T

Best answer by Mahesh_Sharma

@sundoopi

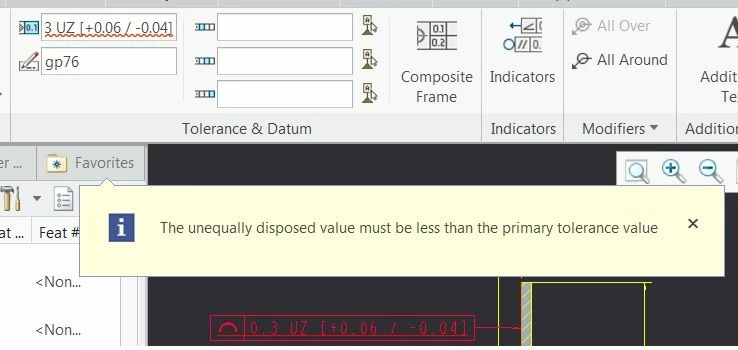

I think the error in image is because of format for value mentioned after UZ.

If you will define this as 0.3 UZ [0.03], it will not report any error. But if it will be +#.## / -#.##, there will be error. Can you share any image or details about standard which defines this value after UZ.

Mahesh_Sharma

Answer

22-Sapphire I

@sundoopi

I think the error in image is because of format for value mentioned after UZ.

If you will define this as 0.3 UZ [0.03], it will not report any error. But if it will be +#.## / -#.##, there will be error. Can you share any image or details about standard which defines this value after UZ.

S

sundoopi

Author

1-Visitor

Hello MaheshSh, you are right. If +#.## / -#.## is changed, only +#.## or -#.## is used, there is no any error. Thank you.

And also many thanks to

you also gave me advice to my question.

Sorry for my antwort so late.

Br

Sun

T

TomU

23-Emerald IV

Not sure which standard you're using but ASME Y14.5-2009 shows this entered differently.

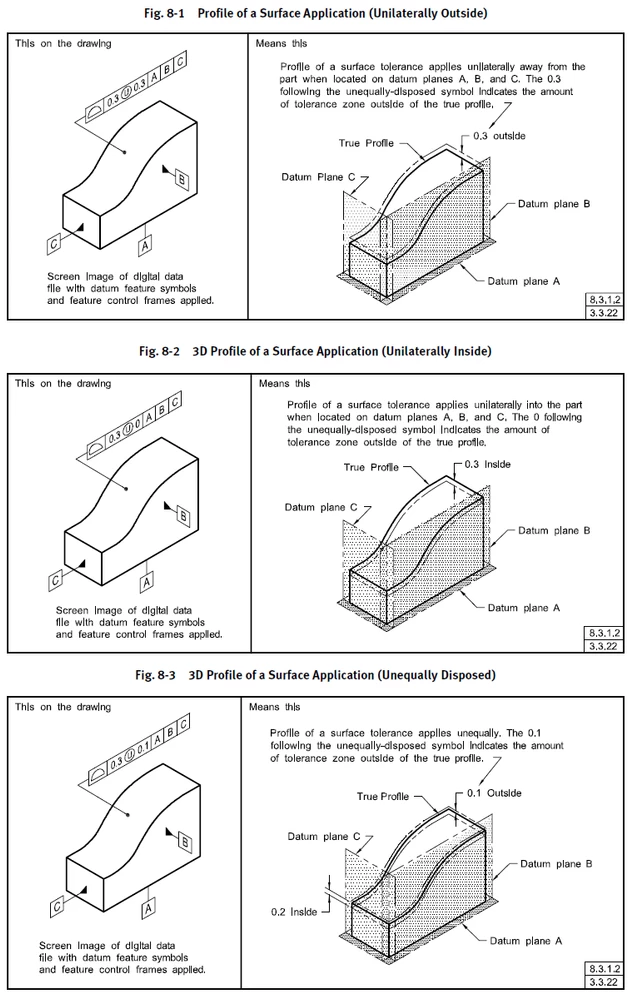

Profile of a Line.png

Mahesh_Sharma

22-Sapphire I

Hi @TomU

@sundoopi is using ISO standard for unequally disposed tolerance zone....

http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/model-based_definition%2FISO2012%2FOptional_Modifiers.html%23

T

TomU

23-Emerald IV

Sounds like the basic usage is still the same. The single value after the UZ (or U) just shifts the tolerance zone around. I think he is confusing where the zone is located with the size of the zone.
