How to hide points and center-line from piping drawing ?

  • May 9, 2016
  • 5 replies
  • 4180 views

Hi..

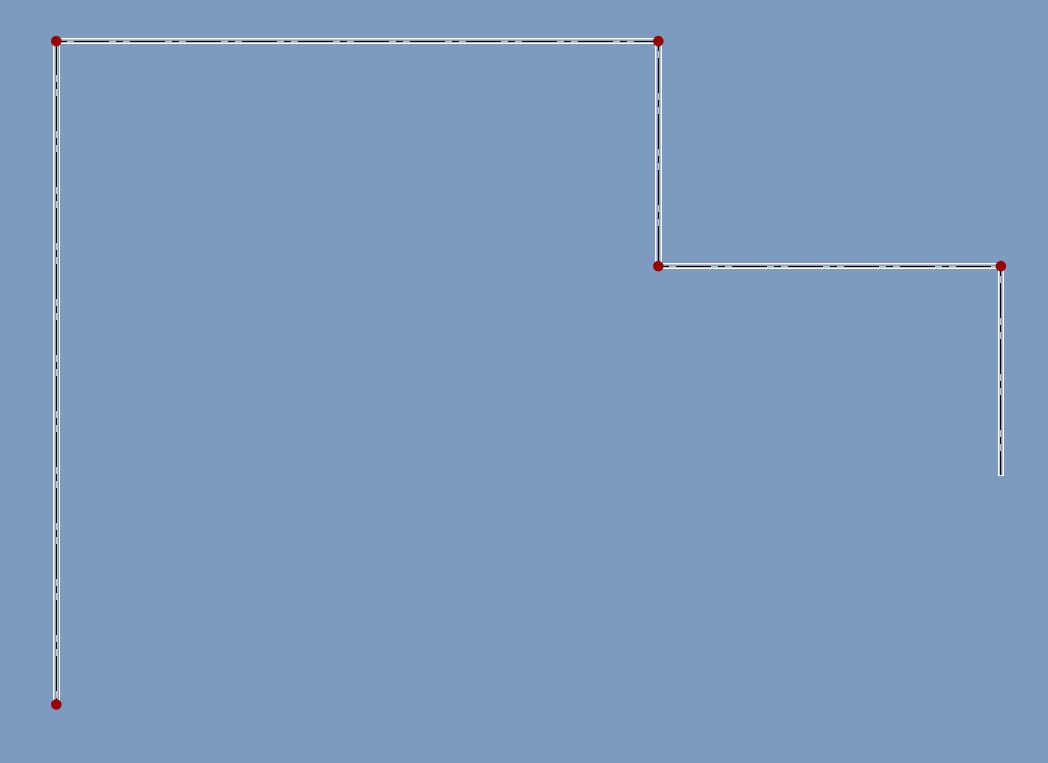

I want to hide the points and center line of pipe in drawing as shown in below snap.

so pls anybody suggest, how we can do this ?



I have shared data for reference.




Regards,

Prashant pandarkar


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Prashant,

You may try setting config option pipe_solid_centerline as no and drawing option hlr_for_pipe_solid_cl as yes

5 replies

dschenken1-Visitor
1-Visitor
May 10, 2016

If you put the feature on a layer and blank the layer, the non-solid portion of the feature will be blanked as well.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
May 11, 2016

Prashant,

You may try setting config option pipe_solid_centerline as no and drawing option hlr_for_pipe_solid_cl as yes

    dgrobe2-Explorer
    2-Explorer
    May 23, 2016

    mahesh is correct..

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    July 7, 2016

    Prashant,

    Did you get this working? Don't forget to mark appropriate reply as correct answer.

    ppandarkar-2_18353115-MoonstoneAuthor
    15-Moonstone
    July 8, 2016

    Yes it works. Thanks

    Prashant
