How to insert text into detail drawing

  • December 3, 2013
  • 1 reply
  • 11534 views

Very new to Creo, can anyone tell me how to insert text into detail drawing? For example I would like to add quantities next to balloons, not split the balloons with quantities. How do I add a general note as well, I just dont see an interface to add text to a drawing? Thank you

Best answer by Dale_Rosema

As for adding text, go to the annotate tab and then to the menu manager for whether you want a leader or not....


As for associating the text with balloon, weld notes or the such, here is a product suggestion to vote on:

http://communities.ptc.com/ideas/2186

Thanks, Dale

1 reply

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAnswer
23-Emerald III
December 3, 2013

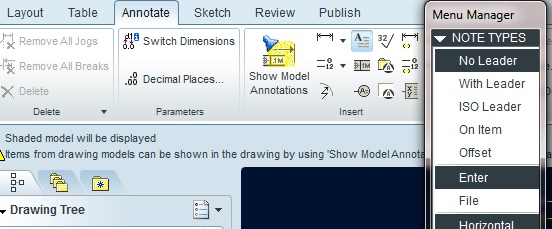

As for adding text, go to the annotate tab and then to the menu manager for whether you want a leader or not....


As for associating the text with balloon, weld notes or the such, here is a product suggestion to vote on:

http://communities.ptc.com/ideas/2186

Thanks, Dale

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
December 3, 2013

You can RMB and chose Relate to View, so that if you move the view around it will move with the view, but if you move the balloon independantly of the view, you will also have to reposition the text.

Thanks, Dale
