how to move flat face parallel to plane in part mode

  • July 12, 2016
  • 2 replies
  • 2317 views

I know that in assembly mode you can constrain a model parallel from face to a plane.

I need to import and position a customer model in part mode.  It doesn't seem that the above capability is available in part mode.

I can rotate a quilt in one direction in part mode but can't align a face to a compound angle.  When you rotate in one direction 1st and another direction next it can move the 1st rotation slightly out of position.

I would like to be able to make a flat face on my part align in a parallel direction with one movement.

I don't prefer to do the alignment in assembly mode because it would require an extra data transfer (and possible added IDD errors) to get the customer model in part mode.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by StephenW

Have you considered using merge/inheritance to bring the data in to your part file? It brings a part file in to another part file and you use the same component placement dialog as assembly mode.

Model tab - get data drop down arrow - merge/inheritance.

2 replies

StephenW
StephenW23-Emerald IIIAnswer
23-Emerald III
July 12, 2016

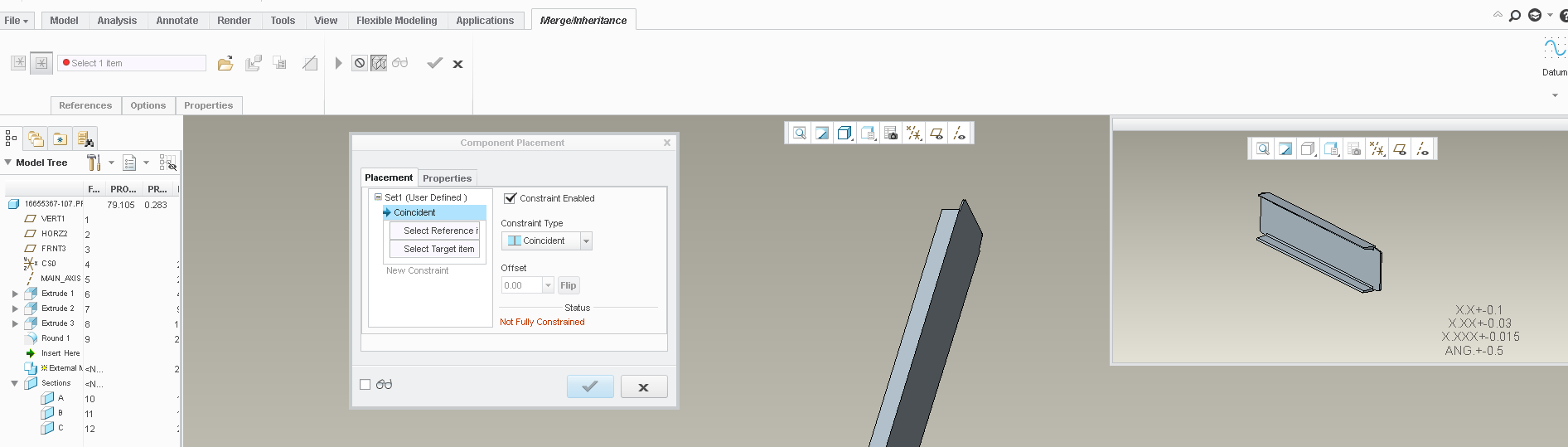

Have you considered using merge/inheritance to bring the data in to your part file? It brings a part file in to another part file and you use the same component placement dialog as assembly mode.

Model tab - get data drop down arrow - merge/inheritance.

P
pimm15-MoonstoneAuthor
15-Moonstone
July 12, 2016

Awesome!

This would mean that we would change our methodology somewhat but it would do exactly what we are looking to do.

Sometimes you can use tools for quite a while and not realize there are options above which you use.  That would certainly be the case here.  I believe I've always just defaulted everything that I merge/inheritance.

Thanks for your suggestion!

D
dgschaefer21-Topaz II
21-Topaz II
July 12, 2016

Another option is to create a CS in your part at an angle and align your import to it.  Once imported you'd tweak the angel to get the planes parallel.
