How to open .dwg file in Creo 2.0?

  • April 28, 2015
  • 4 replies
  • 18908 views

Hi

I want to open a .DWG File which is made in autocad 2011.

But when I open it,It give me "Invalid DWG file" message.

Can you please share step by step process to open DWG File.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Nikhil,

according to https://support.ptc.com/appserver/cs/view/solution.jsp?source=subscription&n=CS134024:

  • Creo 2.0 supports AutoCAD import up to 2010
  • Creo 3.0 supports AutoCAD import up to 2013

On the other side AutoCAD 2011 uses the same native file format as AutoCAD 2010. See http://autodesk.blogs.com/between_the_lines/autocad-release-history.html

Therefore it is difficult to say, what is going on. You can contact PTC Support, if you want.

Martin Hanak

4 replies

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
April 28, 2015

Nikhil,

according to https://support.ptc.com/appserver/cs/view/solution.jsp?source=subscription&n=CS134024:

  • Creo 2.0 supports AutoCAD import up to 2010
  • Creo 3.0 supports AutoCAD import up to 2013

On the other side AutoCAD 2011 uses the same native file format as AutoCAD 2010. See http://autodesk.blogs.com/between_the_lines/autocad-release-history.html

Therefore it is difficult to say, what is going on. You can contact PTC Support, if you want.

Martin Hanak

    A
    andy21-Visitor
    1-Visitor
    April 28, 2015

    The easiest & fastest workaround for this is to save in a earlier version of autocad(save as -> files of type[change here]).

      N
      ndaslaniya1-VisitorAuthor
      1-Visitor
      April 28, 2015

      Hi All,

      I want to open simple .dwg file in creo.

      Is it possible to show me step by step process.

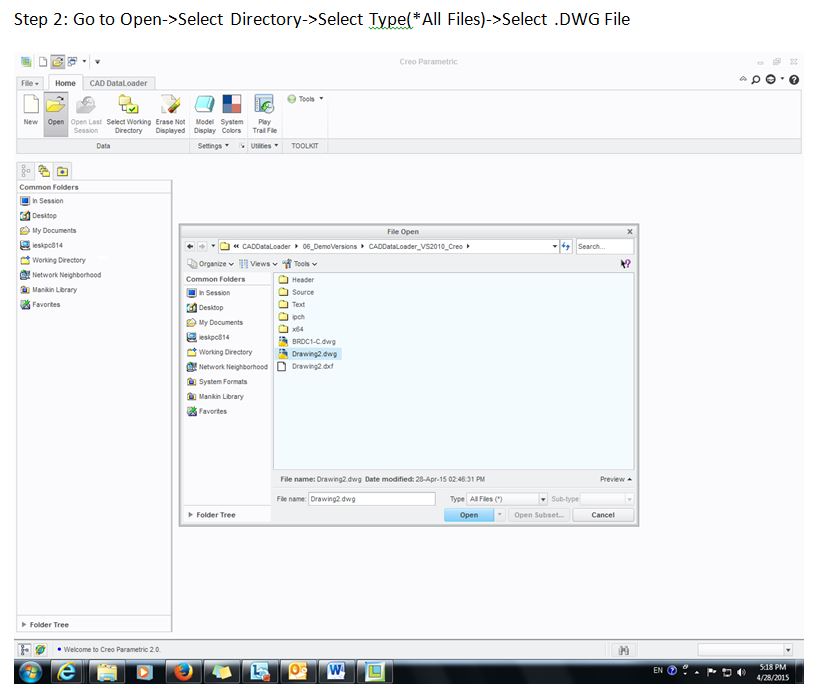

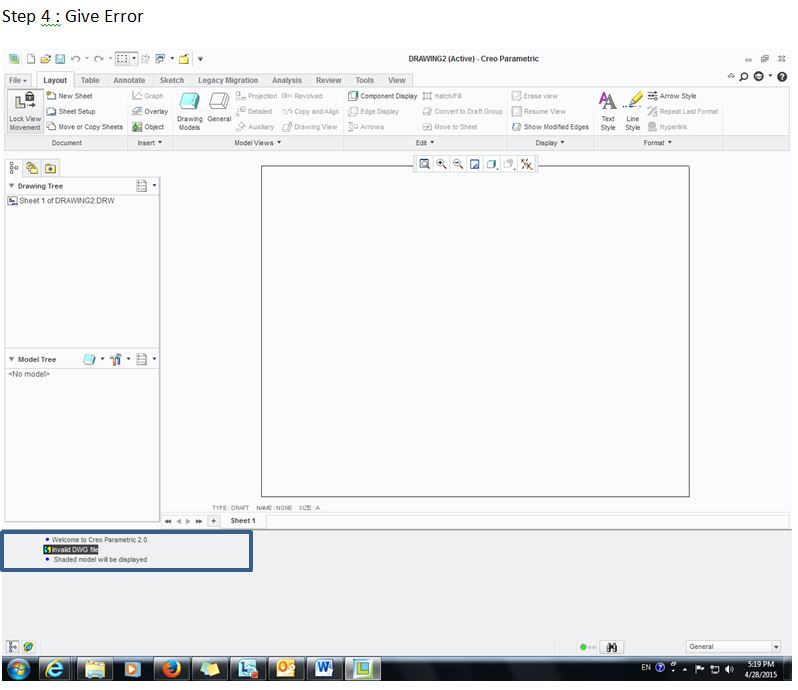

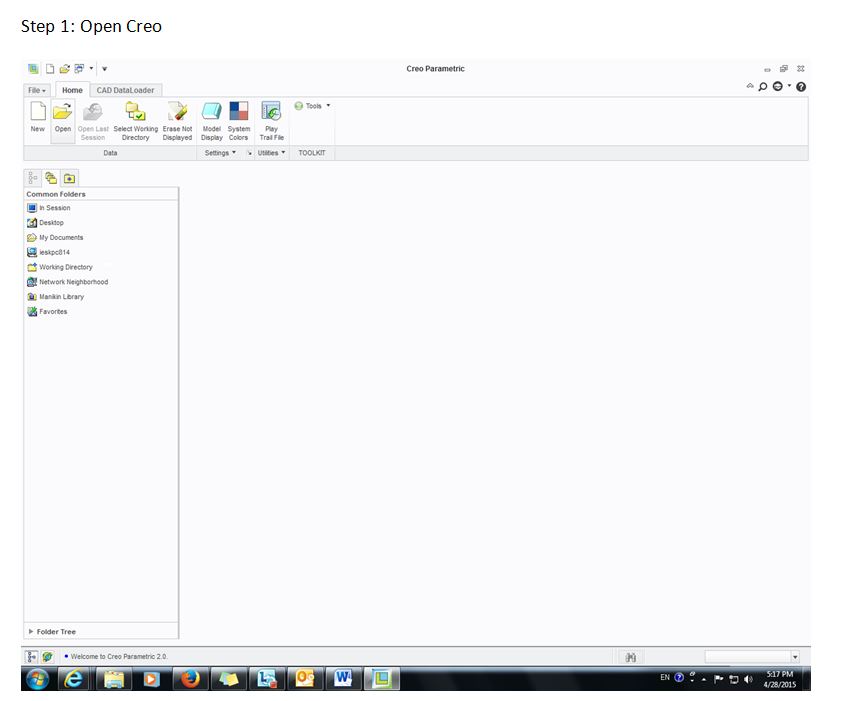

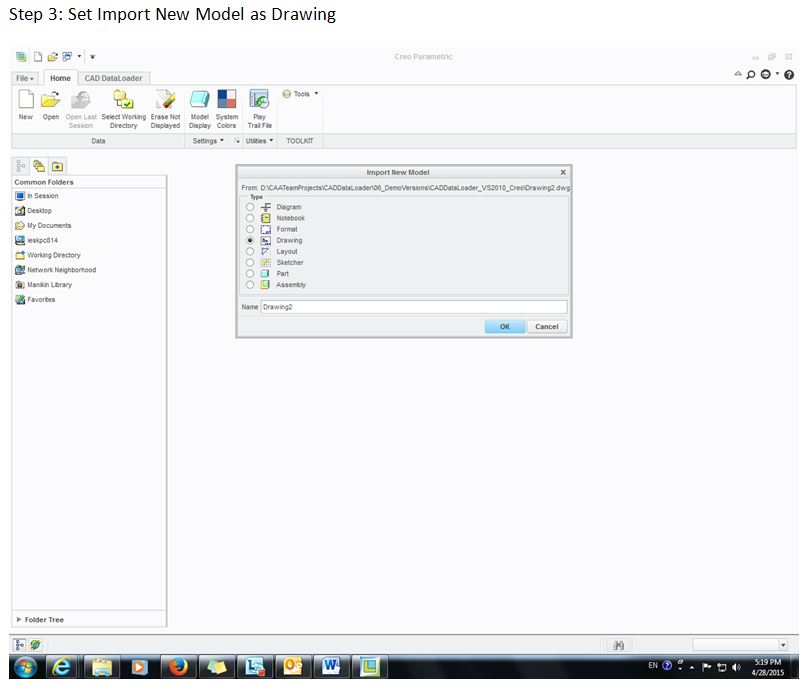

      Here I attached snap to open .dwg but I give me error.





      M
      MartinHanak24-Ruby III
      24-Ruby III
      April 28, 2015

      Nikhil,

      can you upload your DWG file ? See How to upload Creo (or other) files

      If it contains secret info, can you provide some test file ?

      Martin Hanak

      N
      ndaslaniya1-VisitorAuthor
      1-Visitor
      April 28, 2015

      PFA File

      N
      ndaslaniya1-VisitorAuthor
      1-Visitor
      April 28, 2015

      PFA Drawing File

      M
      MartinHanak24-Ruby III
      24-Ruby III
      April 28, 2015

      Nikhil,

      I have opened 3303793_04 JTY-GDM-SIGA-DSC...V1.dwg file in Creo 2.0 successfully. Before opening I renamed it to v1.dwg.

      Martin Hanak
