How to project a spline onto a cylinder???

  • February 28, 2018
  • 2 replies
  • 5085 views

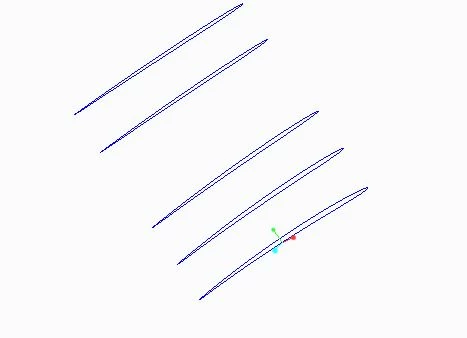

I have aerofoil on a plane which is as shown in fig.3 of attachments they are lying on the different parallel planes. but I want to have them like how they are shown in images 1 and 2. In images 1 and 2, the aerofoils are projected onto right circular cylinders fashion. I have attached the igs file of various splines.

Best answer by BHOoi

This looks straight forward. Create the cylindrical surface and then project those curves to it.



2 replies

T
TomD.inPDX17-Peridot
17-Peridot
February 28, 2018

Use the Project feature to project a sketch onto a cylindrical surface or quilt.



Also look at the Wrap feature in case this is more appropriate.

    N
    naveenkumar61-VisitorAuthor
    1-Visitor
    February 28, 2018

    Thank you, I should use a wrap instead of project command as it gives the exact shape and size. How to blend after wrapping all the curves

    T
    TomD.inPDX17-Peridot
    17-Peridot
    February 28, 2018

    I do have some luck with boundary blend but a sweep-blend feature may also work for you.

    B
    BHOoi16-PearlAnswer
    16-Pearl
    February 28, 2018

    This looks straight forward. Create the cylindrical surface and then project those curves to it.



    N
    naveenkumar61-VisitorAuthor
    1-Visitor
    February 28, 2018

    Thank You, it helped me to solve my problem to some extent. How to blend those curves to make them into a solid model
