make a parabola piece

  • June 24, 2016
  • 1 reply
  • 3846 views

Hello

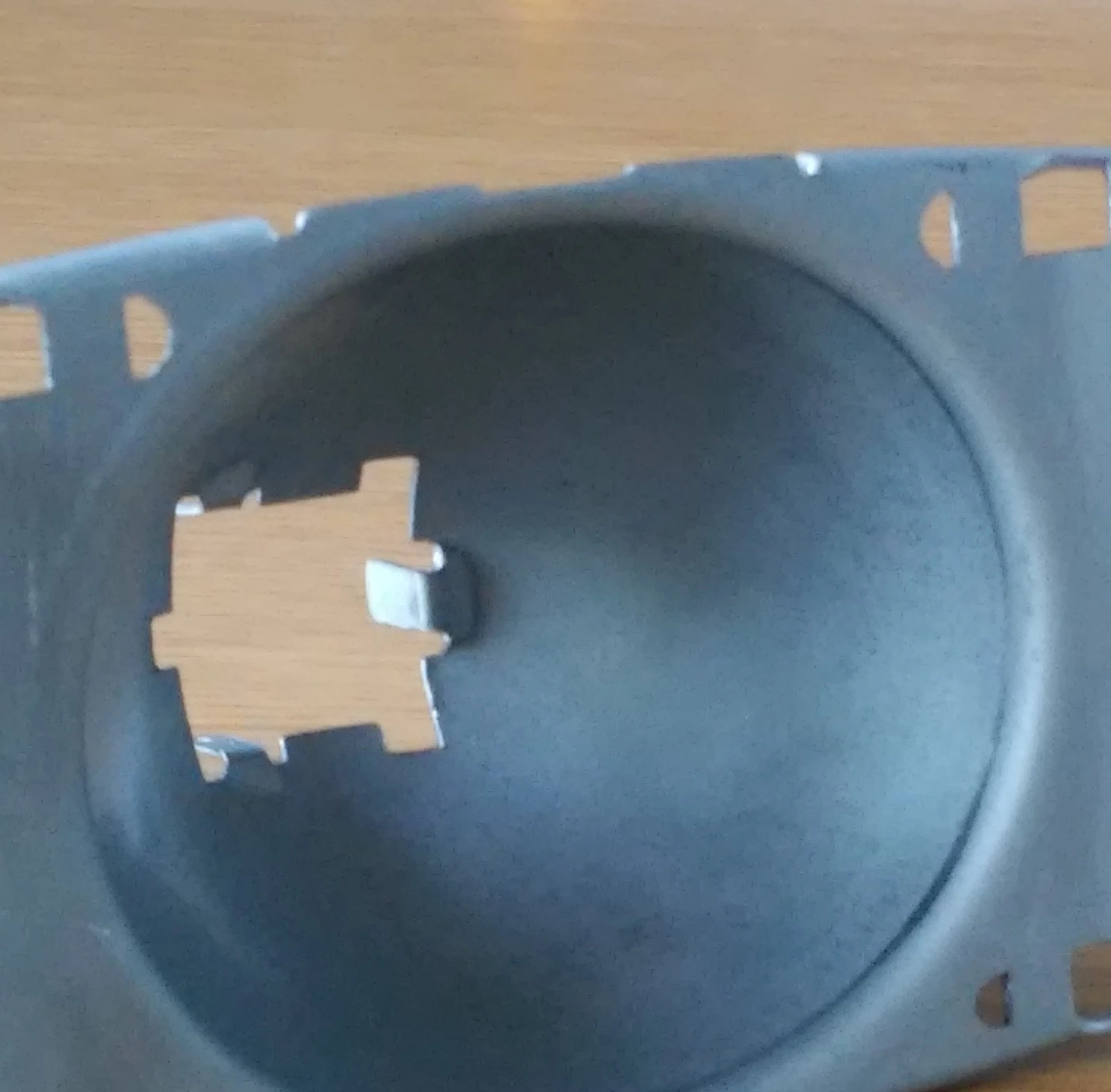

I want to make this piece

how it is corect to make for for have acurate proces making

please help me with a model in 3d same my part or tutorial


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by fdefreitas

Hi bogdan catalin,

to have a real parabola you have to:

1 - create a curve by equation (see https://learningexchange.ptc.com/tutorial/394/creating-a-curve-from-equation)

2 - make a revolution of that curve

PS: to have a parabola

     R=123.456  (radius of the parabola)

     K=-1 (conicity factor of parabola)

     Y=((X^2)/R)/(1+sqrt (1-((X/R)^2)*(1+K)))

     Z=0

Regards

Frank

1 reply

fdefreitas1-VisitorAnswer
1-Visitor
June 27, 2016

Hi bogdan catalin,

to have a real parabola you have to:

1 - create a curve by equation (see https://learningexchange.ptc.com/tutorial/394/creating-a-curve-from-equation)

2 - make a revolution of that curve

PS: to have a parabola

     R=123.456  (radius of the parabola)

     K=-1 (conicity factor of parabola)

     Y=((X^2)/R)/(1+sqrt (1-((X/R)^2)*(1+K)))

     Z=0

Regards

Frank
