Question
Missing Flange Wall bend Lines
- February 13, 2013
- 1 reply
- 1158 views
WF4, M190

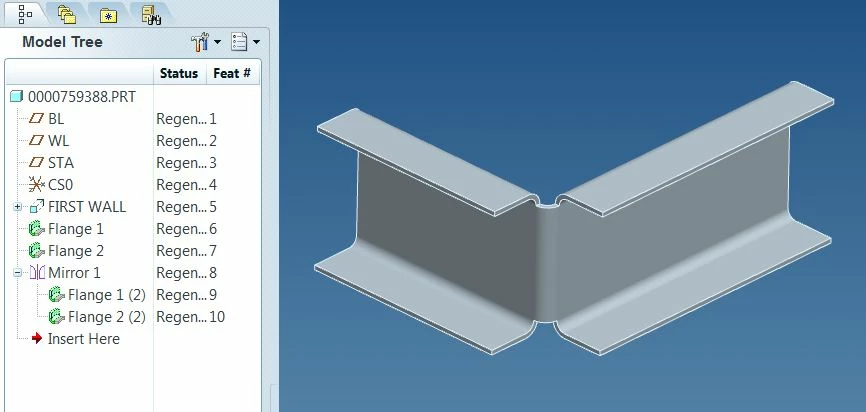

I've created a flange wall in my part that wraps around 3 straight walls and the bends in between (LH image). I then cut out the deformed area (RH image).
[cid:image001.png@01CE09FA.BE412F20] [cid:image002.png@01CE09FA.BE412F20]
In the flat, however, I get no bend lines for these walls. I'm assuming that's because of how I built it.
Is there a way to get the bend lines, or do I need to remake these walls?
Thanks,
--
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
