Model Datum Point Angle

  • September 22, 2014
  • 1 reply
  • 717 views

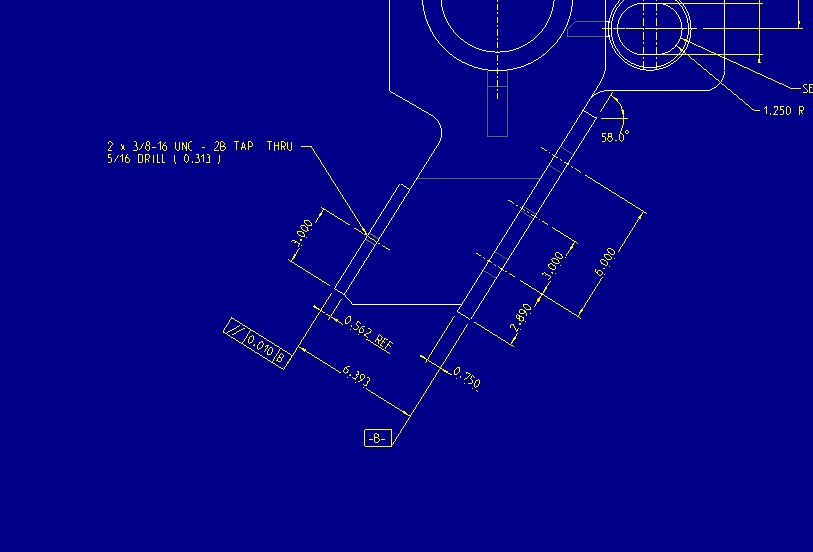

Having trouble getting my Datum B to rotate to the same angle as the part it is attached to which is 58 degrees. Any suggestions on how to rotate this to match with the Geo Tolerance?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

dschenken1-Visitor
1-Visitor
September 22, 2014

Unless it responds to modifying it's attachment ... I don't recall a rule that says the datum reference symbol needs to be aligned with the surface, though I agree it would look better.

Mostly of concern, the 58degree angle isn't a good dimension to use as there is no 'horizontal' part of a part to determine what it is 58 degrees from.
