Mold Design Problem, not able to create parting surface

  • March 15, 2015
  • 1 reply
  • 2927 views

Hi All,

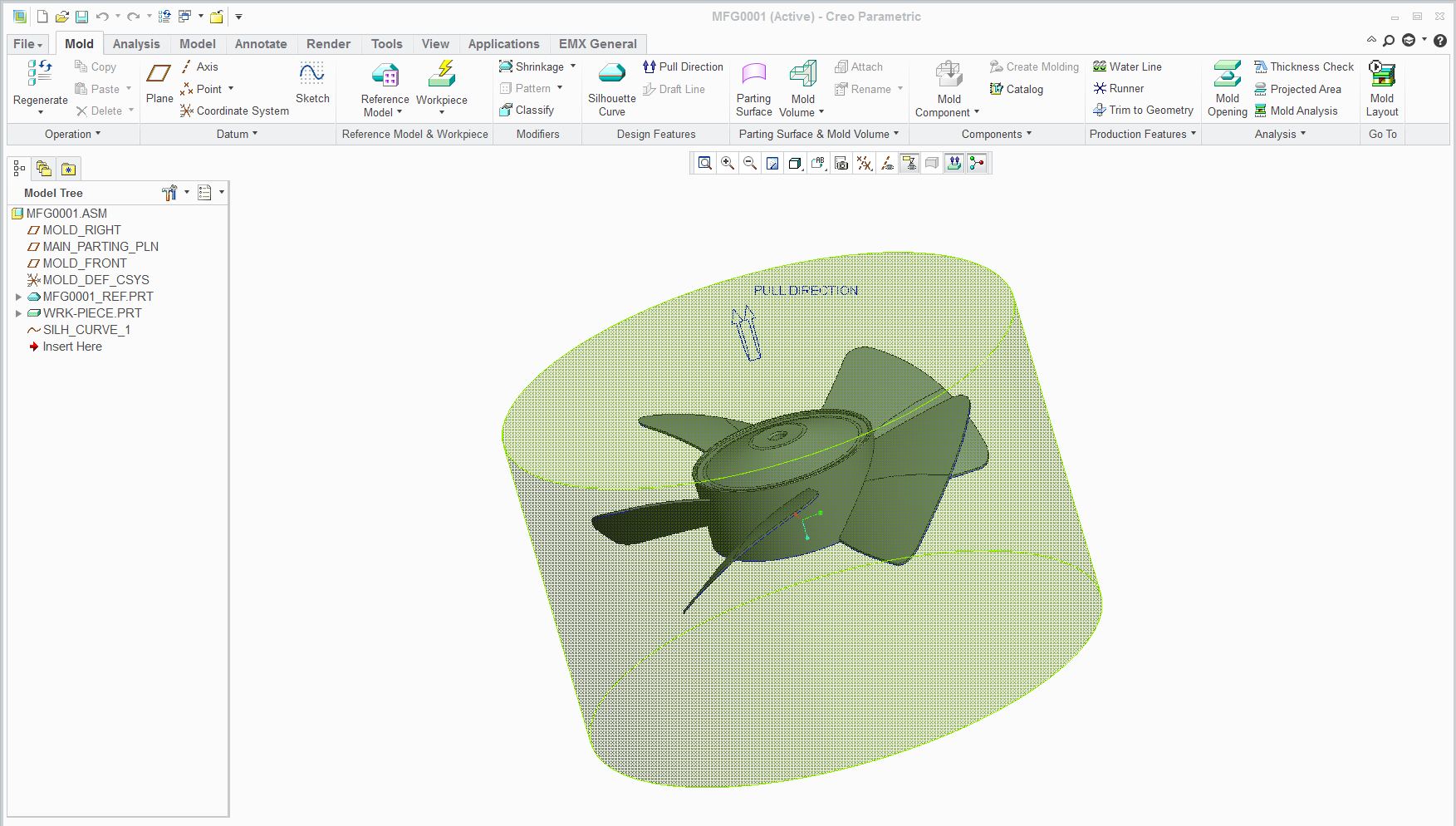

Is it possible to extract core cavity design for this fan model. I've tried to create parting surface but not yet successful.


Model is attached.

pls help!

Thanks,

Shashank

Best answer by bnguyen-2

Dear Shashnk

Please attach file

I think you can follow to split cavity

Dropbox - hil-vt-08-005_blade.prt.3

Thanks

Binh

1 reply

B
bnguyen-212-AmethystAnswer
12-Amethyst
March 18, 2015

Dear Shashnk

Please attach file

I think you can follow to split cavity

Dropbox - hil-vt-08-005_blade.prt.3

Thanks

Binh

    S
    ssharma-21-VisitorAuthor
    1-Visitor
    March 23, 2015

    Hi Binh Nguyen,

    Thanks a lot for your help. it worked the way i wanted it to be. Extracted core cavity out of your suggested parting surface and the machined tool worked absolutly fine.

    Thanks,

    Shashank Sharma
