"Most wanted" angled cut on sheetmetal wall

  • April 22, 2015
  • 3 replies
  • 1289 views

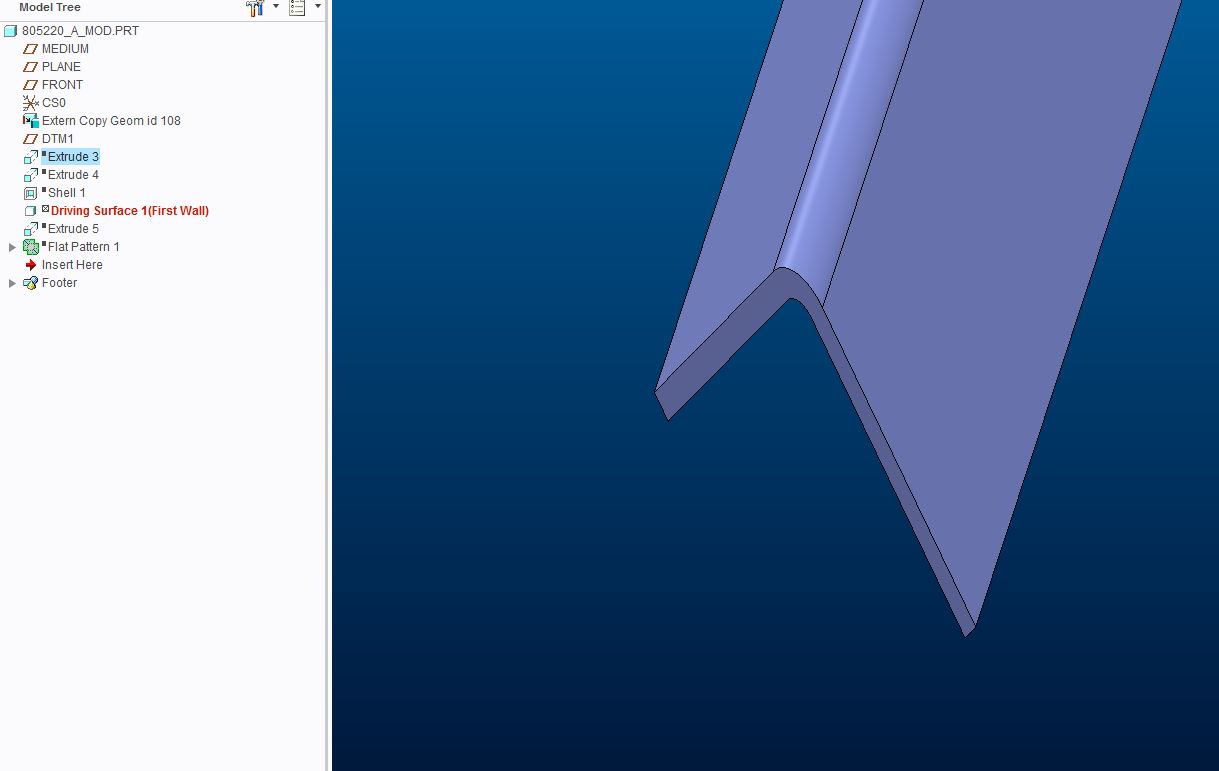

Here is the wanted geometry (pic below):

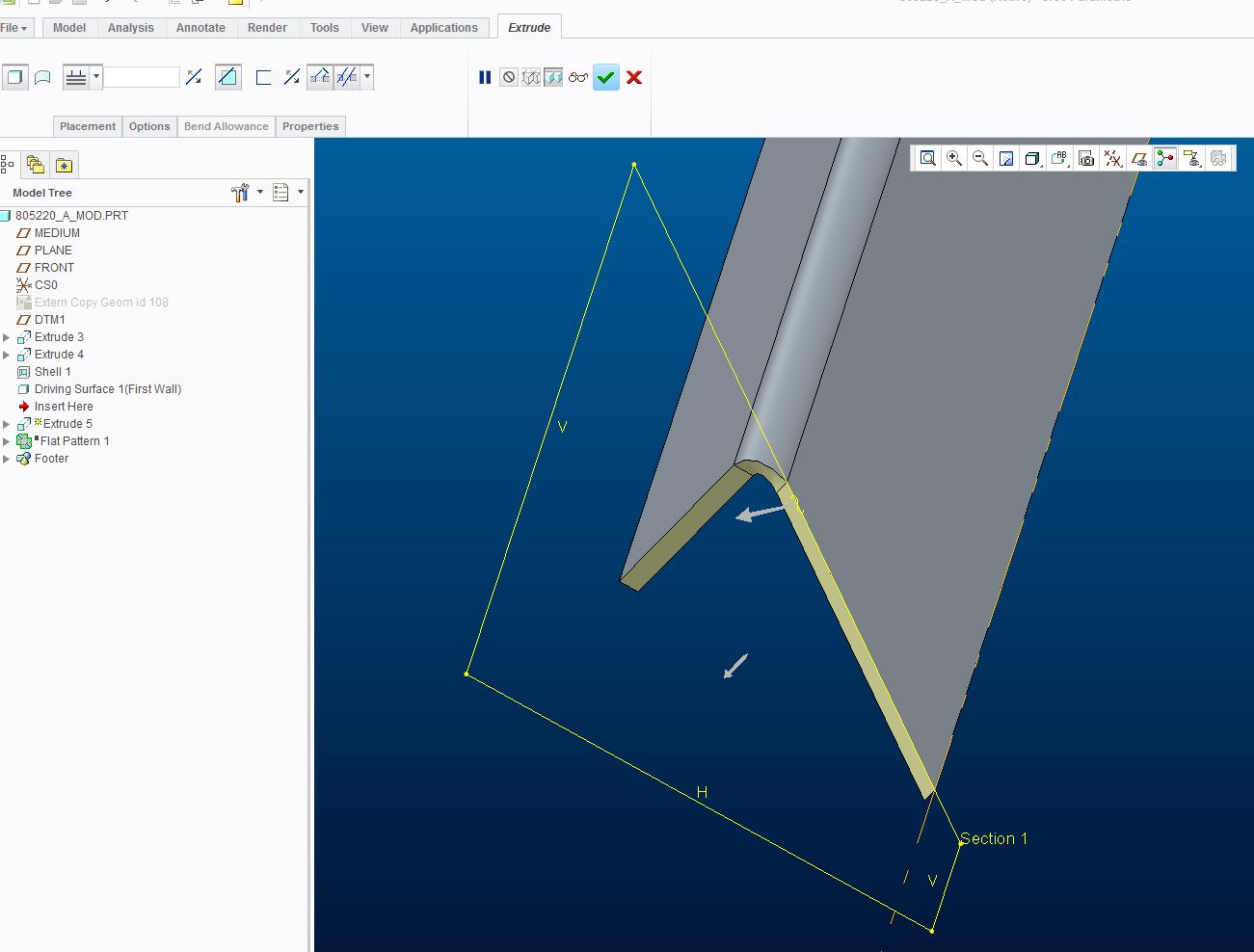

And here is the extrude cut step:


Is it possible to get wanted geometry working inside sheetmetal aplication, or do I must use some other feature or aplication ?

I´ve worked this in Creo 2 parametric.

Thank you in advance


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by LndoVnBtchmrk

All you need to do is turn off the "Remove material normal to surface" button.


3 replies

LndoVnBtchmrk12-AmethystAnswer
12-Amethyst
April 22, 2015

All you need to do is turn off the "Remove material normal to surface" button.


mmuhamedagic1-VisitorAuthor
1-Visitor
April 24, 2015

So obviously . Some time I just don't have time to read info message that automatically appear.

Thank you Andrew

    Dale_Rosema
    Dale_Rosema23-Emerald IV
    23-Emerald IV
    April 24, 2015

    ... and if that solved the problem, don't forget to mark the answer as correct.

    Thanks, Dale
