Note's Default alignment

  • May 11, 2016
  • 2 replies
  • 3020 views

Hello,

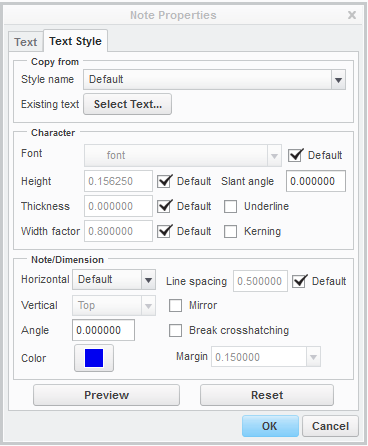

I would like to understand what DEFAULT alignment means for drawing note's horizontal justification.


Any suggestion will be helpful.

Thanks and Regards

Ketan


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Hi,

Default horizontal alignment means that:

  • note placed right of attachment point is aligned Left
  • note placed left of attachment point is aligned Right

MH

2 replies

J
James621-Visitor
1-Visitor
May 11, 2016

Hi,

Vertical alignment can be used for a text inside of a table's cell.


    K
    Ketan_Lalcheta1-VisitorAuthor
    1-Visitor
    May 11, 2016

    Can't we use vertical alignment except table cell? I would like to set it for a note in drawing file.

    M
    mender12-Amethyst
    12-Amethyst
    May 11, 2016

    There isn't a vertical alignment outside of table cell, but there is a similar concept, which is using @O to declare the origin line, so you can have the leader elbow going up to whichever line you like.

    M
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    May 11, 2016

    Hi,

    Default horizontal alignment means that:

    • note placed right of attachment point is aligned Left
    • note placed left of attachment point is aligned Right

    MH
