Parts no visable when opening up a assembly?

  • August 12, 2015
  • 5 replies
  • 12097 views

Hello I am having issues of parts not visible when opening up a assembly in 3.0 . There is a few of my parts not visible in the graphics area however they are in the model tree . There a no simplified reps of this assembly . I can activate the missing part, edit a feature and the part shows up.  I can save the assembly but when I re open it  its missing again. Any ideas ??

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Rodney,

You may mark appropriate reply to post as correct answer.

5 replies

V
VladimirPalffy14-Alexandrite
14-Alexandrite
August 13, 2015

Hi, it is possible to share your assembly (we can try to investigate your data)

Regards,

Vladimir

R
rmiller-21-VisitorAuthor
1-Visitor
August 14, 2015

Sorry but our company will not allow it .

Thanks

M
MartinHanak24-Ruby III
24-Ruby III
August 13, 2015

Rodney,

I met similar situation in CR3 M020. I used the following procedure to resolve the problem.

  1. I started Creo session
  2. I opened top assembly (for example myasm.asm.22) from original directory
  3. I created backup directory (for example c:\backup)
  4. I applied Backup command on top assembly into backup directory
  5. I ended Creo session
  6. In backup directory I renamed top assembly file (for example from myasm.asm.1 to myasm.asm.23)
  7. I copied renamed top assembly file from backup directory to original directory
  8. I started Creo session and opened top assembly (myasm.asm.23) from original directory ... assembly display was OK

Martin Hanak

    R
    rmiller-21-VisitorAuthor
    1-Visitor
    August 14, 2015

    Thanks I will give that a try .

    I just would like to know what causes this problem . I have seen it happen a few time in the past and not sure if it is a software bug or something I am doing incorrect .

    Thanks

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 14, 2015

    I guess the problem is caused by software bug...

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    August 13, 2015

    Rodney,

    What are the results if you change the display style to Wireframe/Hidden Line/No Hidden/Shading after retrieving the assembly?

    R
    rmiller-21-VisitorAuthor
    1-Visitor
    August 14, 2015

    I tried that but it seems to make no difference.

    Thanks

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    August 14, 2015

    Basic question but I gotta ask...Are the parts hidden or turned off in a layer?


    V
    VladimirPalffy14-Alexandrite
    14-Alexandrite
    August 14, 2015

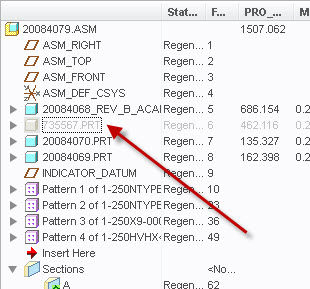

    This part is hidden in the Model Tree

    Regards,

    Vladimir

    R
    rmiller-21-VisitorAuthor
    1-Visitor
    August 14, 2015

    Correct , my part shows up not hidden in model tree or layer tree, just not visible in graphics area .

    Thanks

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    August 25, 2015

    Rodney,

    Any update on this?

      R
      rmiller-21-VisitorAuthor
      1-Visitor
      August 25, 2015

      Yes please see the reply to Martin Hanak

      Thanks

      Mahesh_Sharma
      Mahesh_Sharma22-Sapphire IAnswer
      22-Sapphire I
      September 4, 2015

      Rodney,

      You may mark appropriate reply to post as correct answer.
