Pipe feature OD in a Family Table?

  • March 10, 2017
  • 2 replies
  • 2340 views

Hey,

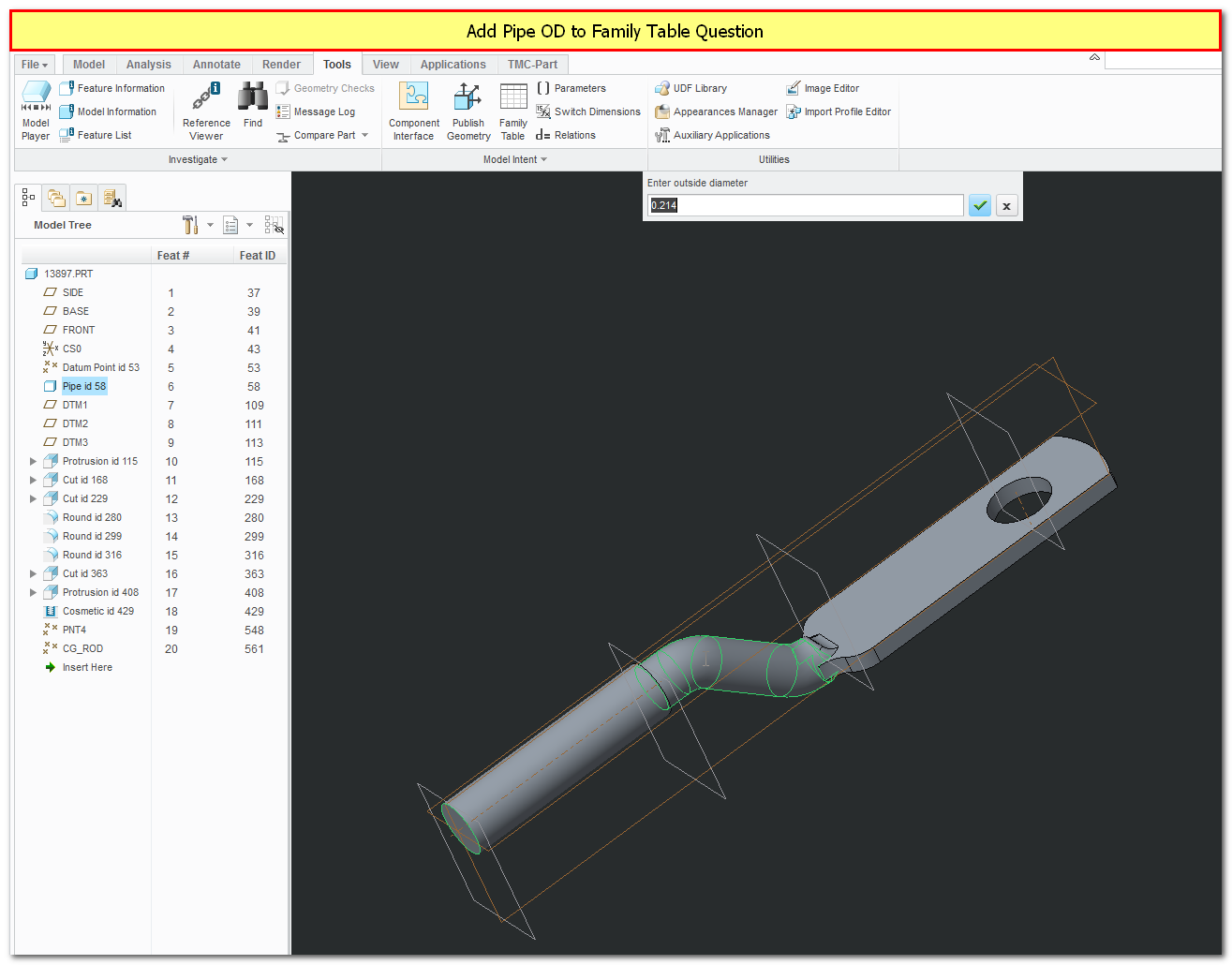

I have a model with a pipe feature that I would like to add the OD as a variable in the Family Table.   I can edit the OD on screen when I pick it, and I know the dimension name: d12

How can I get that dimension into my Family Table?

-marc

Creo 3.0 m10020170310-100121.png

Best answer by MartinHanak

Hi,

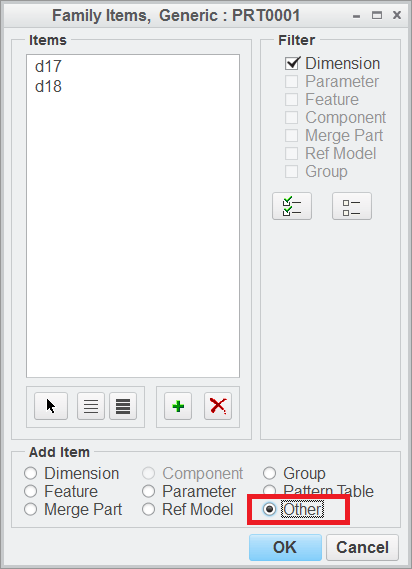

use Other option. It enables you to enter dimension name.

MH

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
March 10, 2017

Marc,

You may try adding a relation as d12=OD and add that OD parameter in family table.

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
March 10, 2017

Hi,

use Other option. It enables you to enter dimension name.

MH

    M
    mdebower18-OpalAuthor
    18-Opal
    March 10, 2017

    ah HA!   I knew there had to be a relatively simple way of doing this, thank you Martin.

    -marc
