Problem: No "Offset with Draft" option

  • August 4, 2010
  • 6 replies
  • 5156 views

I am using Pro Engineer Wildfire 4.0 education version. I was following this tutorial (http://www.me.cmu.edu/academics/courses/NSF_Edu_Proj/Wildfire_short_course/tutorial10.htm ) and was at the creating features part when it ask me to use offset with draft. For some reason, there is no option to offset with draft. I've tried looking around and other methods, but can't seem to find anything. Does anyone have any suggestions or has encountered this problem before? Thank you.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

6 replies

Kevin1-Visitor
1-Visitor
August 5, 2010

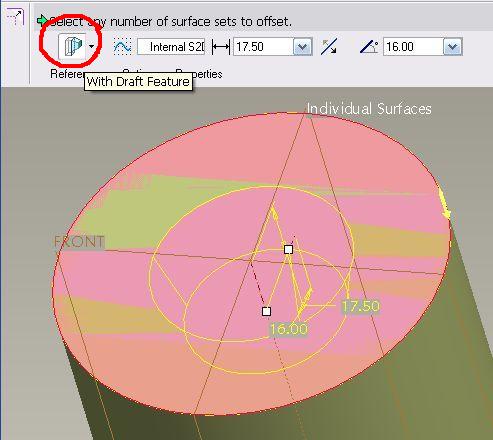

Not sure what version that's from but here is a what you need to select in WF4:

New Picture.jpg

MukaSingh1-Visitor
1-Visitor
August 6, 2010

Is offset with draft the same as extrude with draft? I would like to add draft to my extrude so I have only one feature instead of two features like doing an extrude then have to go back and add draft to the surfaces.

Kevin1-Visitor
1-Visitor
August 6, 2010

If i understand what you're asking correctly you can flip the direction of the offset so it becomes an extruded feature as opposed to a recessed feature. You need to have an existing surface or solid geometry. If you're wanting the feature as a first feature in your model a blend or VSS may be want you want to use.

New Picture (1).jpg
