Problem with a round feature

  • September 24, 2015
  • 6 replies
  • 7743 views

Hey all...I am having a problem with a round feature in a part I am designing. In short, the feature keeps failing and I can't figure out why. I've attached a copy of my part. Refer to 'Round 7' in the model tree. If you can figure out how to make this work, please let me know. Thanks.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by RonSt.Pierre

Here is your part, I believe finished.

I assumed you're cutting the ribbing with a ball mill so I modeled accordingly

As I mentioned earlier, I reordered some features, eliminated some double definitions and only added one additional feature. - round 8

The sketch that failed on me was missing the sketch plane definition.  as soon as I selected the correct plane, all else worked.

enjoy

6 replies

M
MartinHanak24-Ruby III
24-Ruby III
September 24, 2015

Mark,

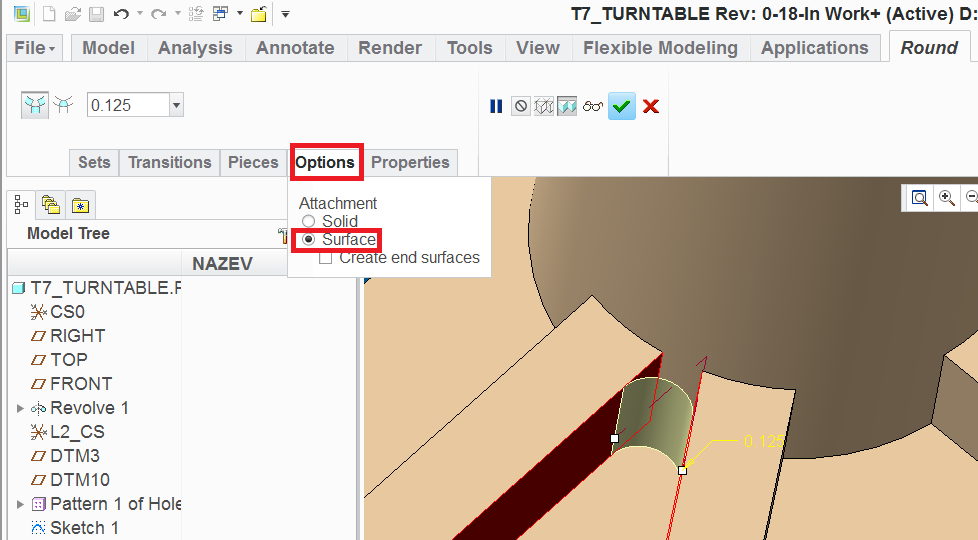

I think you cannot create Round as Solid feature. Create it as Surface and close the space between round and model geometry.


MH

R
RonSt.Pierre12-Amethyst
12-Amethyst
September 24, 2015

first, I switched trajectory ribs

I then moved failed feature - round 7 - under rib 2

created a new fillet (opposite of round 7)

went into feature round 3 and removed the duplicate definition of round 7 and new fillet

now it fails at sketch 2 and I don't have anymore time to play with it

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
September 24, 2015

That won't work if there's draft.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
September 28, 2015

Makes it easier then!  Unfortunately, everything I've had to do for the last 4+ years has draft everywhere,  I can't open any of these files so I can't tell if there's any or not.  Which is why I said "if".  Ah well, but that's what makes designing IM plastic parts so "fun"!

J
JamesAvis14-Alexandrite
14-Alexandrite
September 24, 2015

Add a small extrusion to create a continuous surface at the top, first.

9-24-2015 3-00-01 PM.png

Then the round will solve itself.

9-24-2015 3-01-49 PM.png

T
TomD.inPDX17-Peridot
17-Peridot
September 25, 2015

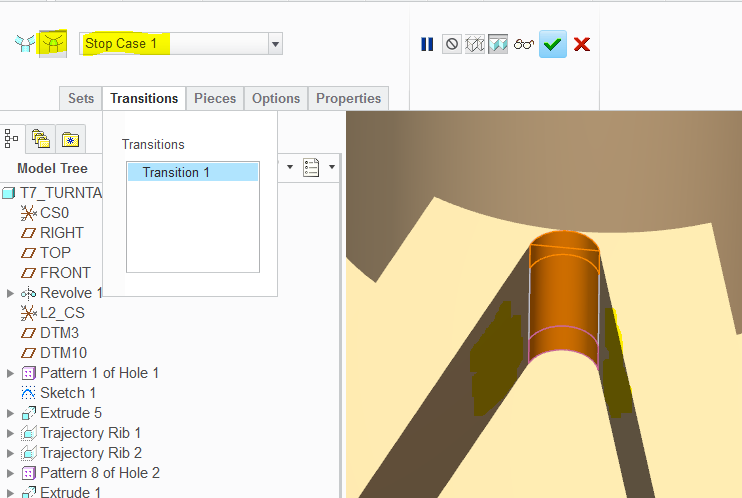

Change the transition stop case...

Click on the red highlight at the top of the preview and the options will be available.


    T
    TomD.inPDX17-Peridot
    17-Peridot
    September 25, 2015

    I wasn't sure if you were trying to get a controlled radius or a full round to the center boss.

    Either way, the software is a bit finicky on the second instance.

    Creating both rounds in a single feature makes this work.

    The video will show how I was struggling to get either possible results.

    Video Link : 6359

    R
    RonSt.Pierre12-AmethystAnswer
    12-Amethyst
    September 25, 2015

    Here is your part, I believe finished.

    I assumed you're cutting the ribbing with a ball mill so I modeled accordingly

    As I mentioned earlier, I reordered some features, eliminated some double definitions and only added one additional feature. - round 8

    The sketch that failed on me was missing the sketch plane definition.  as soon as I selected the correct plane, all else worked.

    enjoy

    M
    MarkEvans1-VisitorAuthor
    1-Visitor
    September 25, 2015

    Thanks Ron. I hadn't tried re-ordering features in the model tree but this definitely did the trick.
