ProE thread hole issue

  • September 28, 2016
  • 20 replies
  • 6830 views

Hi,

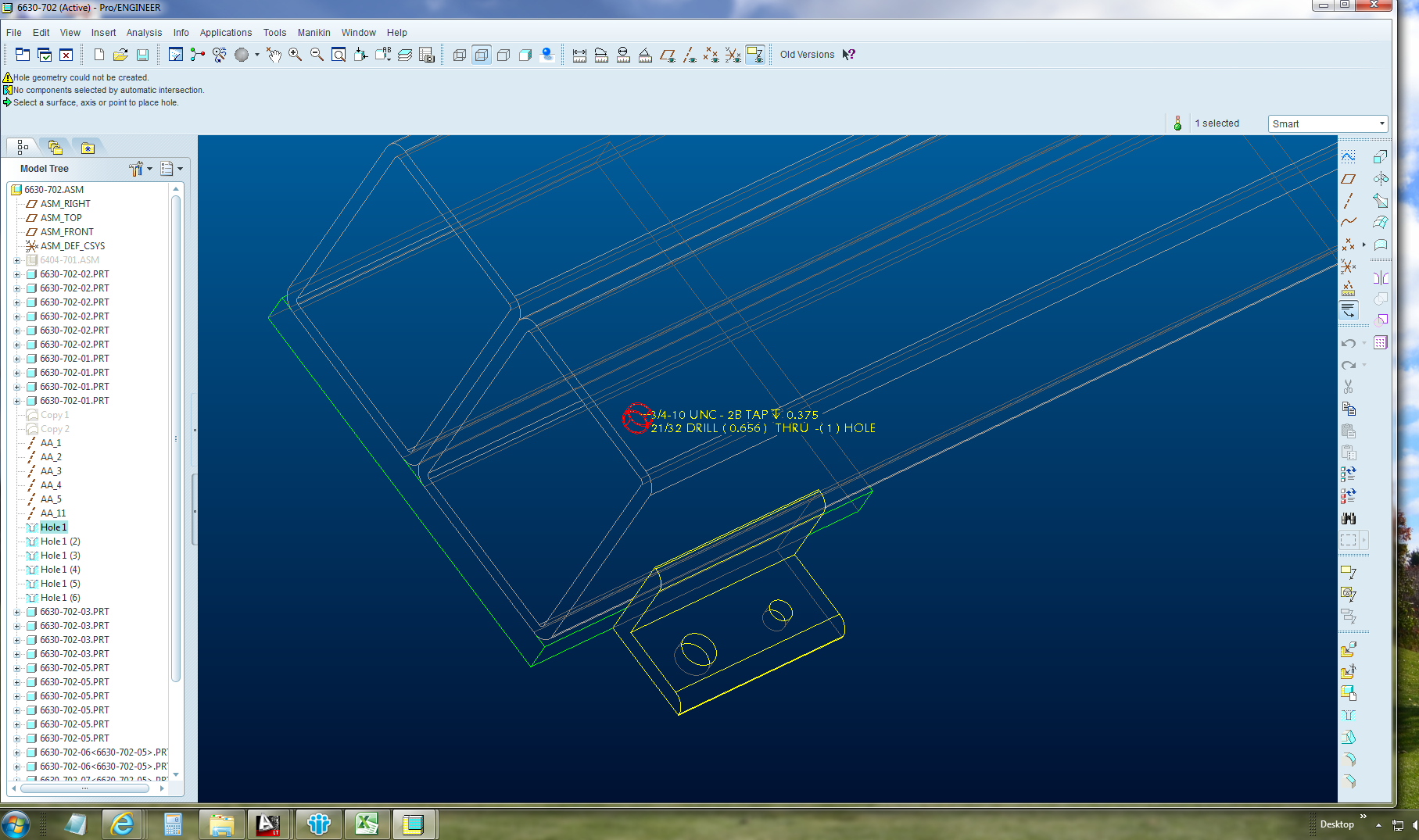

I made 3/4-10 UNC thread hole on the part in assembly:

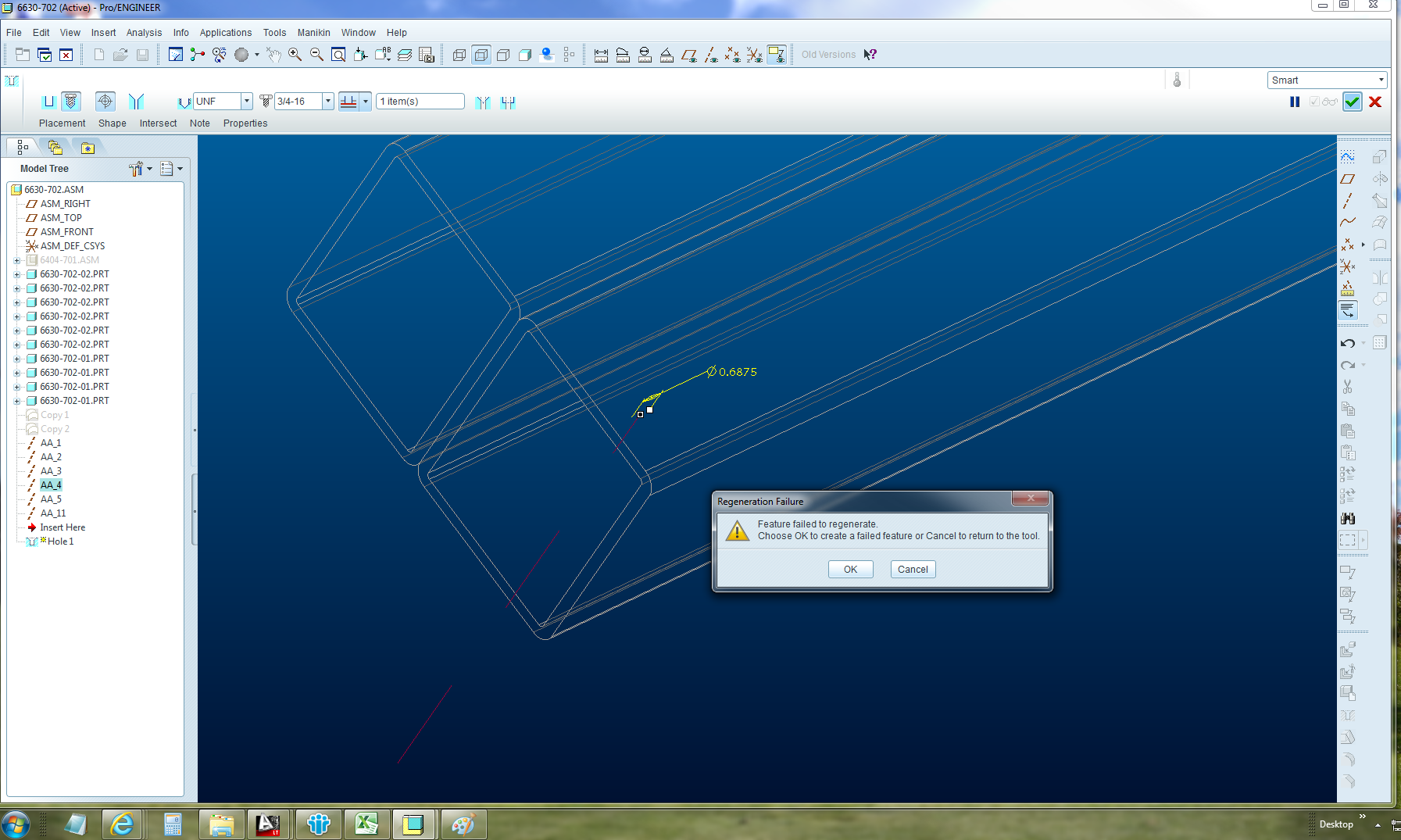

When I want to change thread hole as 3/4-16 UNF, got failue:


Attached file.

Please let me know how to fix this issue, Thanks,

Bill


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by rabraham

Its accuracy issue.

See attached image for the error.


20 replies

Chris3
Chris321-Topaz I
21-Topaz I
September 29, 2016

It likely has to do with your hole files. Review your hole table files and make sure that they make sense (ie having a chamfer diameter smaller than the hole diameter would cause a failure).

T
TomD.inPDX17-Peridot
17-Peridot
September 29, 2016

I don't open RAR files so I am guessing here, but some of the hole files have 0 in their chamfer values.  Review the preview and see if there are errors under options.

B
bxu1-VisitorAuthor
1-Visitor
September 29, 2016

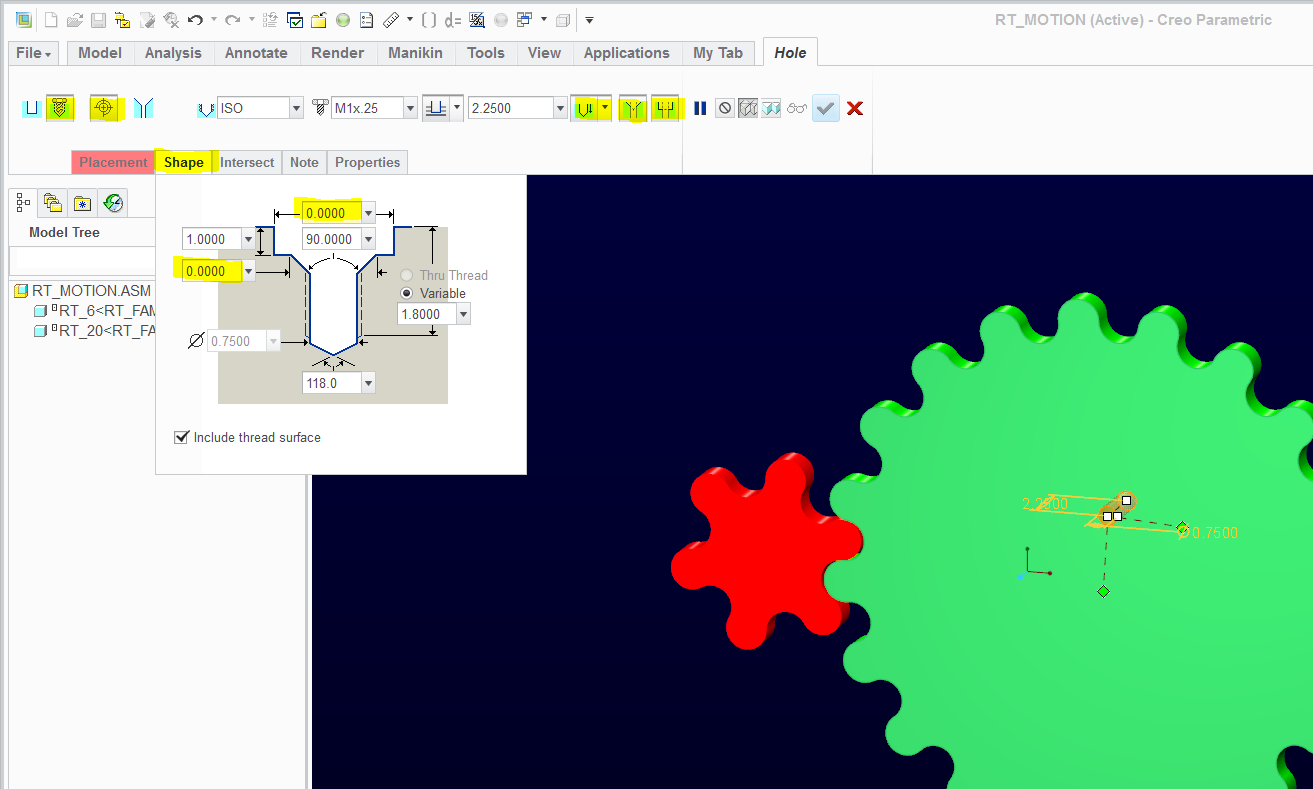

Chris, Antonius, where is chamfer setting under hole options? Thanks, Bill

T
TomD.inPDX17-Peridot
17-Peridot
September 29, 2016

Shape is one, but you also have to activate the higher level options.

I also noticed you are doing an assembly cut, and that can cause reference issues when you change the hole.

In reality, Creo deletes the previous hole and creates a new one.  In this process, some of the previous references are lost.

R
rabraham1-VisitorAnswer
1-Visitor
October 4, 2016

Its accuracy issue.

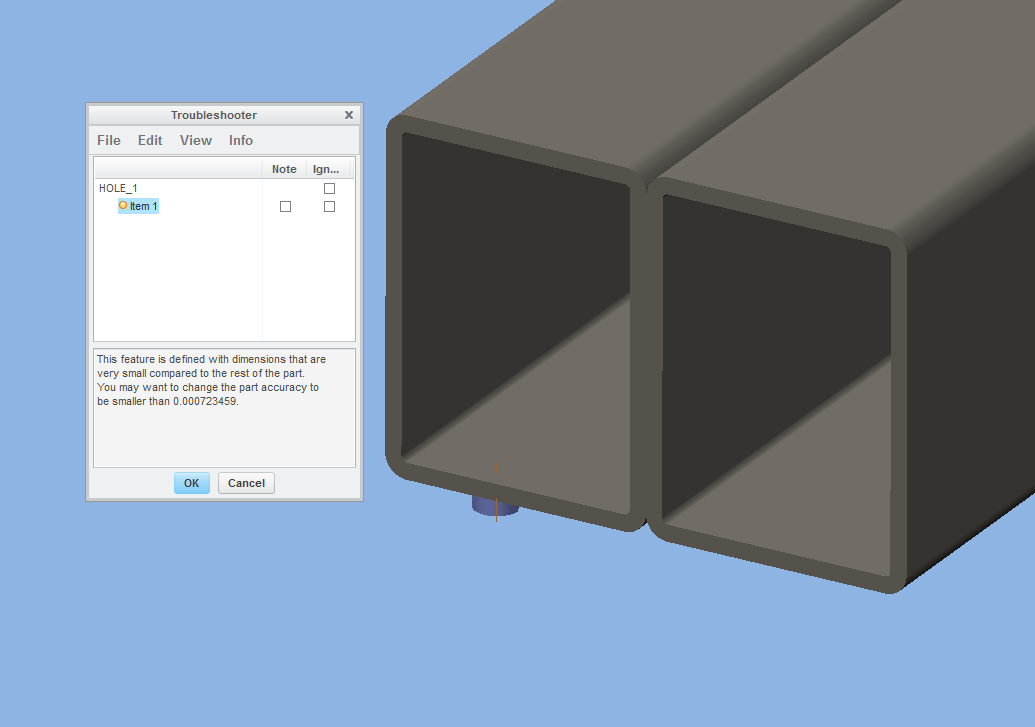

See attached image for the error.


B
bxu1-VisitorAuthor
1-Visitor
October 4, 2016

Stephen and Rabraham, you are right. I changed accuracy to 0.0001 in assembly and sub-assembly, it works. Thanks!

R
rabraham1-Visitor
1-Visitor
October 4, 2016

Not a good method to follow.

I suggest to add the holes at part level which can be done without changing accuracy.
