Question

projecting curves on to surafce edges.

  • September 16, 2013
  • 1 reply
  • 3306 views

In Creo2 can you project curves on to surface edges (or extents)? Or do you need the mold design package for that?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

I
Inoram14-AlexandriteAuthor
14-Alexandrite
September 16, 2013

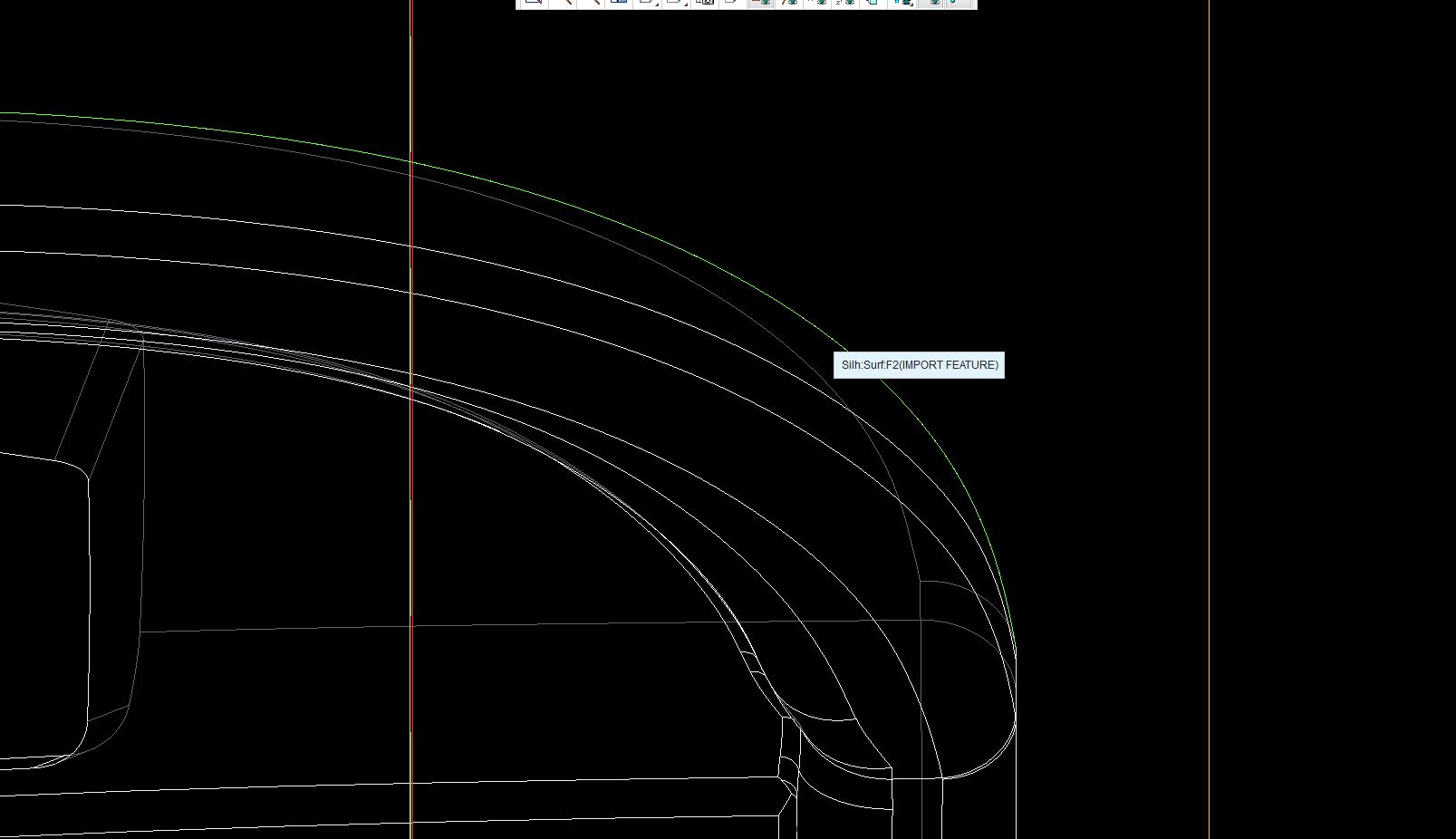

silhouette edge that is...


J
James621-Visitor
1-Visitor
September 16, 2013

In Trim feature, on the dashboard menu, there is a trim by silhouette option where you can then set a triming direction.

The direction reference should be a trimming object such as a datum plane, once you select the datum plane such as your parting plane then you will be able to select this silhouette option.

I
Inoram14-AlexandriteAuthor
14-Alexandrite
September 16, 2013

Ah thank you, that does work, not as quick but it does work.
