Remove datum reference from dimension

  • August 18, 2016
  • 6 replies
  • 12410 views

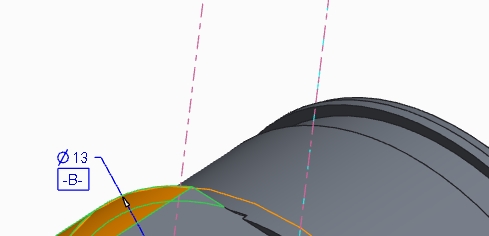

I want to remove datum B from the 13mm dimension shown in the image below. It seems to be attached to the feature somehow so the only way I can find to get rid of it is to delatet the feature.


The implementation of geometric tolerancing in Creo is pathetic and just what I've come to expect after 16 years using Pro/Engineer.

Sam


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by manjunathrv

try to remove the datum from the model properties:

6 replies

manjunathrv17-Peridot
17-Peridot
August 18, 2016

You can disconnect the datum and the dimension by changing the properties of the Datum B to unset as a Datum.

Sam813-AquamarineAuthor
13-Aquamarine
August 18, 2016

Thanks for getting back to me.

I know how to get to that option for an axis, but the datum B is attached to the feature and more specifically the dimension, and there is no mention of the datum tag when I go to the dimension or feature properties. It also doesn't seem to be listed in the annotations in the model tree. (I'm using Creo 2)

Sam

manjunathrv17-PeridotAnswer
17-Peridot
August 18, 2016

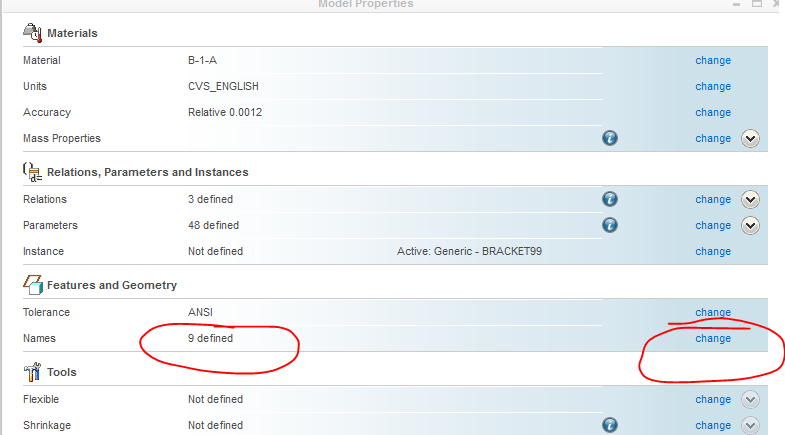

try to remove the datum from the model properties:

KenFarley
KenFarley21-Topaz II
21-Topaz II
August 18, 2016

I'm using Creo 2, and if I want to remove a datum from a dimension, I do the following:

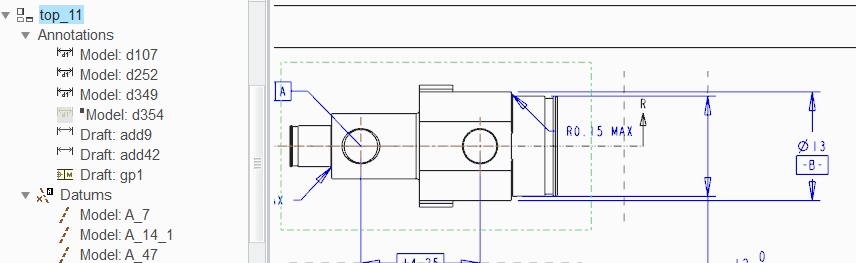

(1) Click on the "Annotate" tab. This will "turn on" the annotation features in the Drawing Tree.

(2) Determine which of the views listed is the one with your dimension in it.

(3) Expand the "Datums" item for that view, it should list "Model: C"

(4) Select "Model: C" in the Drawing Tree, then right mouse button to bring up and select "Properties".

(5) Now you can switch the datum from "In Dim" to some other option, etc.

Sam813-AquamarineAuthor
13-Aquamarine
August 18, 2016

Thanks to you both.

I managed to remove it from the drawing properties.

Unfortunately, the Drawing Tree method didn't seem to work as datum B isn't shown.


Is it me, or is this simply terrible user interface design? It's like its designed to be intuitive.

Thank you again,

Sam

manjunathrv17-Peridot
17-Peridot
August 18, 2016

great that it worked
