Hello,

I do not know much about the Creo Schematics. My company uses Eagle and Gerber files. With Creo Schematics software, can I import in Eagle and Gerber files into Creo Schematics? Can I export out these file formats out of Creo Schematics?

2D Drawing

Best answer by Gaby_K

Hi,

Creo schematics does not support these file types

Supported files for import :

*.CGM
*.DXF
*.DWG
*.SHE
PCB net data as CSV file
Creo Schematics sheets and Creo Schematics design properties

Supported files for export :

*.CGM
*.DXF
*.DWG
*.SHE
*.XML
*.PDF
EDA - new in Creo Schematics 3.0
HPGL
Creo Schematics sheets and Creo Schematics design properties

Regards,

Gaby

G

Gaby_K

Answer

12-Amethyst

Hi,

Creo schematics does not support these file types

Supported files for import :

*.CGM
*.DXF
*.DWG
*.SHE
PCB net data as CSV file
Creo Schematics sheets and Creo Schematics design properties

Supported files for export :

*.CGM
*.DXF
*.DWG
*.SHE
*.XML
*.PDF
EDA - new in Creo Schematics 3.0
HPGL
Creo Schematics sheets and Creo Schematics design properties

Regards,

Gaby

S

SMMV

1-Visitor

Hi,

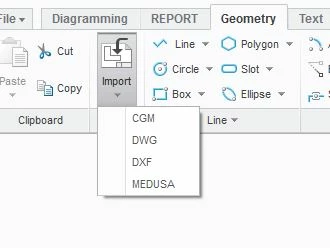

I am using Creo schematic 3.0. We are very new to use creo schematics. Can we import .she file into schematic? That option is not available. If so, please let me know how to import the file.
