SHEET METAL OR WHAT?

  • June 16, 2016
  • 8 replies
  • 2451 views

Hi,

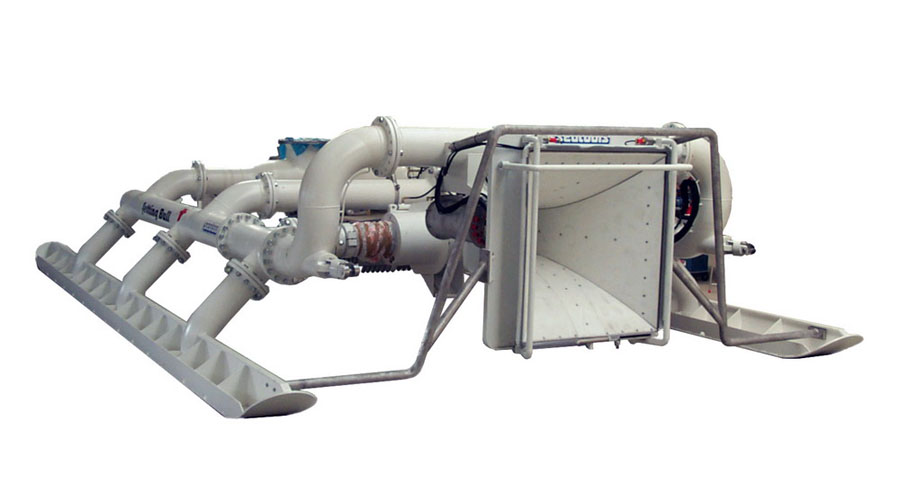

I want to draw the bell mouth as per photo below. Can someone guide me please. Drawing the curve and extrude is simple but how do i bend the extruded part to get bell mouth shape?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by StephenW

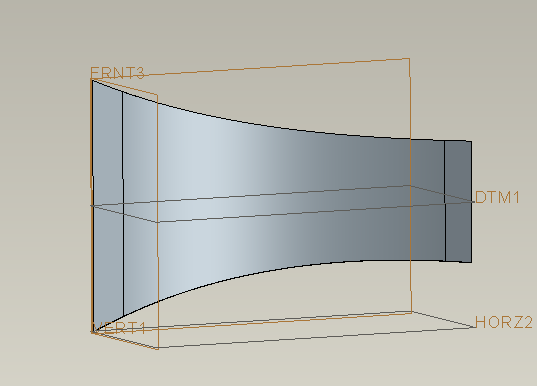

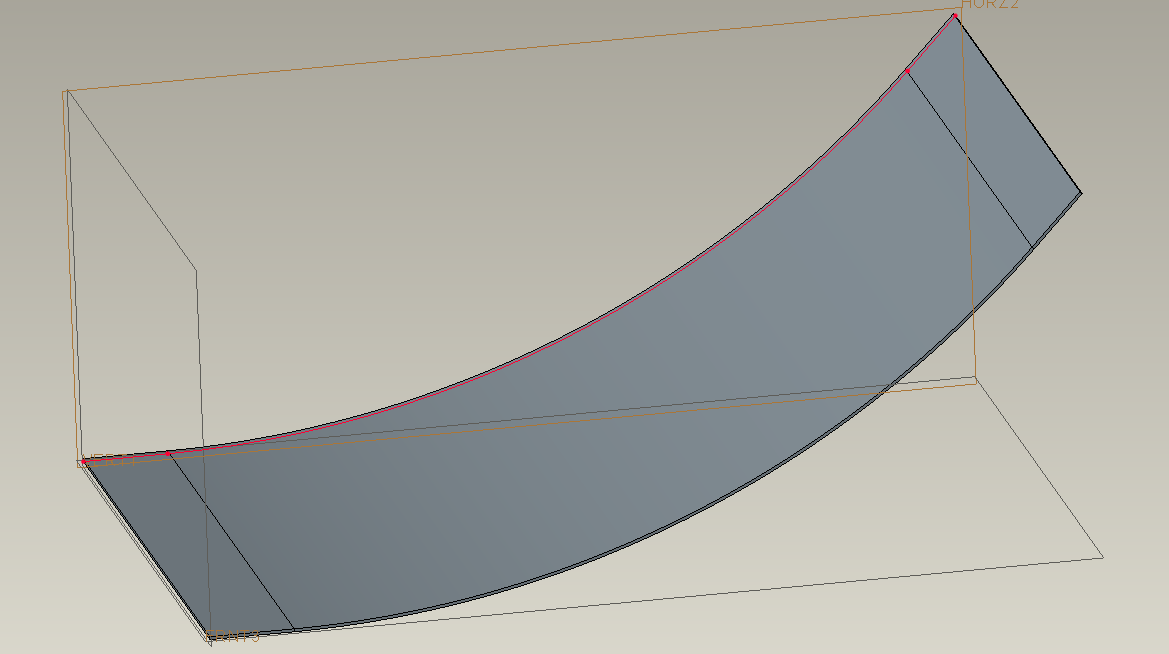

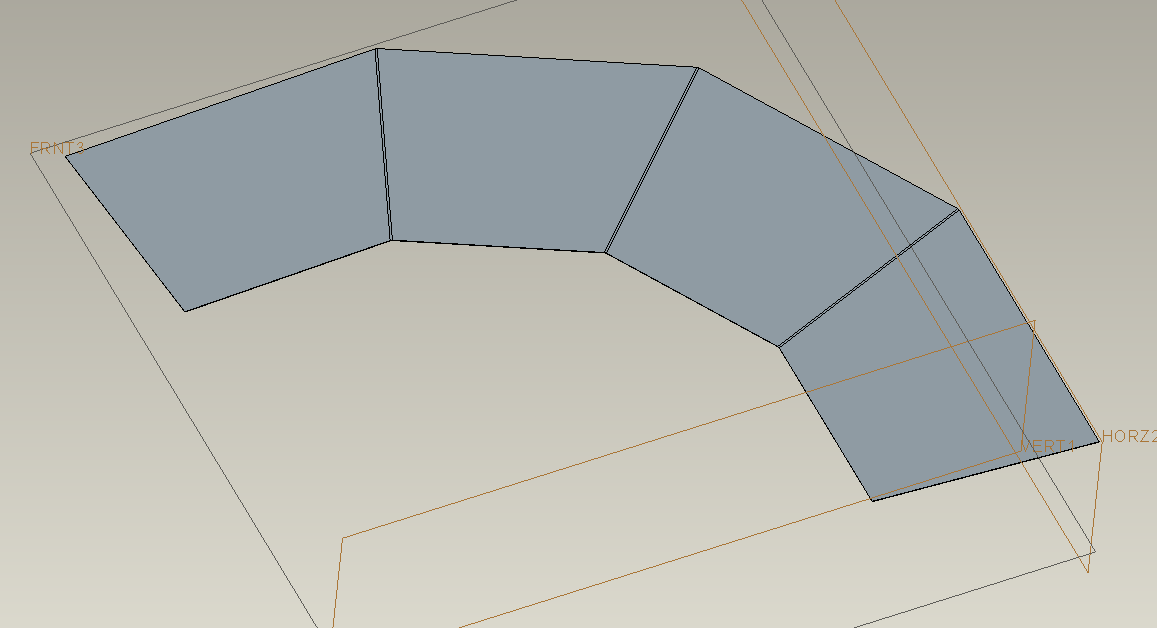

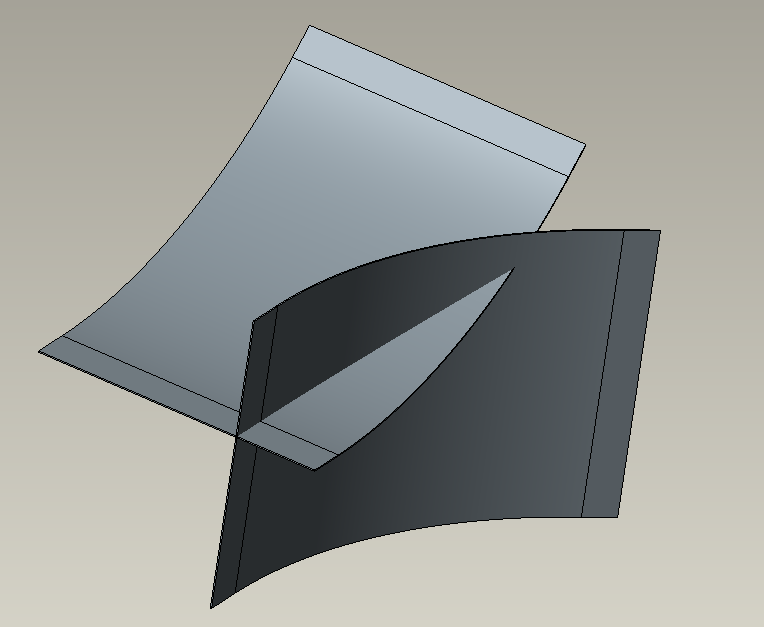

Oh, I didn't see the curve in the part. Make the parts in the side view (red line). Trim the edges to connect to the other parts. It would be easy to see how to trim the parts if you assemble them together.

8 replies

RaphMORIN16-Pearl
16-Pearl
June 16, 2016

Isn't it made of 4 parts welded together ?

eres1-VisitorAuthor
1-Visitor
June 16, 2016

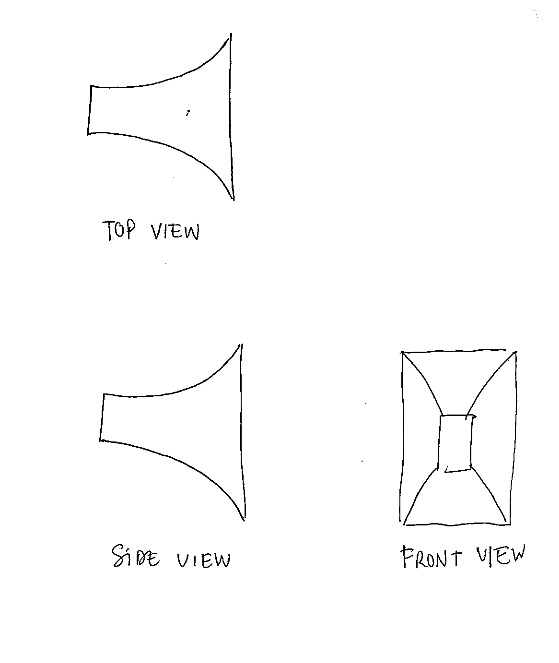

yes you are right. How do you draw each part? See more detail below and try to draw it. If you manage to draw it, please share with me how you do it. My problem arise because each part need to be bend.


manjunathrv17-Peridot
17-Peridot
June 16, 2016

it looks like 4 sheet metal parts that are bent and the welded together...

eres1-VisitorAuthor
1-Visitor
June 16, 2016

How do you bend it?

StephenW
StephenW23-Emerald III
23-Emerald III
June 16, 2016

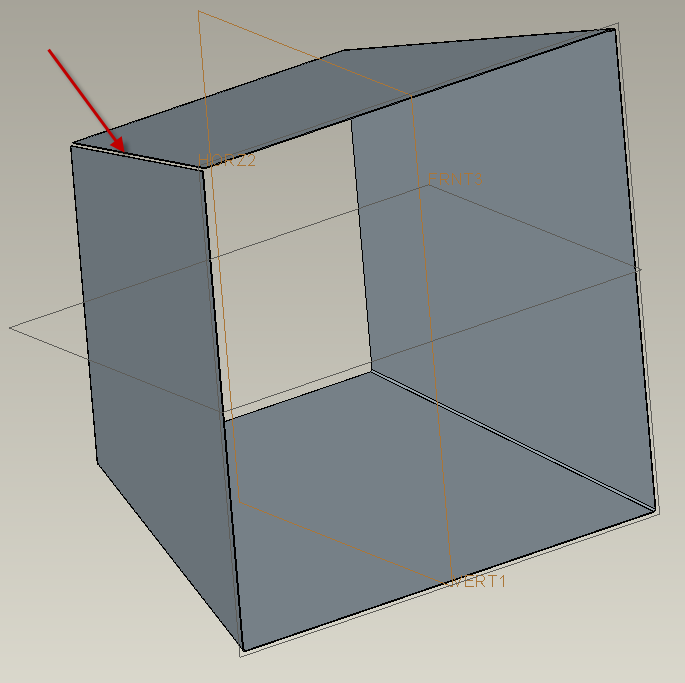

I used sheet metal... blend feature. Ripped the one corner (shown with arrow). Made a flat pattern. Took about a minute. The ripped corner would likely be welded.

Simple and manufacture-able.

eres1-VisitorAuthor
1-Visitor
June 16, 2016

thanks Wiliam, It would be simple if just like what you showed. Unfortunately for our application, we need it to be curved as what i showed in my sketch.
