sheetmetal bending with extra feature

  • March 10, 2017
  • 1 reply
  • 1294 views

Hello everyone,

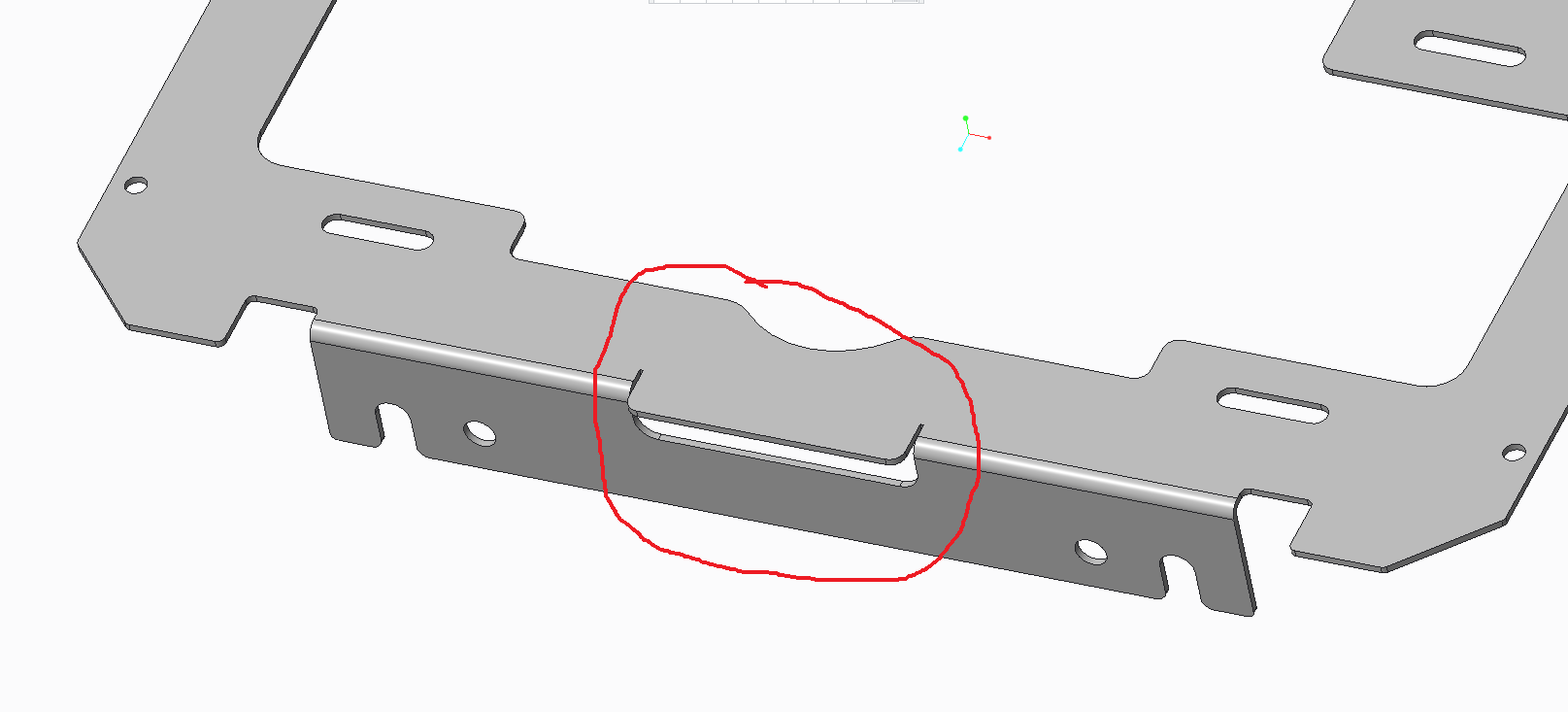

I´m trying to recreate the bending you can see in the picture but I´m clueless about how to create the feature in the middle which is not part of the bending. I am open for any tips or ideas.


Best answer by BenLoosli

Model the bent part with that area being a cutout, then add the flange. Do a flat pattern view to verify that you have the clearances around the tab in the flat.

1 reply

B
BenLoosli23-Emerald IIIAnswer
23-Emerald III
March 10, 2017

Model the bent part with that area being a cutout, then add the flange. Do a flat pattern view to verify that you have the clearances around the tab in the flat.
