Sheetmetal bending with fixed OD

  • January 6, 2017
  • 3 replies
  • 2962 views

Hi,



Creo Parametric 3.0

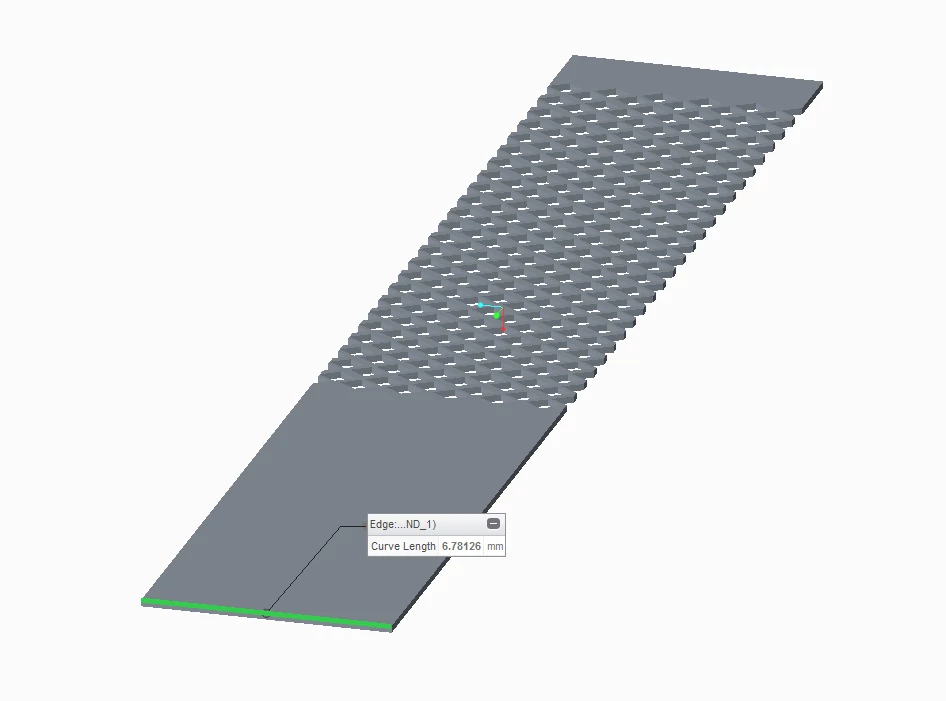

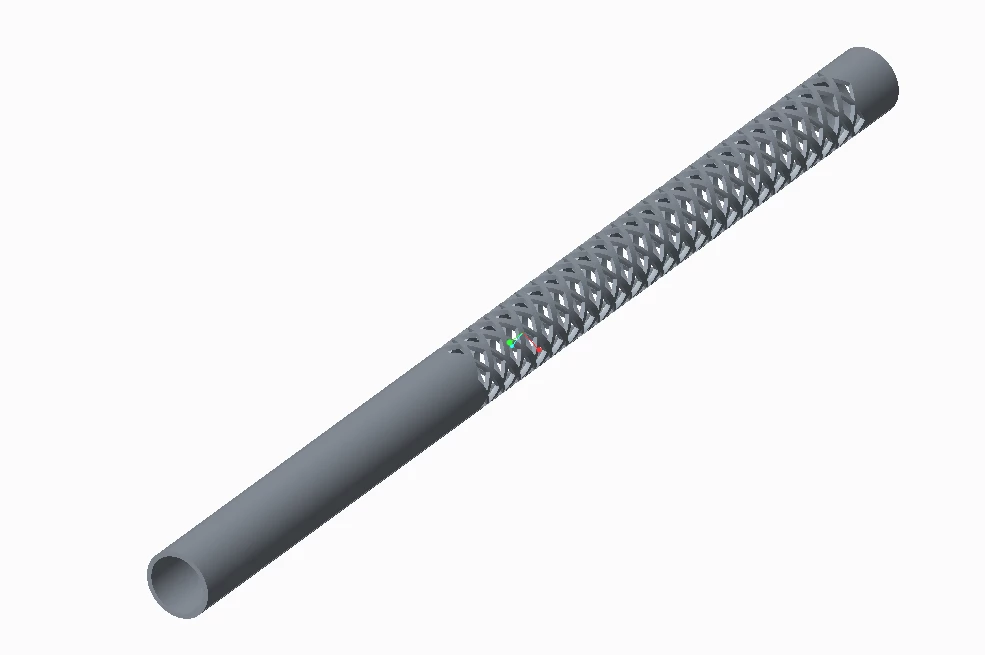

I need to make a cylinder with a laser cut pattern. I thought the easiest way would be to revolve the cylinder in sheet metal and then flatten/unbend. When I have the flat sheet metal, I can sketch and extrude my pattern. The only problem is that creo takes bending factors into account. When I flatten/unbend a cylinder with Ø2,4 mm, the surface I get is not the circumference length that I need. I need a cylinder with an OD of Ø2,4 mm and when flat/unbend, a surface of 7,54mm (2,4*pi). Does anyone have a solution to this?



Thanks,

Kristoffer J

Best answer by kdirth

I believe you want the outside surface of your cylinder not to change.  A k factor of 1 will get the desired result.

3 replies

StephenW
StephenW23-Emerald III
23-Emerald III
January 6, 2017

Change your k factor to .5 which is centerline bend.

I believe the k factor is under file prepare model properties.

    kdirth
    kdirth21-Topaz IAnswer
    21-Topaz I
    January 6, 2017

    I believe you want the outside surface of your cylinder not to change.  A k factor of 1 will get the desired result.

    There is always more to learn.
      K
      kjohnson-31-VisitorAuthor
      1-Visitor
      January 9, 2017

      Perfect, thanks to both of you.

      The K factor was standard .5 and when changed to 1 I got the dimension i needed.

      BR Kristoffer J
