Sheetmetal Pattern Problem

  • October 9, 2014
  • 2 replies
  • 1270 views

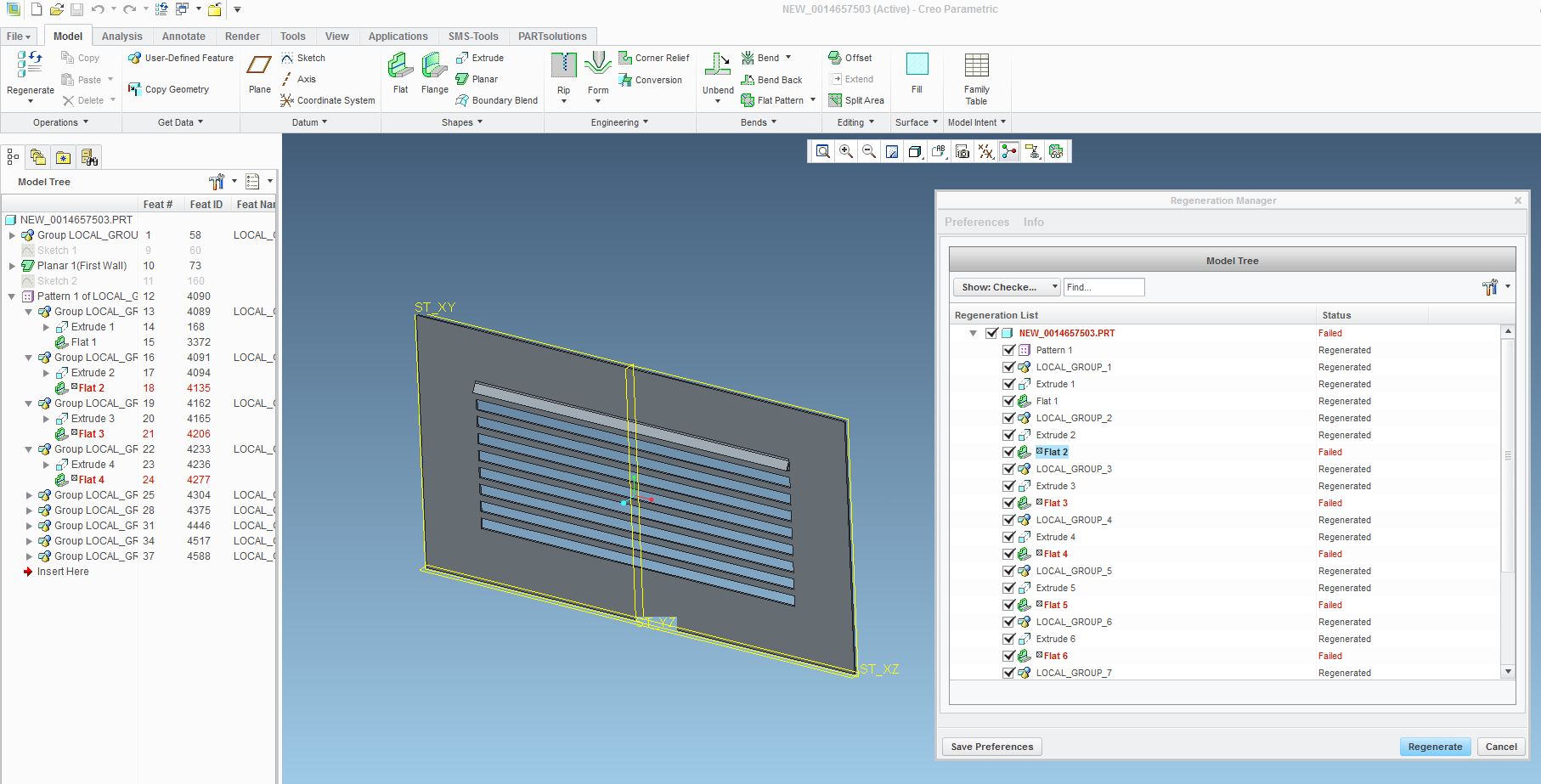

Ok, I'm trying to create a patter of a cutout for a motor cover. I need ventilation on the backside of the cover for heat dissipation. When trying to pattern the Extrusion and Flat, the Extrusion is created but not the Flat. I get regeneration errors stating that the Flat has failed. See below.


The error states "References to failed feature are not allowed". What could be the reason for this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Floyd,

Try to pattern the extrude cut first and later pattern the flat wall (this will be reference pattern). Or use flange wall instead of flat wall.

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
October 9, 2014

Floyd,

click Use advanced editor link in the top right corner of Reply window and upload your part using Browse button under text area. I hope somebody will check your model.

Martin Hanak

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
October 9, 2014

Floyd,

Try to pattern the extrude cut first and later pattern the flat wall (this will be reference pattern). Or use flange wall instead of flat wall.
