Sheetmetal unbend cylinder with profile

  • December 8, 2014
  • 2 replies
  • 4443 views

Afternoon All

Is it possible to unbend a sheet metal cylinder with a profile? I have fiddled with this all day and tried a variety of options with no luck.

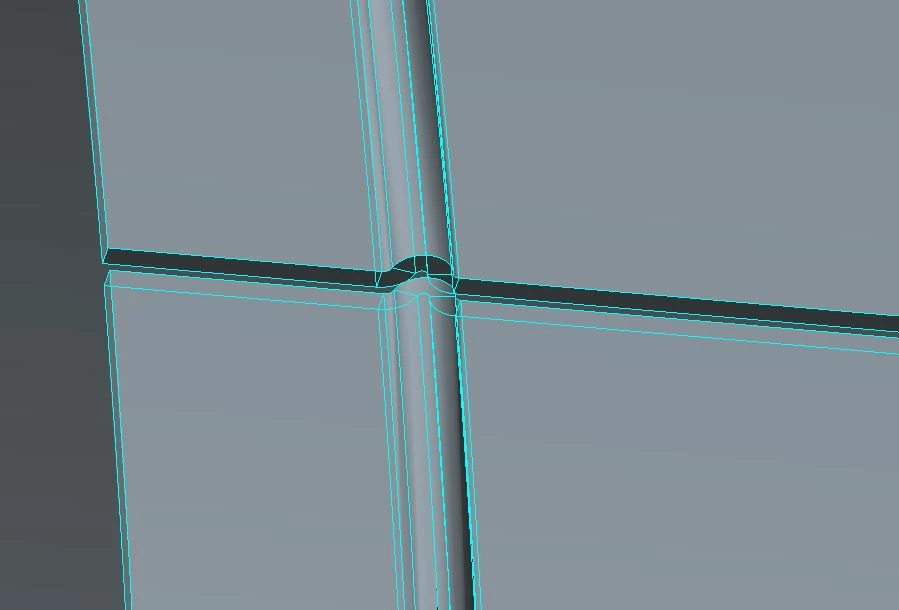

The attached picture shows the profile I created when revolving the cylinder. I want to unbend the cylinder to put more sketched forms on it.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

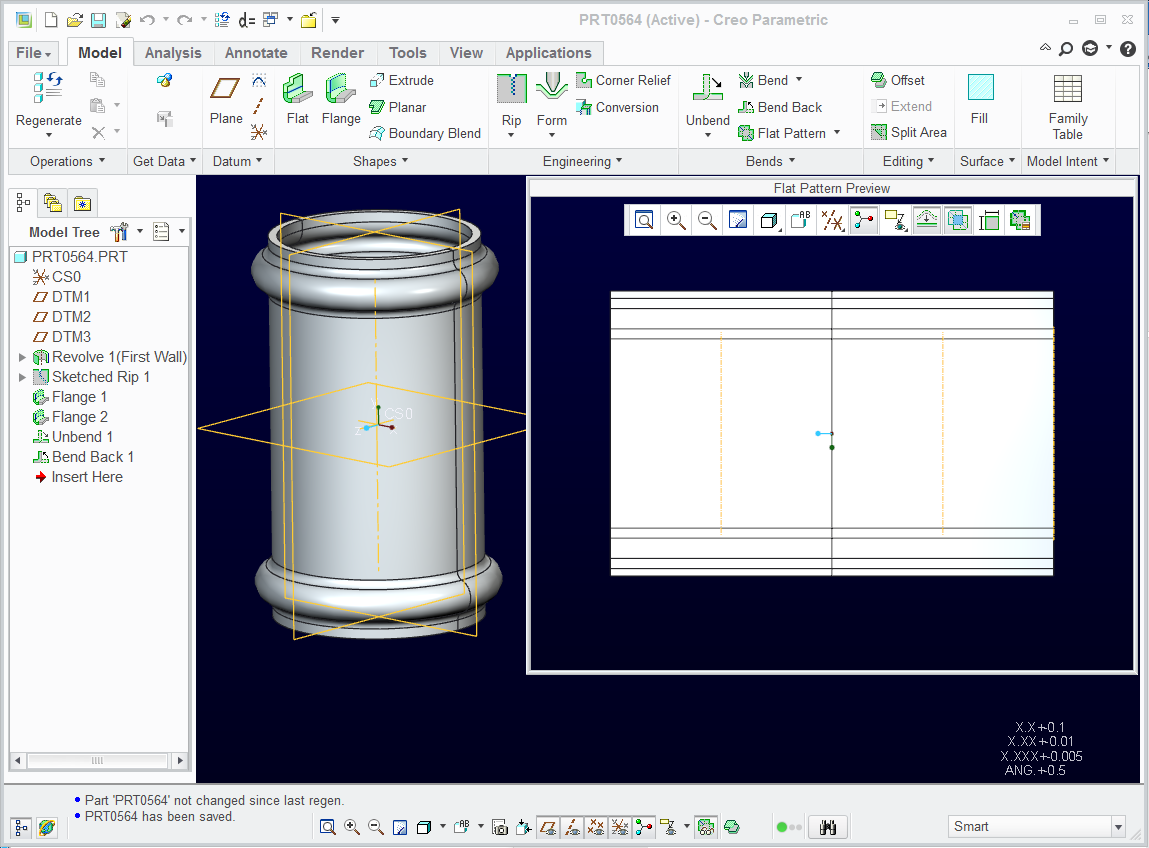

and another... Creo 2.0 attached.


2 replies

D
dschenken1-Visitor
1-Visitor
December 8, 2014

Is there a picture of the entire part, not just a small piece?

D
DieselPig1-VisitorAuthor
1-Visitor
December 9, 2014

Hi David

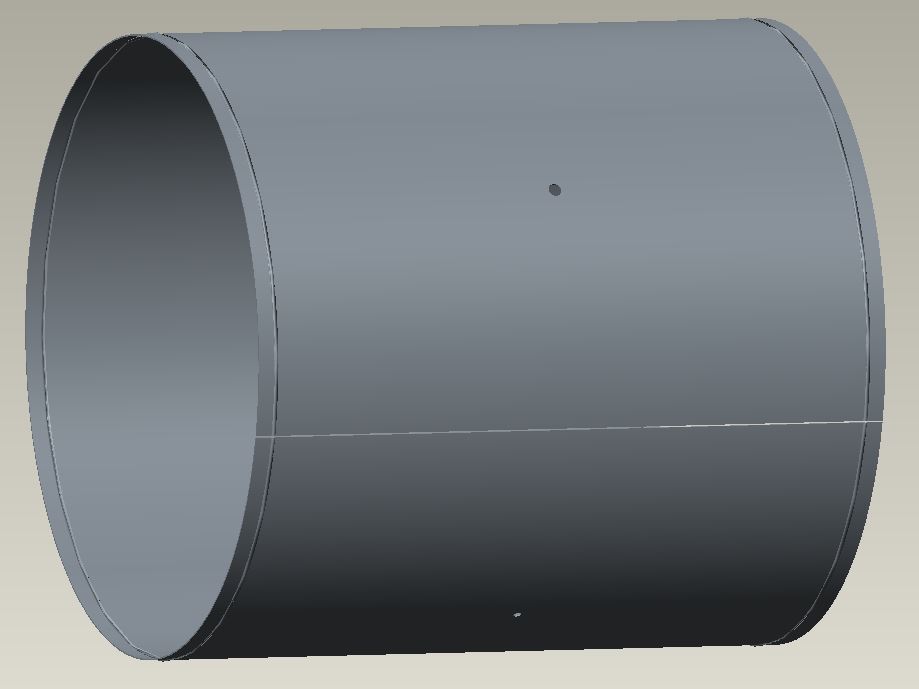

Whole part view.


M
mbalasubramaniy1-Visitor
1-Visitor
December 9, 2014

Have you tried cross section driven unbend....it moght work...but it also depends on the neibouring feature try to attach the whole model's image

D
DieselPig1-VisitorAuthor
1-Visitor
December 9, 2014

Hi Manoj Kumar

Yes I have tried cross section unbend but I could not get it to work. Any help is greatly appreciated.

Some history:

I started off with a plain extruded cylinder and attempted to use a sketched form for the profile but it won't run to the edges.

Then a revolved part as above with the profile but this wont unbend.

T
TomD.inPDX17-Peridot
17-Peridot
December 9, 2014

You might try a user defined flange. If I am understanding your image correctly, the flange would be along the diameter with the "lump" defined in the flange sketch.

I think the section unfold requires a planar surface:

http://help.ptc.com/creo_hc/creo30_pma_hc/usascii/index.html#page/pma/sheetmetal/Your_Design/About_Cross_Section_Driven_Unbends.html
