Simulation of an assembly - How to see the stress of each parts ??

  • June 24, 2015
  • 1 reply
  • 2241 views

Hello all,

I make a simulation of an assembly and when i see the stress results (von mises) it only shows the global values.

Is it possible to have the stress results of each parts ??

Thanks for your help

Olivier


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Chris3

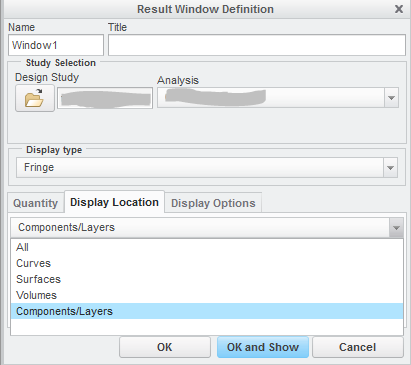

In the result definition window, click the display location tab and then select components and use the buttons at the bottom to hide or show them. This will allow you to isolate individual components.



1 reply

Chris3
Chris321-Topaz IAnswer
21-Topaz I
June 24, 2015

In the result definition window, click the display location tab and then select components and use the buttons at the bottom to hide or show them. This will allow you to isolate individual components.



    O
    oflou1-VisitorAuthor
    1-Visitor
    June 24, 2015

    Thank you Christopher,

    That's exactly what i want ...
