Question

sketcher mode, equal dimensions

  • July 27, 2012
  • 11 replies
  • 8796 views

wf4


In sketcher mode, is there a way to make several dimensions of equal value? If you look at the attached example, is there a way to make one 1.5 dimension equal/dependent on the other 1.5 dimension?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

11 replies

nrollins2-Explorer
2-Explorer
July 27, 2012
If you are in WF5 (WF4 too??) you can use the "equals" constraint on
dimensions as well as entities.



-Nate


nrollins2-Explorer
2-Explorer
July 27, 2012
Hmmm.

If it doesn't work in WF4, I have (in WF2 and earlier) added lines normal
to the "wall thickness" and set them to construction lines and dimension one
of them and set the construction lines equal length.

verstehen?

kapisch?

entiendo?




ptc-2678781-VisitorAuthor
1-Visitor
July 27, 2012

thanks. i think sketcher relations will do the trick

nrollins2-Explorer
2-Explorer
July 27, 2012

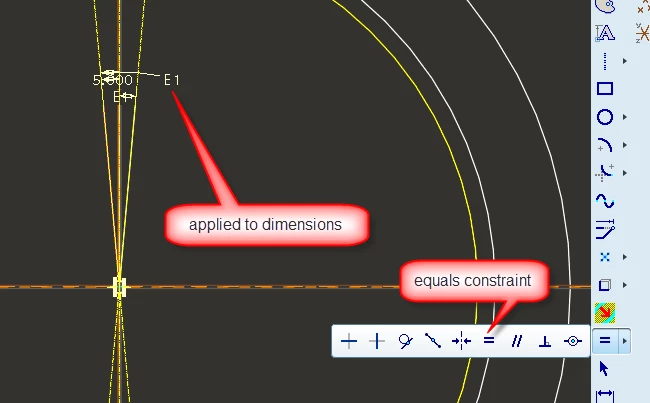

Nope - doesn't work in WF4:








dgschaefer21-Topaz II
21-Topaz II
July 27, 2012
The equal constraint doesn't work on dims in WF4, that was new in WF5.



However, you can create relations in sketcher. Click tools -> relations
and the dims will flip to show their symbols and you can write a
relation like sd1=sd2.



That said, I don't like to use them because while they do what you want,
they are a 'buried' driver of design intent. What I mean is when
editing the feature; it isn't obvious what's driving that dim. Not only
do I have to actually go into the sketch, I have to then go into the
relations to see what's happening. Relations have their place, but if I
can create the design intent without them, I will - especially sketcher
relations.



I try to use construction geometry where ever I can to drive things like
this. In your example, a construction circle on the intersection of the
two lines and tangent to both references would make those distances
equal and eliminate one of the dims.



(Phooey, while I was typing I see that Nathan essentially posted the
same suggestion. :-S)



Doug Schaefer
nrollins2-Explorer
2-Explorer
July 27, 2012
I vote for the construction line method - it is more visible and accessible
than relations for fixing when it breaks.


StephenW
StephenW23-Emerald III
23-Emerald III
July 27, 2012
I second that vote!!! Sketcher relations are definitely "hidden intent"
ptc-2678781-VisitorAuthor
1-Visitor
July 27, 2012

i see the difference. construction lines are definitely the way to go!

nrollins2-Explorer
2-Explorer
July 27, 2012
But you added the construction circle method - what I use for equally
spacing features - holes along a rectangular flange for example.


llie17-Peridot
17-Peridot
July 27, 2012
Nathan,

It is not possible in WF4, but is in WF5. In WF4 you can only add your
line, throw dimension and make them both the same number by typing it in.



Lance J Lie
Information Technology
SAS IT Info. Solutions App. Eng.
Space and Airborne Systems
Raytheon Company

+1 310.616.1551 (office)
+1 310.426.4968 (cell)
+1 310.647.0315 (fax)
-

2000 E. El Segundo Blvd.
El Segundo, CA 90245 USA
www.raytheon.com



Raytheon Sustainability

This message contains information that may be confidential and privileged.
Unless you are the addressee (or authorized to receive mail for the
addressee), you should not use, copy or disclose to anyone this message or
any information contained in this message. If you have received this
message in error, please so advise the sender by reply e-mail and delete
this message. Thank you for your cooperation.
