Surface modelling to create curved glass

  • April 29, 2015
  • 11 replies
  • 5744 views

Morning all,

I have a "surfacing" question that I hope someone can help with.

I'm attempting to reverse engineer a piece of glass to fit into an existing frame. The glass shape is quite complex in that its curved and twisted at the same time.

Step as follows below:

-Scanned the frame (on customers site) - this gives me a .stl file which is basically made up of load of facets.

-Import this into Creo.

-Then using a mixture of sketches, datum curves and boundary blends I have created a surface that replicates the new glass

-This surface can then be extended around the edges (to allow for some glass insertion into the frame, say 15 to 20mm all round)

-Then use 'thicken' to give the glass an 8mm thickness.

-Then 'flatten' to give a flat profile that is cut from sheet glass

-Lastly I would make a forming tool from the glass surface.

So, my problem is when I create the top and bottom sketches for the boundary blend I have to do these by eye. This looks OK at the start but the finished edge of the glass ends up slightly wobbly due to me picking the spline points by eye and then tweaking them to best suit the scanned frame data.

Can anyone give me any pointers on improving this? Or maybe a new / different approach to the whole job?

I have attached a Creo .prt file showing where I'm at with the scanned frame and the

Any help gratefully received.

Thanks, James


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by DeanLong

Send me a email contact and I will send you a rough cut vid directly. It will be specific to your part. I do not want to post potentially proprietary info for the world to see and get you in trouble with your boss.

Me: -

11 replies

D
DeanLong1-Visitor
1-Visitor
May 1, 2015

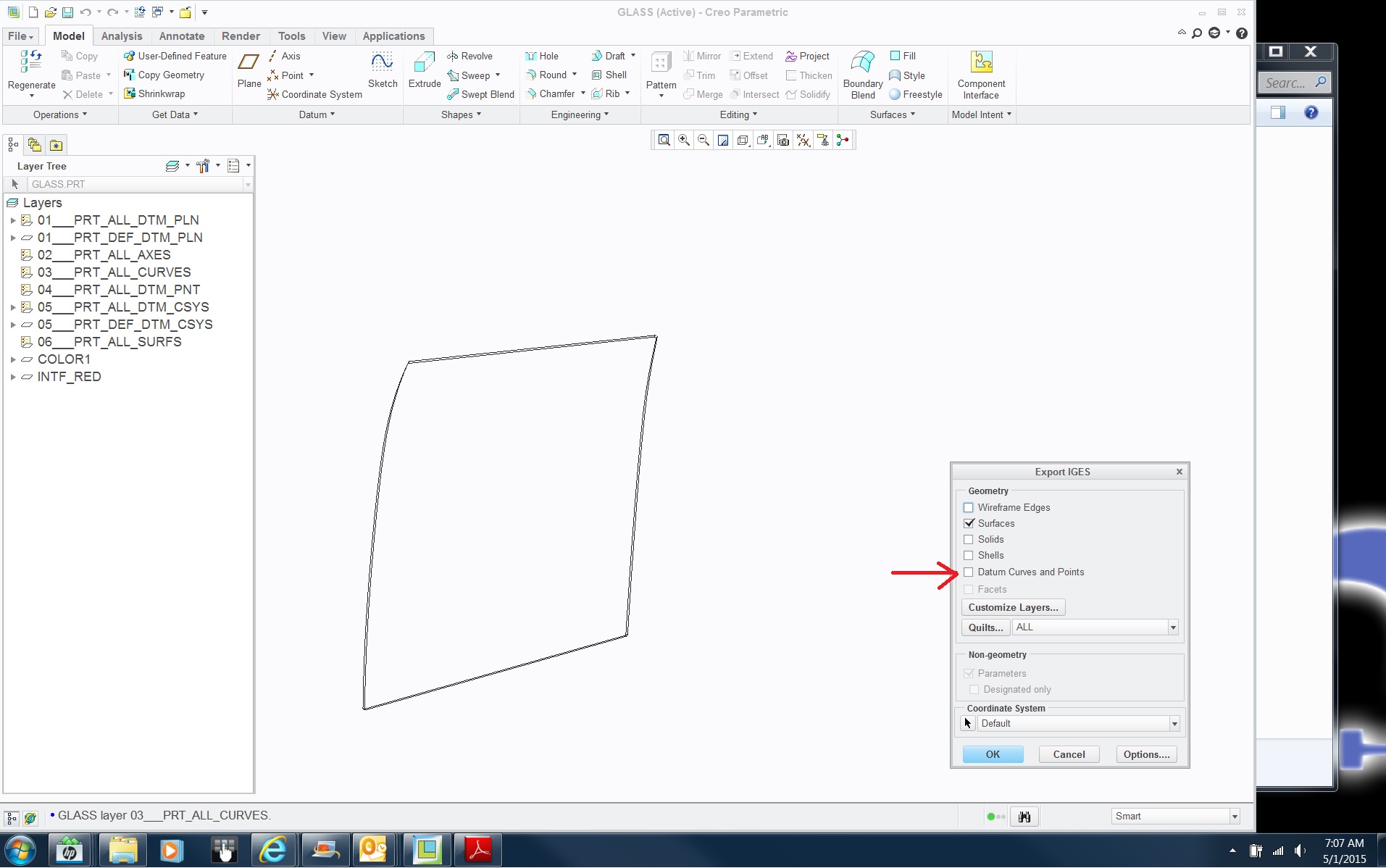

Save this as an IGES with curves. I only have Creo2.

I have done much surfacing (BIW, glass, etc...) on Pro (A.K.A. Creo)

J
JamesM1-VisitorAuthor
1-Visitor
May 1, 2015

Thanks for the reply.

.iges file should now be attached.

James

D
DeanLong1-Visitor
1-Visitor
May 1, 2015

Need curves too.



D
dgschaefer21-Topaz II
21-Topaz II
May 1, 2015

I've looked at the file, but don't have time to mess with it. The problem here is that this would likely be created as a larger surface and trimmed away. You don't have that luxury as you must meet the frame curves.


I've found that many spline points actually make creating a smooth surface harder. I'd try to create the end curves as simply as possible, perhaps two sketches intersected and try to use 2 point splines in each sketch. Add points only if you have to. The top & bottom sketches seem pretty simple, maybe just straight lines? Once you have simple curves, you should have better results.

Good luck, it's a deceptively simple looking part but I suspect will take some trial and error to get good results.

D
DeanLong1-Visitor
1-Visitor
May 1, 2015

James,

Since I cannot see the native 3.0 file I can't see exactly what is going on. But from what Doug Schaefer has said coupled from what I gather from the IGES, your boundary curves "order" is too high and you have said you are "eyeing it". You will need to use sweetened curves regardless of the final technique for the surface. Using sweetened curves is how you get the "wobble" out of your final glass. Surface development 101....do not use scans explicitly because...as you know...garbage in, garbage out. You have to approximate the scan curves with sweet (parsed) native curves.

Also, you should use the polygon option to pull the curve around instead of individual nodes. It will help get rid of the "chatter" in the curvature shown in the images. Also, I have found that if you are using "old school" Creo, (I.E. boundary surfaces instead of ISDX (actually both of those are "old school", but that is another discussion)) then the two curves driving the intersected resultant curve need to be created with care. Use the most parsed (lowest order) curves you can. Keep watching your curvature maps as you create your intersected curves too. Once you have the sweetened boundary curves all the rest are easy offsets.

If you need a video of the techniques I have explained, I can create one over lunch.


curves curvature.jpg

J
JamesM1-VisitorAuthor
1-Visitor
May 1, 2015

Hi,

Wow that's a fantastic answer, I had thought that the wonky curves might be troublesome...

The whole 'surfacing' is very new to me and I've just been trying to learn as I go. If you could do a video to support what you've said it would be a massive help!!!

use sweetened curves..... how or what does this mean??

polygon option to pull the curve around.....this is also a new one on me???

boundary surfaces instead of ISDXboundary surfaces instead of ISDX...Ditto on this also....sorry???


I'm suddenly realising I don't know as much about Creo as I thought I did. Really appreciate your guidance on this - thanks. James
