Hello,

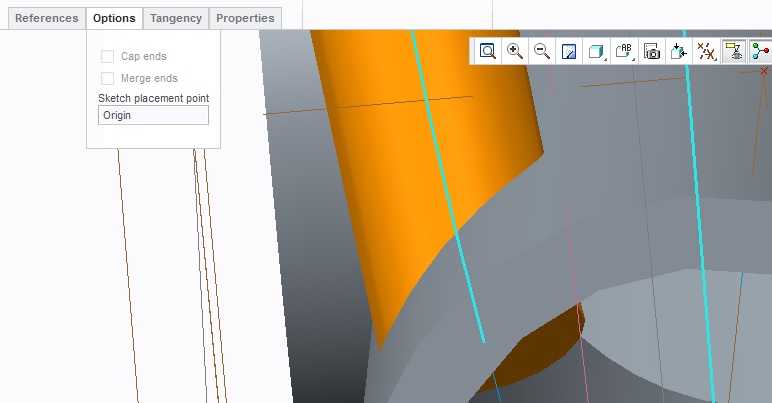

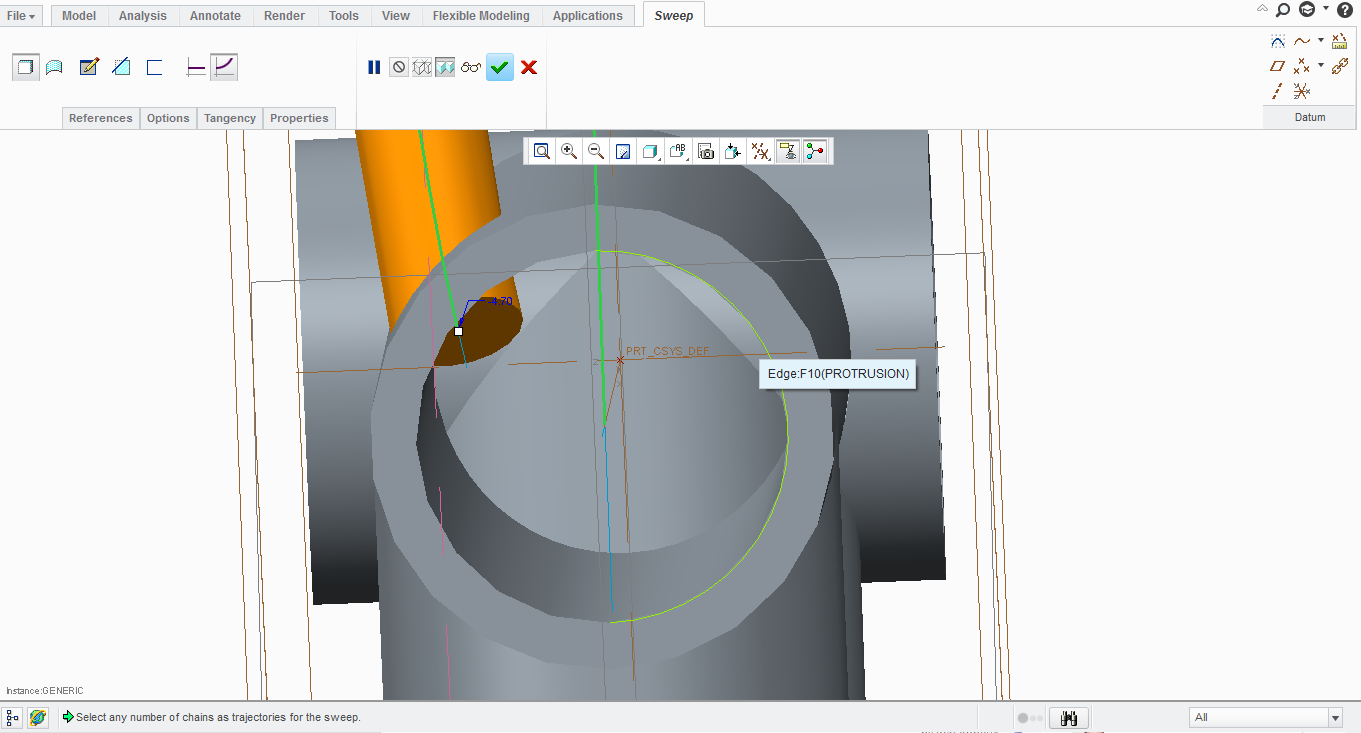

Is it possible to merge a Sweep feature at the same time that you are using the multiple trajectories option?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

Sweeping a solid into a solid automatically merges the two bodies.  What sweep doesn't have is an "up until" option.

Two ways to tackle this; 1) put the hole in the tube later or do it twice, 2) work with surfaces in your sweep and trim them prior to solidifying them.

2 replies

T
TomD.inPDX17-PeridotAnswer
17-Peridot
May 25, 2015

Sweeping a solid into a solid automatically merges the two bodies.  What sweep doesn't have is an "up until" option.

Two ways to tackle this; 1) put the hole in the tube later or do it twice, 2) work with surfaces in your sweep and trim them prior to solidifying them.

I
Inoram14-Alexandrite
14-Alexandrite
May 25, 2015

adding to the tackle list.

Or, you might be able to reorder the features in the model tree.

Or, you can remove the inside pieces with Remove if you have Flexible Modeling.

T
TomD.inPDX17-Peridot
17-Peridot
May 25, 2015

Why are my replies disappearing?

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
June 2, 2015

Sorry, did you say something??

    T
    TomD.inPDX17-Peridot
    17-Peridot
    June 2, 2015
