Hi

I'd like to visualize a symbol inside another symbol.

I use a symbol which is a note with several variable texts inside.

It's useful for me to customize the note in each drawing .

In the middle of this text it could be fine for me insert a standard symbol

e.g. inside the annotation symbol this is the text :

     ...

     THE PART SHALL BE MARKED WITH RECYCLE SYMBOL &sym(recycle) .

     ...

But it doesn't work. ( I have the symbol in memory).

Any idea ?

Thanks Pier


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

MartinHanak24-Ruby III
24-Ruby III
November 27, 2015

Hi,

your symbol == note ... why you do not save this note into text file for later import in another drawing ?

MH

pdiletti-21-VisitorAuthor
1-Visitor
November 27, 2015

Hi Martin

I don't understand what you mean.

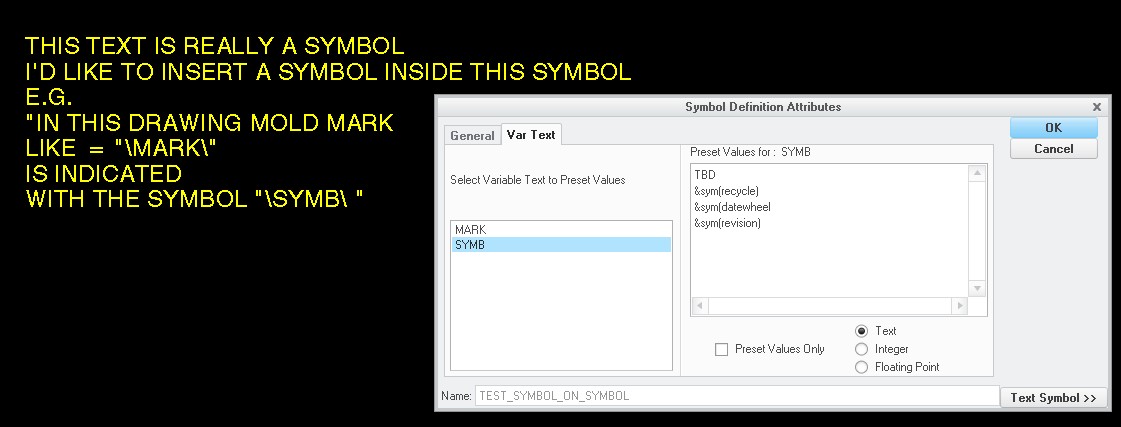

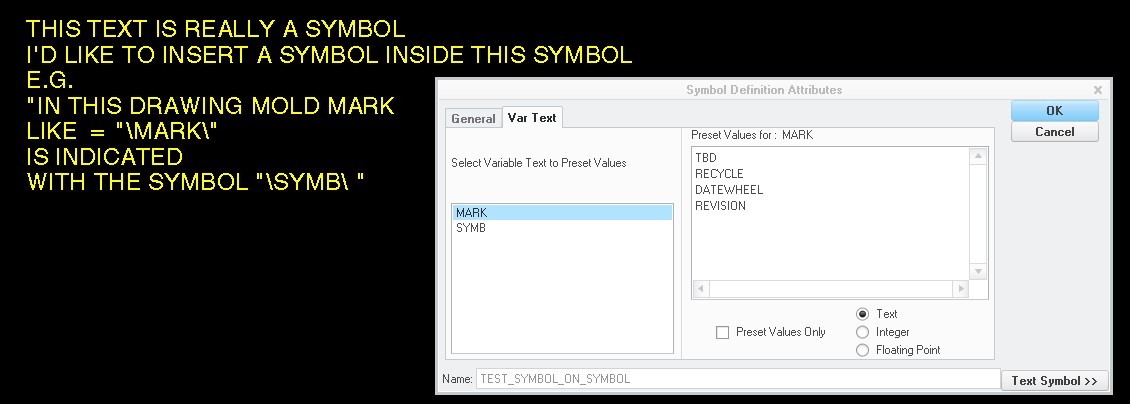

Anyway let me share two pics in order to explain my need.

Thanks

Pier


mender12-Amethyst
12-Amethyst
November 27, 2015

Confirming we don't have symbol -> note -> symbol recursion.  One approach that might be suitable to you is including the geometry+text of the sub-symbols within the main symbol, under a grouping.  Then the user placing the symbol could select the group that includes the desired sub-symbol.  Another approach that might be useful, but seems less likely, is placing the second symbol as offset to the first.
