Hello,

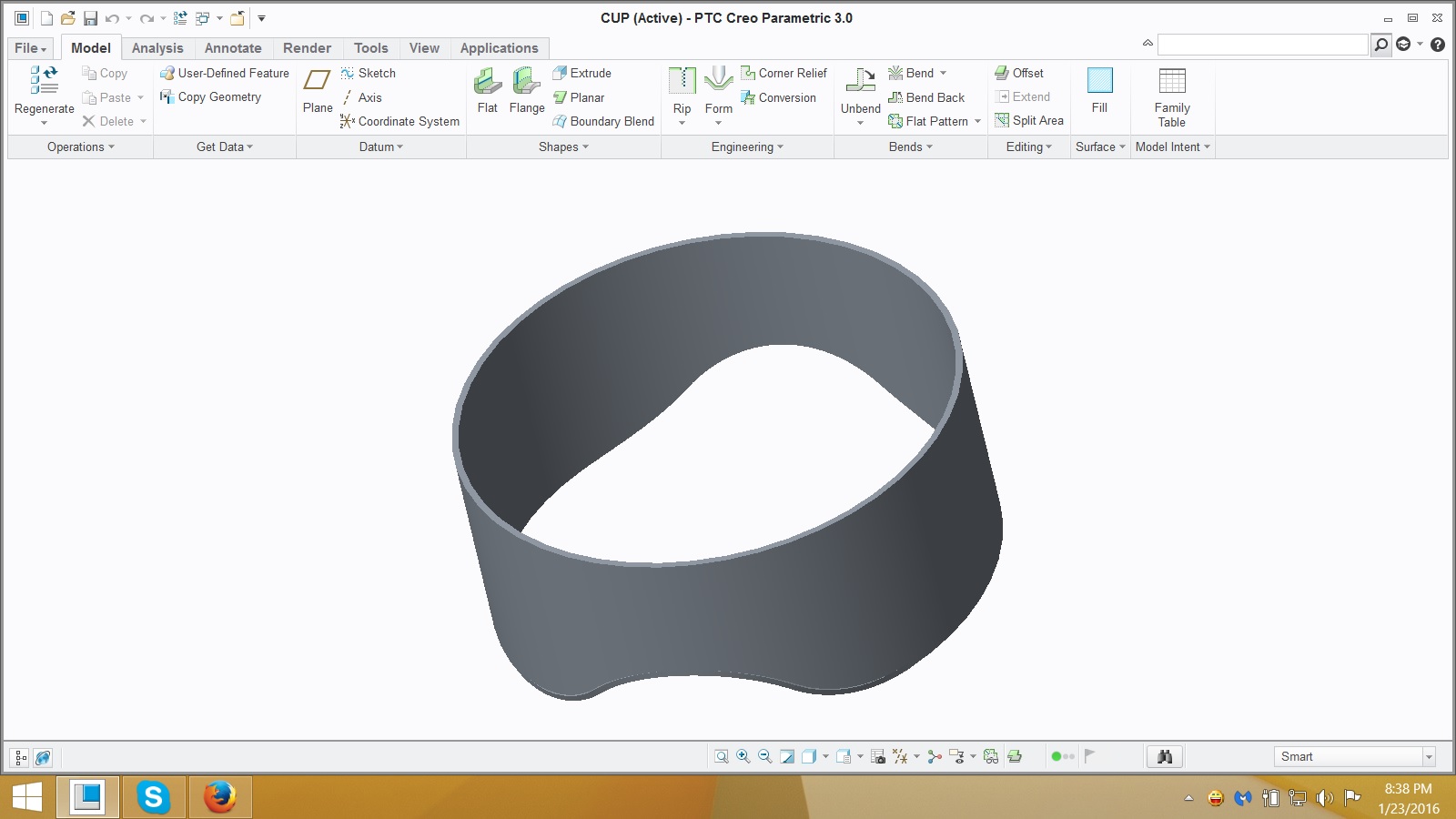

         how to unbend this part any one guide.



kind regard,






This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by SergeyGvozd

Hello!

It is necessary to do a little differently.

See the attached file.


@ I'm sorry for my english

12 replies

TomD.inPDX17-Peridot
17-Peridot
January 24, 2016

repeat making your part using extrude and extrude but use the sheetmetal template.

Then use Sketched Rip feature, and unfold/flat pattern will work.

aminhas14-AlexandriteAuthor
14-Alexandrite
January 24, 2016

I can't did you work on file than I will able to see?

TomD.inPDX17-Peridot
17-Peridot
January 24, 2016

I did convert your file and it did work.  The thickness has to be consistent and you must create a rip feature to make it unfold.  If you start with a sheetmetal part, it will work fine.

SergeyGvozd1-VisitorAnswer
1-Visitor
January 24, 2016

Hello!

It is necessary to do a little differently.

See the attached file.


@ I'm sorry for my english

aminhas14-AlexandriteAuthor
14-Alexandrite
January 25, 2016

thank you!
