Unwanted Witness Line Breaks

  • August 10, 2015
  • 4 replies
  • 3712 views

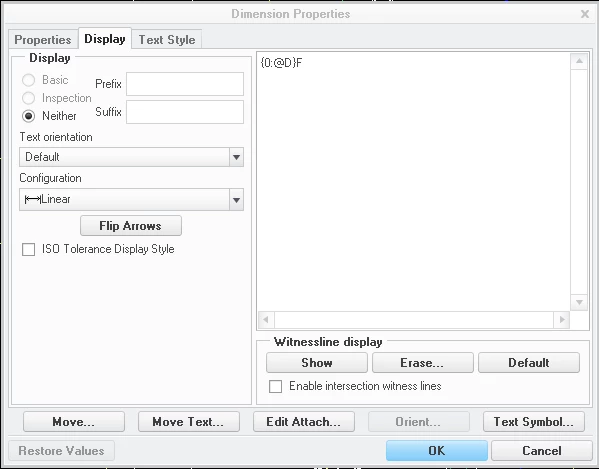

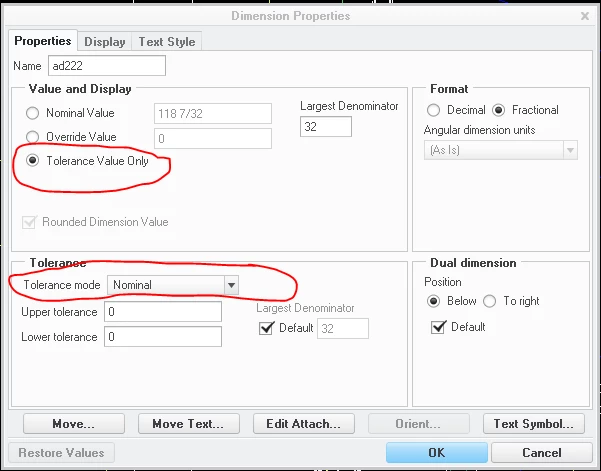

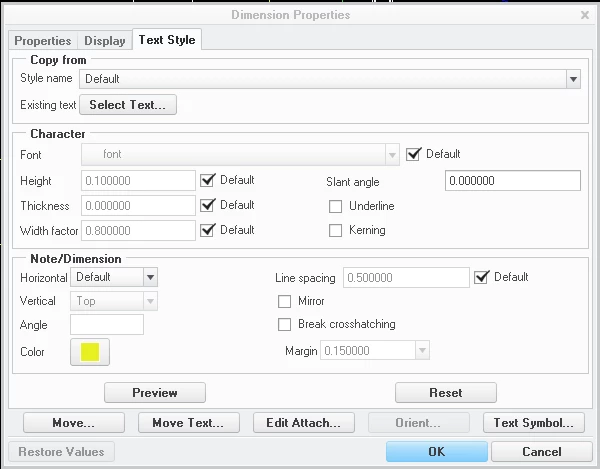

I am getting unwanted breaks on witness lines in Creo's drawing mode.  Not sure why they are occurring. I've tried clearing all breaks but that doesn't appear to work.   I made the dimension value an "F" by selecting "Display Tolerance Value Only" in my settings and by selecting "Tolerance Mode: Nominal".  This issue seems to only affect horizontal dimensions.  Please see attached screen clips for my detailed settings.  Can somebody explain how to fix this? Is there a better way to change a dimension to a letter?

FYI, I am using Creo 2.0.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by JonathanHodgson

I haven't seen the break issue, but as for displaying a (created) dimension as a letter instead of its value: replace the default @D (Dimension value) with @O (Off).  Although your 'tolerance value only' approach works, too...

A slightly more parametric way (depending on what you're doing) is to change the name of the original (shown / model) dimension from e.g. d123 to F, and then replace @D with @S (Symbol).  You can then use and show values of F in a family table.

4 replies

JonathanHodgson13-AquamarineAnswer
13-Aquamarine
August 11, 2015

I haven't seen the break issue, but as for displaying a (created) dimension as a letter instead of its value: replace the default @D (Dimension value) with @O (Off).  Although your 'tolerance value only' approach works, too...

A slightly more parametric way (depending on what you're doing) is to change the name of the original (shown / model) dimension from e.g. d123 to F, and then replace @D with @S (Symbol).  You can then use and show values of F in a family table.

wjamieson1-VisitorAuthor
1-Visitor
August 11, 2015

@O worked right away.  Thanks for your guidance!

mbonka2-Explorer
2-Explorer
August 13, 2015

But be careful with using @O function in drawings. It is overwrite just in drawing!!!

Example:

- 3D model graphics area dimmension D135 = 500mm.

- Drawing space shows D135 and you will overwrite it to 650mm.

- you change dimmension in graphics are (3D model to 700)

- drawing keeps this dimmension overwrited 500mm.

As a result there is 150mm difference between 3D model and its drawing ---> @O fnction in drawings is very dangerous function ---> it´s so easy to forgott about some overwrited dimmension.

Regards

Milan
