Is it possible to reuse simplified representations or style states from a sub assembly inside the main assembly? Without creating it again in the main assembly...


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomU

Sort of. You create a new simplified rep in the upper level assembly and then choose the sub-assembly's already created simplified rep to reuse.

5 replies

TomU23-Emerald IVAnswer
23-Emerald IV
March 12, 2015

Sort of. You create a new simplified rep in the upper level assembly and then choose the sub-assembly's already created simplified rep to reuse.

TomU23-Emerald IV
23-Emerald IV
March 12, 2015

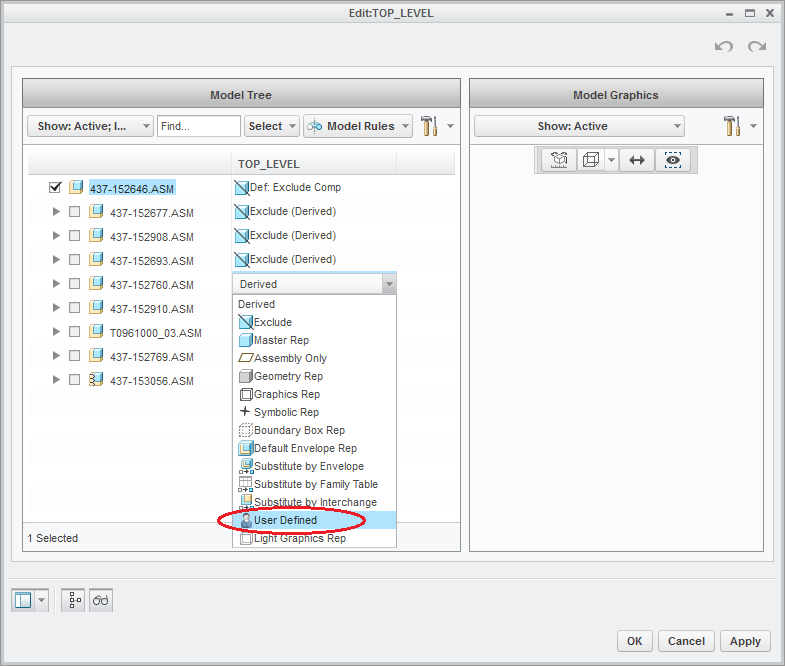

Here's a screenshot:


mhergenhan1-VisitorAuthor
1-Visitor
March 12, 2015

Hi Tom,

many thanks!

I got it.

Is this also possible for style states?

TomU23-Emerald IV
23-Emerald IV
March 12, 2015

Yes, just slightly different. Create the sub-assembly style state. Then, create a new style state in the upper level assembly. Go to the "By Display" tab, select the sub-assembly from the model tree, then select the style state you want to use.
