Views of different instances into same drawing file

  • March 27, 2015
  • 3 replies
  • 1319 views

Hi,

Request you to share some tutorial which I can use for to understand how I am able to insert different view from different instances of family table into a single drawing file.

Thanks and Regards

Ketan


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomU

You should be able to click on the model name at the bottom of the page and switch to a different model. After that, any new views created should be of that selected model.

3 replies

TomU23-Emerald IV
23-Emerald IV
March 27, 2015

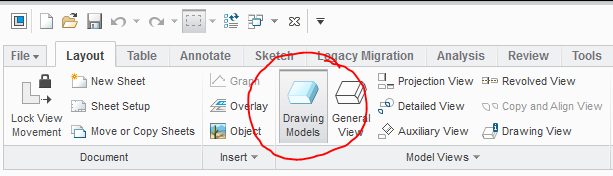

Each instance is treated as a separate part. You have to go to the layout tab and add each instance just like you would add a model.


Whatever model is currently active in the drawing is the one drawing views can be created for.

Ketan_Lalcheta2-ExplorerAuthor
2-Explorer
March 27, 2015

Hi,

Thank you!

I am able to set different instance into second sheet but as soon as I try to add view into it, model is changed to main (first model instead of the instance) instance ..

Regards

Ketan

TomU23-Emerald IVAnswer
23-Emerald IV
March 27, 2015

You should be able to click on the model name at the bottom of the page and switch to a different model. After that, any new views created should be of that selected model.
