Solved
Visual Resultant Direction
- October 8, 2015
- 6 replies
- 2557 views
Hi,
I’m new to PTC Creo Simulate, been using Ansys on my old company. But I wonder if there is some way to visually show the Resultant direction ( I know about Review Total Load ), I have looked but I can’t seem to find something like that.

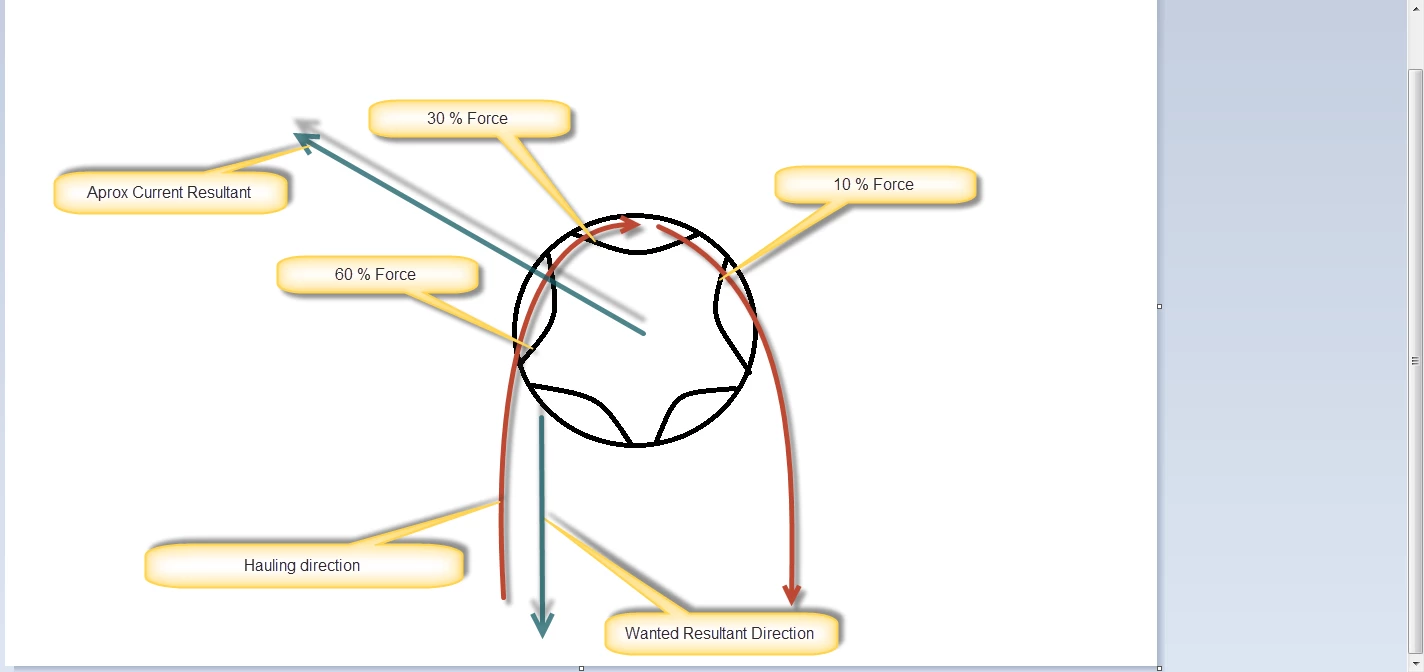

Added some extra information. I’m working on a 5 pocket Chain Wheel, and I have applied forces in as shown in the image, but I need my Resultant to point down, as that is the direction chain is coming in. This does not have to be very accurate. So I was thinking of adding forces to make the Resultant point in - Y Direction.
If anyone has a smarter way to do this, I'm very interested in learning that.
