Why CREO doesn't allow user to edit the dimensions for first time itself?

  • September 24, 2016
  • 11 replies
  • 18162 views

If I want to draw a line of known length.At first I have to construct a line of unknown length and then click the line's dimension to edit it.I think it doubles the work.

    Best answer by TomD.inPDX

    PTC is a huge ship with many captains and only a few engineers.  They chase new dollars, not the little people.  Pro|E is pretty much what it was back in the day, for better or worse.  If you enjoy the high end new development efforts in making your job easier or you now have additional functionality, then you are seeing PTC at work.  If you have core Creo and expect what work now to change, you are asking for a lot.  Those of us who have grown up with Pro|E understand how to work with Pro|E.  Once you know that, all the flavors, from Pro|E, to WF, to Creo, are very similar and certainly familiar.  There is a lot to be said for that.

    11 replies

    R
    RonSt.Pierre12-Amethyst
    12-Amethyst
    September 26, 2016

    It sounds like you are trying to sketch lines in a drawing. - not fun.

    K
    kp-31-VisitorAuthor
    1-Visitor
    September 26, 2016

    But it seems to doubles the processing of the system.

    M
    mender12-Amethyst
    12-Amethyst
    September 26, 2016

    I'd presumed you were talking about Sketcher.  Are you talking about sketching in Drawing?

    M
    MartinHanak24-Ruby III
    24-Ruby III
    September 26, 2016

    Hi,

    in Sketcher mode Creo works as you have described. You cannot change this behavior.

    MH

    T
    TomD.inPDX17-Peridot
    17-Peridot
    September 26, 2016

    When you begin sketching, Creo doesn't know if your initial line is 1" or 20,000 miles.  Imagine having to scale the environment before you get to draw that line.

    Most of my parts are in the "inches" range.  1st feature I sketch is a 1/2" circle.  Zoom to fit and now begin.

    Since sketch elements can be dragged, you could use that option once you see the self-generated dimensions.  But why?

    Drawing sketch tools are simply archaic.  I am not even looking for PTC to correct this in my working lifetime.  It just is, and it just is horrible.

    Don't forget grid-snap.  That might do what you want.  I find sketcher grids to be annoying but drawing grids help.

    Of course, SolidWorks did something interesting: you draw the line... you dimension the line... and the system scales the environment to the line.  Invisible to the user.  Very nice.

    There are a few other niggles with PTCs method.  I've had accuracy errors when using very small numbers in the 1st feature while the extent is around 400 inches.  It would fail for no apparent reason.  But if it was the second feature, no issues.

    K
    kp-31-VisitorAuthor
    1-Visitor
    September 30, 2016

    Why PTC doesn't change this behaviour?

    T
    TomD.inPDX17-PeridotAnswer
    17-Peridot
    September 30, 2016

    PTC is a huge ship with many captains and only a few engineers.  They chase new dollars, not the little people.  Pro|E is pretty much what it was back in the day, for better or worse.  If you enjoy the high end new development efforts in making your job easier or you now have additional functionality, then you are seeing PTC at work.  If you have core Creo and expect what work now to change, you are asking for a lot.  Those of us who have grown up with Pro|E understand how to work with Pro|E.  Once you know that, all the flavors, from Pro|E, to WF, to Creo, are very similar and certainly familiar.  There is a lot to be said for that.

    D
    dgschaefer21-Topaz II
    21-Topaz II
    September 30, 2016

    You are assuming that every user will want to keep the line length dimension.  I rarely draw a sketch of a single line and even then I sometimes want to dimension the ends of the line to other references.  So, automatically entering edit mode for the line length after sketching it would be a waste of time in many circumstances.

    I typically sketch the lines, arcs, etc. that I want, but off-position and not to scale.  I then apply the dimension scheme that I want (ignoring the dims that Creo created) and lastly change the dim values to what I want.

    A
    ArunPLM1-Visitor
    1-Visitor
    November 1, 2018

    Hi,

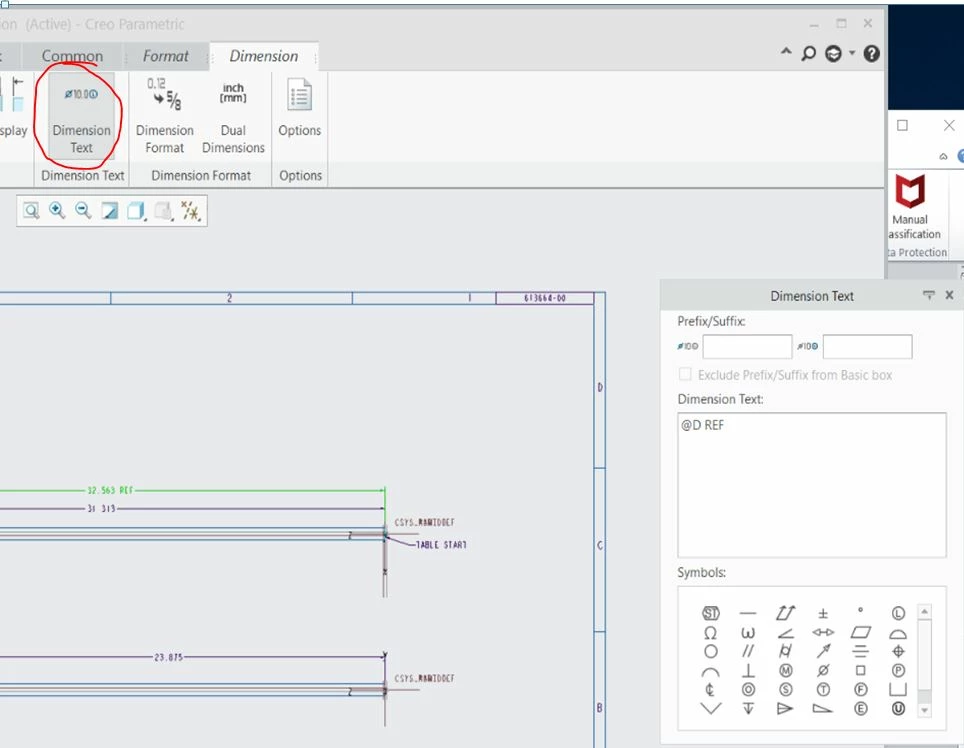

    Sometimes the user can use the 'Dimension Text' tool. Sometimes not.

    The observation is, it changes it behaviour when windows Logoff/Login happens.

    Any comments?
