Why Shaded Curvature Analysis has carried out? What is the physical interpretation of shaded curvature analysis?

  • October 6, 2015
  • 3 replies
  • 2047 views

Why Shaded Curvature Analysis has carried out? What is the physical interpretation of shaded curvature analysis?

=>

Suppose i take one part(Glass) with three case. I have performed shaded curvature analysis in three cases. What is the conclusion?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

MartinHanak24-Ruby III
24-Ruby III
October 6, 2015

Hi,

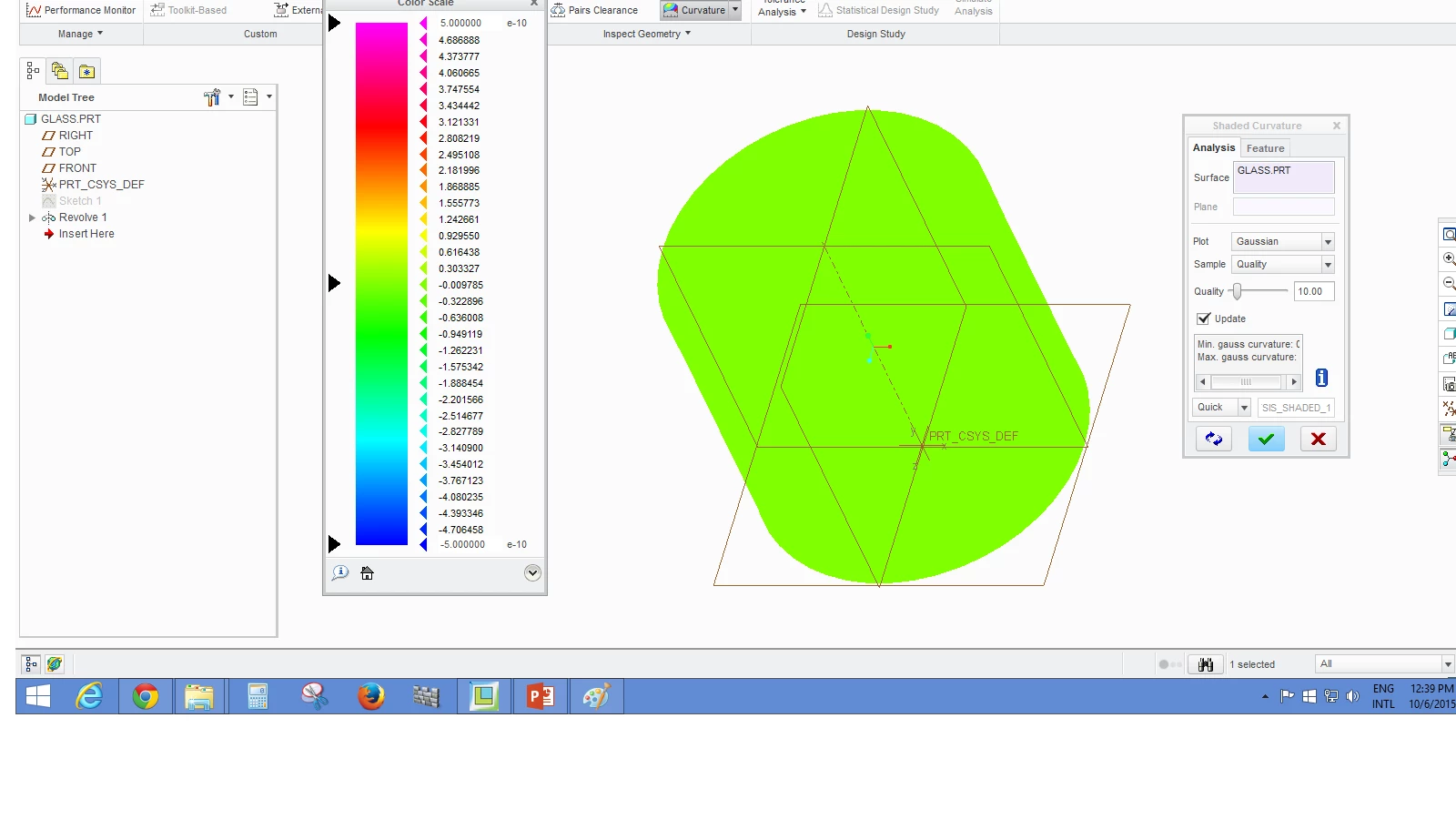

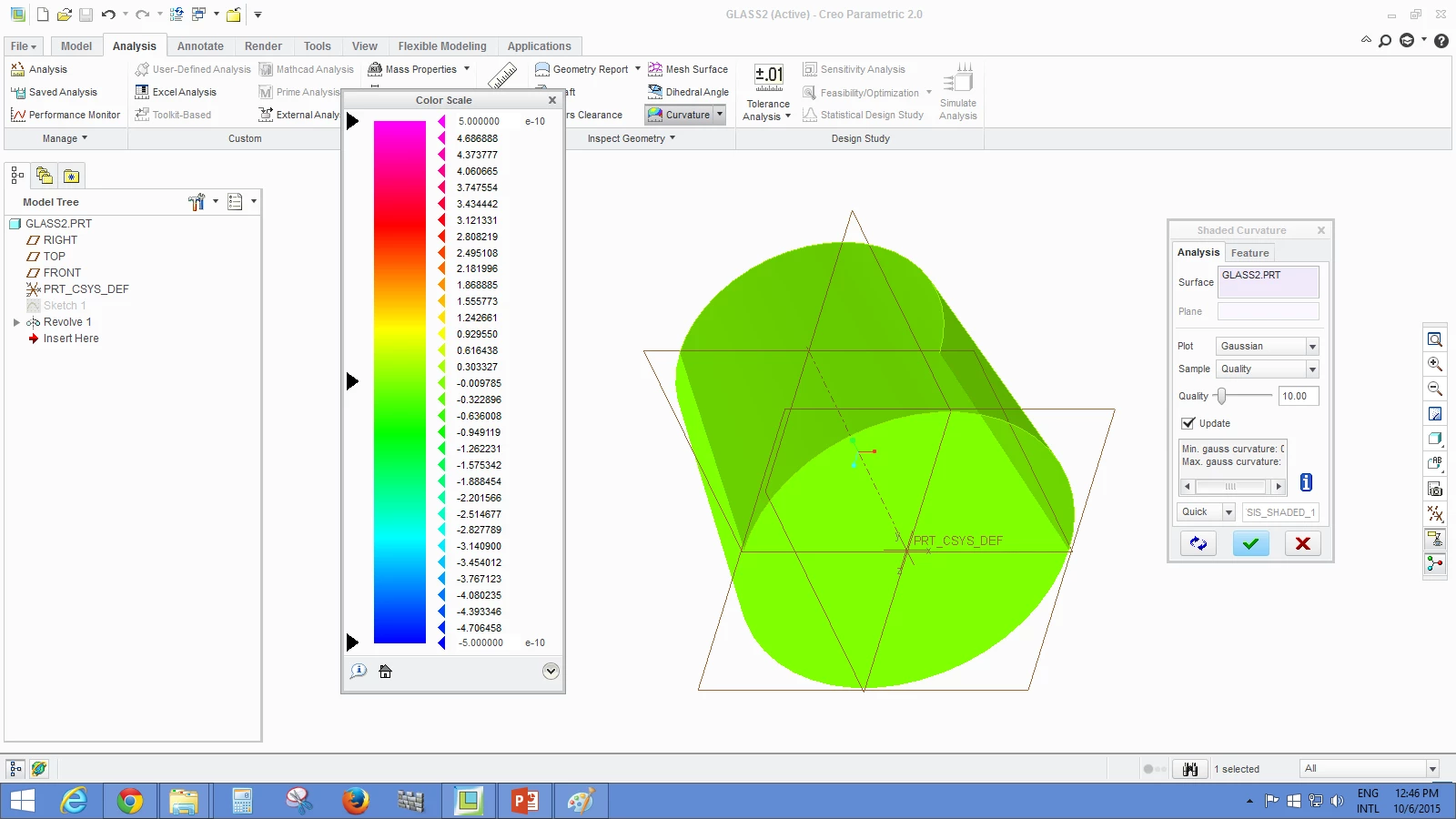

rotational surfaces of all your models are ruled surfaces. Therefore Gaussian curvature (product of min and max curvature) is equal to zero in every surface point.

MH

    vpatel-41-VisitorAuthor
    1-Visitor
    October 7, 2015

    Thank you for your instant reply. (y)

    Constantin15-Moonstone
    15-Moonstone
    October 7, 2015

    You might want to look into the simple 'Curvature' analysis which you can also apply to surfaces.
    Off course it depends on what kind of information you are seeking.
