Create wavy washer in Pro E 4.0

Forum|Forum|13 years ago
March 9, 2013
7 replies
12705 views

Looking to try to create a wavy washer and a washer with radial teeth cut into it? How would I go about doing this?

Thanks. Jon.

T

TomD.inPDX

17-Peridot

This was more challenging that I thought.

I do not have WF4 but I think you will get the idea once I upload the video and write a quick tutorial document to go with it.

As always, the patterning of the radial features was less that simple. Even when I thought I had it, they were not evenly distributed along the surface. That is when I added a properly "fit" surface, the pattern worked fine (and clicked through to selecting the quilt rather than the surface!).

T

TomD.inPDX

17-Peridot

Tutorial: Wave Washers w/ Radial Pattern

V

VladimirPalffy

14-Alexandrite

Hi Jonathan,

You can create curve (circle) and then you can use Curve Pattern.

Here you can find Curve Pattern for everybody or you can use simple Axis Pattern

Regards,

Vladimir

V

VladimirPalffy

14-Alexandrite

Hi Jonathan,

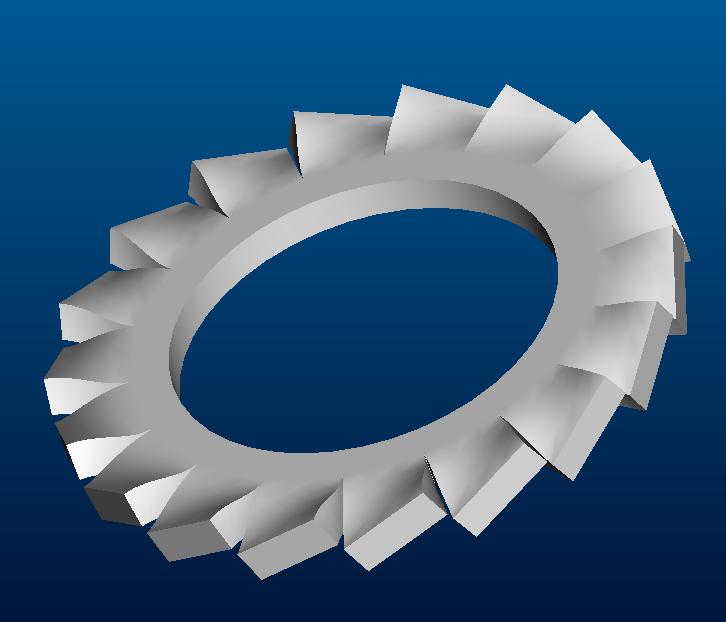

Here is another example: How you can Create your model wavy_washer.prt

Vladimir

T

TomD.inPDX

17-Peridot

Love the washer, Vladimir!

V

VladimirPalffy

14-Alexandrite

You are welcome Antonius

P

ptc-2655104

Author

1-Visitor

Pro E is great software but it took me about 2 minutes to do it in SolidWorks with the 3D sketch mode after I watched a tutorial. I've learned more working with solidworks for the last few days than in a year with ProE. Unfortunately I will prob be making SW my main program and proE as backup. Still have yet to try Creo 2.0 but if it doesn't have 3D sketch mode I don't see the point. I understand the wavy washer is very simple process in Creo 2.0.

P

ptc-2655104

Author

1-Visitor

the toothed washer above is not exactly what I meant. Think of a circular washe faceplast with pointed geared teeth cut into the face tappering toward the center.

T

TomD.inPDX

17-Peridot

Like a bellville washer?

Patriot_1776

22-Sapphire II

Is this what you wanted? This is an OLD part I did, back before 2000, on probably V17 or so.

1_fs_wave_wshr-prt-1.zip

P

ptc-2655104

Author

1-Visitor

That would be the wavy washer, I'd typically be looking for more waves in it though. Great file, even with the tree I can't figure it out. Maybe you could explain it a bit more.

V

VladimirPalffy

14-Alexandrite

Jonathan - I think that you are looking for:

"Looking to try to create a wavy washer and a washer with radial teeth cut into it?..."

If you need to create only "waves" - it is easy... yuo can create main circled curve and then Variable Section Sweep feature with relations (trajpar)

Here is some exaple - power of Sweep feature:

http://communities.ptc.com/blogs/vpalffy/2012/10/03/wires-cables-and-coils-with-creo-parametric-20

http://communities.ptc.com/blogs/vpalffy/2011/11/27/sweep-and-trajpar

Note: Frank, your old model is fine too

Regards,

Vladimir

Patriot_1776

22-Sapphire II

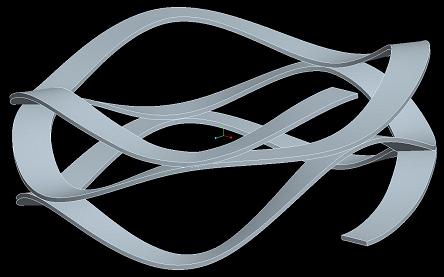

How about this multi-level one?


K

knorman

1-Visitor

Curse you and your crazy geometry Frank! Every time you post something, my personal time evaporates. I just figured out how to make single trajectories with rotational reversals... and then you show this!
