I'm new to Creo 2.0 (From 2001) and I need to measure between two planes.
So far, I've had no luck using Measure Distance. Can anyone help ?

TIA

    11 replies

    D
    dgschaefer21-Topaz II
    21-Topaz II
    September 28, 2012
    The thing that may be tripping you up is that you must hold the control
    key to pick more than one item. If you just keep picking, the first
    thing is deselected when you pick the second.



    I have to add that the Creo2 measure tool is fabulous, one of the best
    things about it. In fact, it's noteworthy in how PTC listened to the
    community. We had a big discussion here about how they had screwed it
    up (in WF5?) and the tool in Creo 2 is the fruit of PTC paying attention
    to that. Only it I'd pick is there is still no way to toggle the
    measurement between the near and far tangents of curved items.



    The only thing I miss is the idea of picking a start point and being
    able to repeatedly pick new end points. I felt that was very efficient.




    Oh, and I'd suggest you not use Measure -> Distance and just click
    Measure. Then when pick two items, you get a bunch of information, not
    just distance. It's quite nice.



    --
    H
    hspaulding1-Visitor
    1-Visitor
    September 28, 2012

    Pick the ANALYSIS tab / MEASURE / DISTANCE/ change the selector to SURFACE / Pick 1st surface / hold down the CTRL button / Pick 2nd surface.


    What I don't like about this new set up is if you want to measure the distance between the 1st surface and a 3rd surface, you can't just pick the 3rd surface to get the distance like you could in Wildfire 4. You have to start all over, 1st surface then 3rd surface.

    M
    MichaelMontagna1-Visitor
    1-Visitor
    September 28, 2012

    You can also select the second surface again to “deselect” it and then you can select the 3<sup>rd</sup> surface. The first surface stays in memory. Keep the control key down during this process.


    Same difference though.


    Michael Montagna
    Engineering Manager
    Mier Tool Company
    1678 Clark Street Road
    Auburn, NY 13021
    E-mail: mmontagna@miertool.com
    Phone: 315-253-3412 ext 222
    Cell: 315-246-9029
    Fax: 315-255-1639
    Check us out at:
    http://miertool.com

    In Reply to donald schelling:


    I'm new to Creo 2.0 (From 2001) and I need to measure between two planes.
    So far, I've had no luck using Measure Distance. Can anyone help ?

    TIA
    StephenW
    StephenW23-Emerald III
    23-Emerald III
    September 28, 2012
    That' a good tip since sometimes it "hard" to select the desired surface, it could be a nice timesaver.

    Steve
    S
    sshannon1-Visitor
    1-Visitor
    September 28, 2012

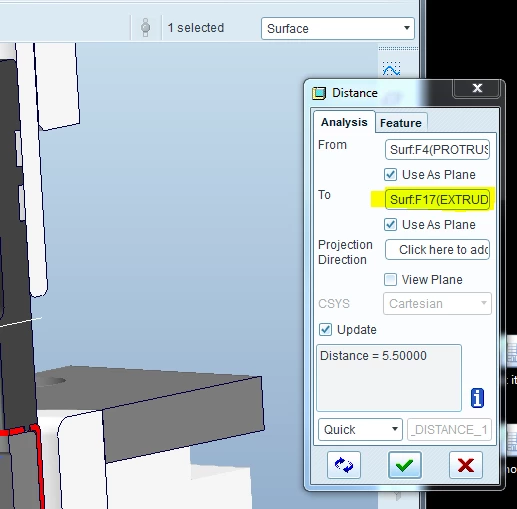

    That's not necessarily accurate. To pick another surface as the 2nd object, simply click on the "To" box (highlighted below) in the GUI window then pick the surface.
    No need to start over.

    [cid:image001.png@01CD9D5F.D12D3FF0]

    Regards, SMS

    Steve Shannon
    Tooling Engineer
    trans-matic
    300 East 48th St.
    Holland, MI 49423
    phone (616) 820-2427
    fax (616) 820-2488
    www.transmatic.com
    B
    bfrandsen10-Marble
    10-Marble
    September 28, 2012
    Doug,
    The repeatedly pick new items is available in Creo 2.0, but it is implement a little backwards, so to say.

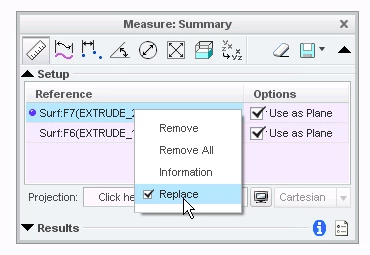

    One of the users here discovered, that after selecting two references you can RMB on the reference you will change and select Replace from the menu. Now every selection will replace this reference and keep the other.
    [cid:image001.png@01CD9D92.A769B080]
    The benefit to previous versions are that you can pick the first two references in any order and decide which to replace or swap the replacement as you go.

    Another trick is to press and hold Alt while selecting to by-pass the smart filter. It enables you to pick an edge directly instead of drilling down into the model > feature > surface > edge.

    /Bjarne
    H
    hspaulding1-Visitor
    1-Visitor
    September 28, 2012
    Good to know. I learned something today. Thanks. Can I go home now?

    --
    Herb Spaulding
    Product Engineer
    Miller Industries Towing Equipment, Inc.
    8503 Hilltop Drive
    Ooltewah, Tn. 37363
    (423) 238-4171 x1236
    herb@millerind.com<">mailto:herb@millerind.com>
    I
    ira.winston1-Visitor
    1-Visitor
    September 28, 2012
    Don, Everyone; The link to the sample chapter listedon our Creo Parametric Updatepromo pageis the Model Analysis chapter of the course and it contains a lot of info on the new Measure function in Creo 2. It describes how to measure to the near and far extents of a arc instead of just to the center as well as other functionality.
    D
    dgschaefer21-Topaz II
    21-Topaz II
    September 28, 2012
    Steve,



    The dialog shown is WF5 and earlier, the Creo 2 measure tool does not
    have separate 'From' & 'To' fields.



    --
    S
    schelld1-VisitorAuthor
    1-Visitor
    September 28, 2012
    Worked perfectly. I missed the control key.

    Thanks to all !
