How to assemble simplified reps into master rep

  • May 14, 2015
  • 4 replies
  • 8761 views

I have models of cloth covers that need to have different edge profiles for different assemblies. Is the a way to assemble it into an assembly model so that the needed simplified rep is shown when it is assembled into the next level without having to make a simplified rep at the next level also?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by StephenW

    The master rep is the master rep, you can't define it differently. It includes everything.

    4 replies

    StephenW
    StephenW23-Emerald IIIAnswer
    23-Emerald III
    May 14, 2015

    The master rep is the master rep, you can't define it differently. It includes everything.

    MarkBohannon1-Visitor
    1-Visitor
    May 15, 2015

    Stephen is correct. The master rep is the master rep and it cannot be changed. However you can use a couple of other techniques.

    1) Create a default rep in the higher level assembly. If a default rep is found in the model, it will open to it when you open the model.

    2) Leverage the lower level reps in the higher assembly by using a User Defined rep (see How to create new simplified rep in toplevel assembly using reps allready created in lower level subassemblies Creo 2 - …)

    kdirth
    kdirth21-Topaz IAuthor
    21-Topaz I
    May 15, 2015

    Thanks for the confirmation. I thought that was the case. Would be nice though if a Simplified Rep could be assigned when assembling the component.

    I have been shown another way to achieve the desired result. Using Flexability, I can suppress features I do not what as I assemble the component.

    Thanks

    There is always more to learn.
      StephenW
      StephenW23-Emerald III
      23-Emerald III
      May 15, 2015

      You can assemble a specific rep in an assembly, but if you don't have a rep in that main assembly, you won't be able to save it in that state (sounds confusing).

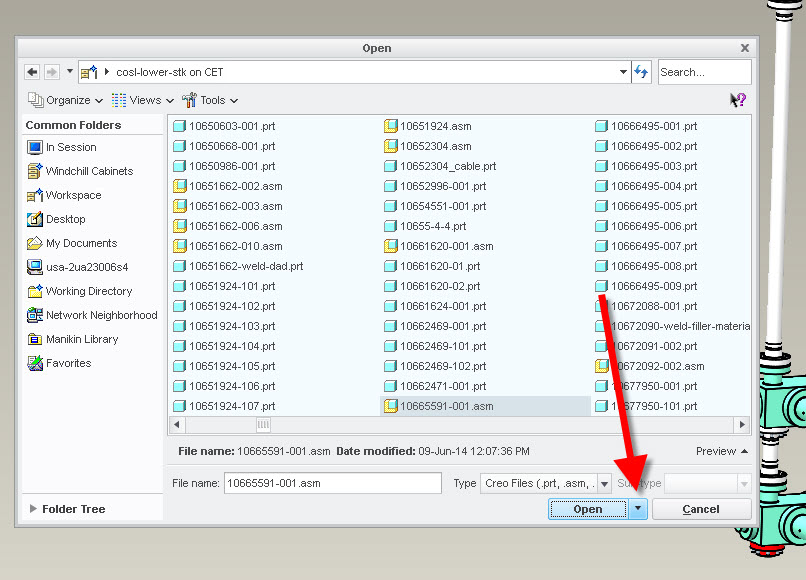

      When you go to assemble a sub-assembly with a rep in it, in the open dialog box, push the little down arrow next to open, then select OPEN REPRESENTATION. That allows you to choose the simplified rep you want to assemble.

      Just remember to save your top level, user defined rep. (not master rep).
